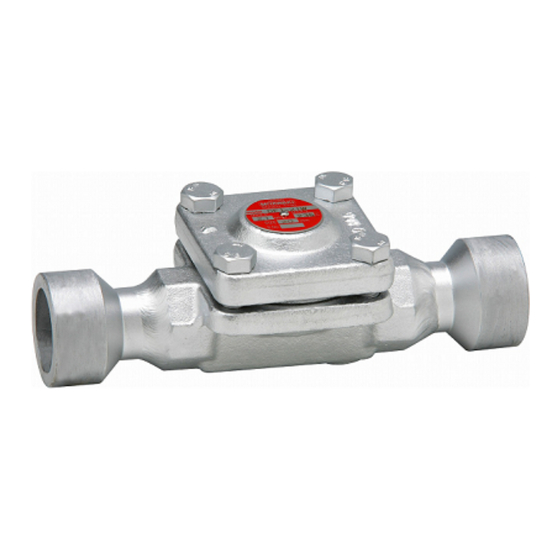

MIYAWAKI DF1 Operating Manual

Balanced pressure thermostatic steam trap
Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATING MANUAL
FOR
DIAFLAMG STEAM TRAP
Balanced Pressure Thermostatic Steam Trap
DF1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF1 and is the answer not in the manual?

Questions and answers

Related Manuals for MIYAWAKI DF1

Summary of Contents for MIYAWAKI DF1

  • Page 1 OPERATING MANUAL DIAFLAMG STEAM TRAP Balanced Pressure Thermostatic Steam Trap...
  • Page 2 SAFETY The following warnings and cautions are shown at appropriate places in this manual. Failure to observe this type of precaution may lead to serious WARNING injury or death. Failure to follow this type of precaution can lead to injury or damage to equipment and CAUTION property.
  • Page 3 S No. on the name plate of our product indicates a manufacturing date. Indicating method of S No. S.No. □□□□ indicates a day indicates a month indicates a year Example of indicating a year 05 → 2005 15 → 2015 Method of indicating a month Mark Month...

  • Page 4: Table Of Contents

    CONTENTS 1．INTRODUCTION ･･････････････････････････････････ 2．DIMENSIONS AND SPECIFICATIONS ････ 3．INSTALLATIONS ･････････････････････････････････ 4．TROUBLE SHOOTING ･･････････････････････････ 5．MAINTENANCE ･･･････････････････････････････････ 6．CONSTRUCTION ･････････････････････････････････ 7．WARRANTY ････････････ ･･･････････････････ ････････････ Guidance for reading special product name ★ ･･･...

  • Page 5: 1．Introduction

    1. INTRODUCTION 1. INTRODUCTION Ball Float Steam Trap Model DF1-21 is equipped with a membrane capsule(“Dia-Thermo”) Ball Float Steam Trap Model DF1-21 is equipped with a membrane capsule(“Dia-Thermo”) Balanced pressure thermostatic steam trap Model DF1-21 is equipped with a membrane and can be used up-to an operating pressure of 2.1 MPa.

  • Page 6: 3．Installations

    3. INSTALLATIONS 1) Install the trap according to the direction of the arrow on the body which indicates the direction of flow. 2) This steam trap can be installed either horizontally and vertically 3) Make an adequate incline (about 1 degree) in the direction of the flow. 4) Do not thermal insulate the trap itself.
  • Page 7 4. TROUBLESHOOTING Sympton Cause Remedy Intermittent A.Normal. Operation Continuous discharge A.Normal. of condensate with flash steam Steam is leaking or A.Over pressure. A.Check operating conditions blowing through Reduce the inlet pressure or change to another trap with higher pressure capability. B.Scales etc.

  • Page 8: 5．Maintenance

    5. MAINTENANCE Bolt 1. Untightten the Bolt(9) of the Cover(2)and remove the Cover(2). Cover Now The “Dia-Thermo”- Element(3) can be taken out. 2. Untighten the Valve Seat(4) and unscrew it.Take the Stop Spring Valve Seat(4), the Seeat Gasket(7),and the Screen(6) out.

  • Page 9: 6．Construction

    6. CONSTRUCTION (Flanged end) (Screwed end) (Socket Weld end) 1.Body 2.Cover 3.Thermo Element(Dia-Thermo) 4.Valve Seat 5.Stop Spring 6.Screen 7.Gasket 8.Gasket 9.Bolt 10.Name Plate 11.Rivet 12.Flange(*For only Flanged connection) 13.Pipe(*For only Flanged connection) 12.Coupling(*For only Socket Weld connection) - 5 -...

  • Page 10: 7．Warranty

    7. WARRANTY 7. WARRANTY 7.1 Warranty period 7.1 Warranty period The warranty period shall last 12 months from the date of product delivery. The warranty period is 18 months after shipment or 12 months after installation, The warranty period shall last 12 months from the date of product delivery. whichever occurs first.

  • Page 11: Guidance For Reading Special Product Name

    ★ Guidance for reading special product name ○○○-○○-□ Special symbol: symbol apply only to special product (Please refer to table 1 for details) 1 suffix English letter after “-“. Model symbol: Product model number Table 1 Symbol description Suffix Special contents Approved high-pressure gas trap Blow valve attached &...
  • Page 12 MIYAWAKI INC.  Some special specifications of the product you have, may found to be different from the ones in the user's manual. If you have any question, please contact MIYAWAKI, our local authorized agent, or the place where you purchased.
