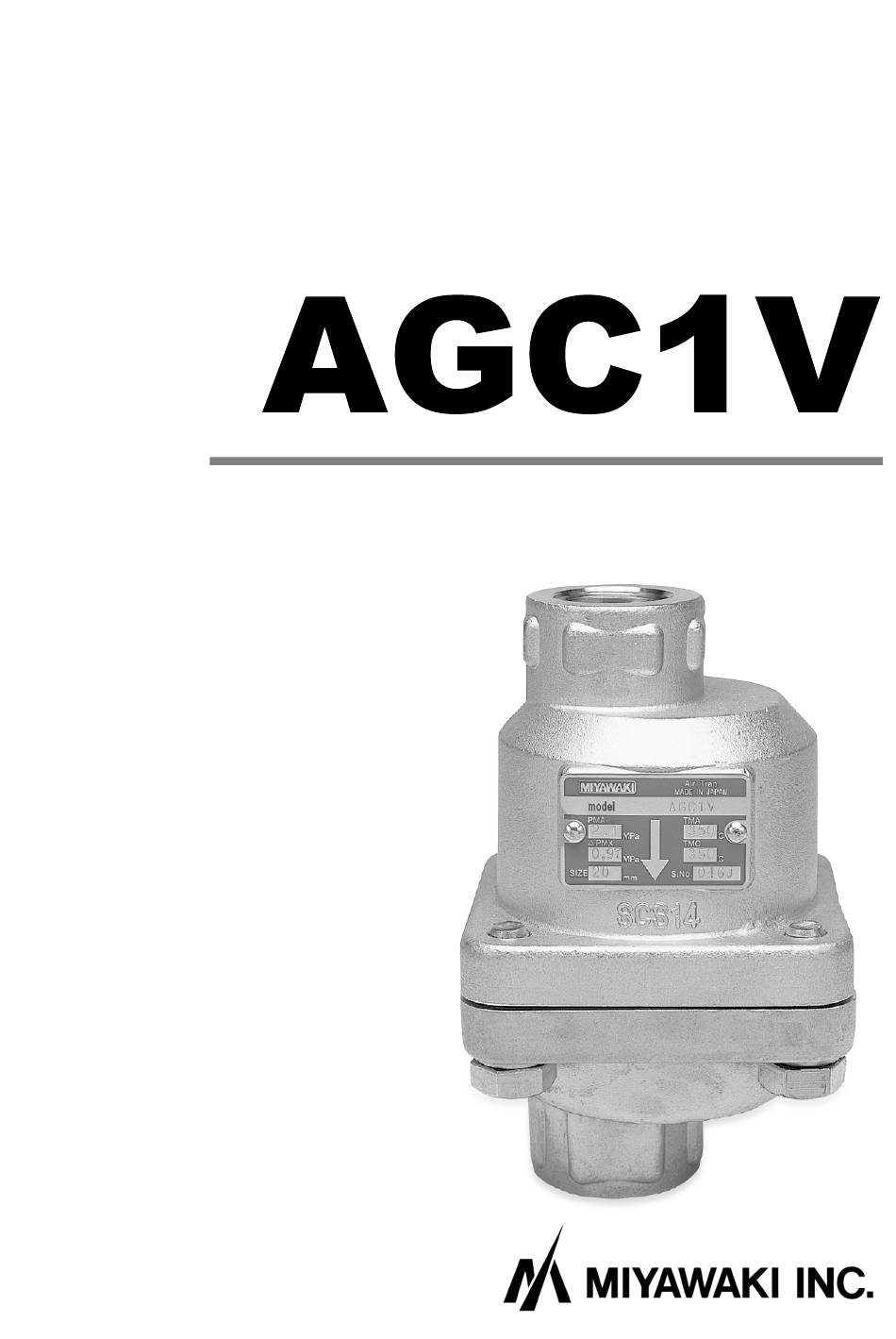

- Page 1 LEVER FREE BALL FLOAT AIR DRAIN TRAP USER'S MANUAL...
-
Page 2: Table Of Contents

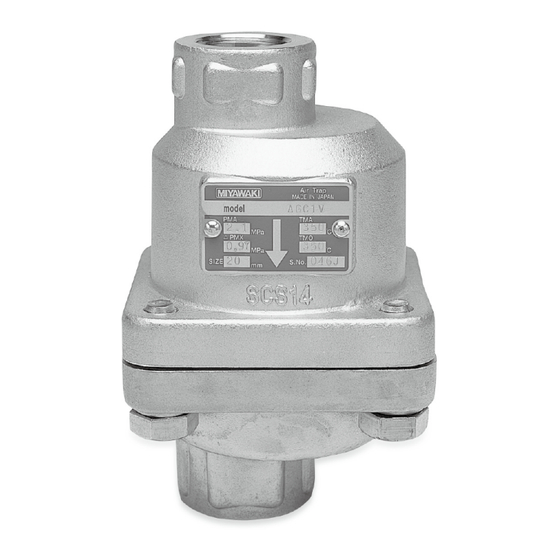

SAFETY GUIDE The model AGC1V is a lever free ball float air drain trap designed for continuous discharge of condensate from air piping, receiver tanks, gas and compressed air system. In order to get maximum benefit from this product, be sure to read this manual before installing it. -
Page 3: Specifications And Markings
SPECIFICATIONS AND MARKINGS WARNING Be sure not to use this product at higher pressures than the specified maximum allowable pressure (PMA) or at temperatures higher than the specified maximum allowable temperature (TMA). The following items are displayed on the name label or the side of the product. Check each item to avoid misuse of the product. -
Page 4: Construction Details
CONSTRUCTION DETAILS (10) (13) Body Screen Bottom Cover Cover Gasket Float 10. Bolt Valve Seat 13. Spring Pin Valve Seat Gasket... -
Page 5: Installation
1) Remove the dustproof seals covering both connections. 2) Check the flow direction indicated on the side of the body. 3) When installing an AGC1V, make sure to keep the flow direction parallel to a plumb line (basically pointing up or down). -
Page 6: Maintenance
MAINTENANCE CAUTION When replacing parts, make sure the replacement parts are supplied by Miyawaki. The performance of drain traps deteriorates gradually over time due to wear, corrosion or dirt accumulating around the valve seat. To keep air (gas) control systems and equipment working well, periodic maintenance of drain traps is essential. - Page 7 (12) (11) Body Bottom Cover Ball Float Valve Seat Valve Seat Gasket Screen Cover Gasket 10. Bolt 11. Name Plate 12. Rivet 13. Spring Pin (13) (10)
-
Page 8: Troubleshooting
TROUBLESHOOTING Problem Possible cause Solution Air leaks or blows through. Dirt is stuck around the valve Clean the valve and the valve or valve seat. seat. Damage, erosion or corrosion Replace the valve seat. of the valve seat. The valve seat is loose. Tighten the valve seat. -
Page 9: Warranty
WARRANTY 6.1 Warranty period The warranty period is 18 months after shipment or 12 months after installation, whichever occurs first. 6.2 Details of the warranty If the product stops working correctly within the warranty period, we will repair or replace the product free of charge if the cause of the trouble is not one of the following items. -
Page 10: Serial Number（S. No.）Designation
1 7 1 1 → Jan.1, 2017 2 9 X M → Oct. 21, 2029 ●For 9-digit display S.No. □□□□□□□□□ MIYAWAKI identification number Represents the month. Represents the year. (last two digits of the year according to the Western calendar) Example of serial number designation 1 7 1 1 2 C 0 2 0 →... -
Page 11: Guidance For Reading Special Product Name
GUIDANCE FOR READING SPECIAL PRODUCT NAME 〇〇〇-○○-□ Special symbol: Symbol apply only to special product (Please refer to table 1 for details) English letter after “-“ Model symbol: Product model number Table 1 Symbol description Suffix Special contents Trap for high-pressure gas installed property (only for Gas Trap) Blow valve attached Change of gasket Special face to face dimension... - Page 12 MIYAWAKI INC. Some special specifications of the product you have, may found to be different from the ones in the user's manual. If you have any question, please contact MIYAWAKI, our local authorized agent, or the place where you purchased.
- Page 13 MIYAWAKI GmbH Birnbaumsmühle 65, 15234 Frankfurt (Oder), Germany Tel: +49-335-4007-0097 www.miyawaki.de e-mail: info@miyawaki.de China Importer and Authorized representative: MIYAWAKI WEST Co., Ltd Room 1705, No.1, Building,No.311, Yanxin Road, Huishan Economic Development Zone, Wuxi, Jiangsu, China Tel: +86-510-8359-5125 www.miyawaki-inc.com.cn e-mail: mywkwest@miyawaki-inc.com.cn...
