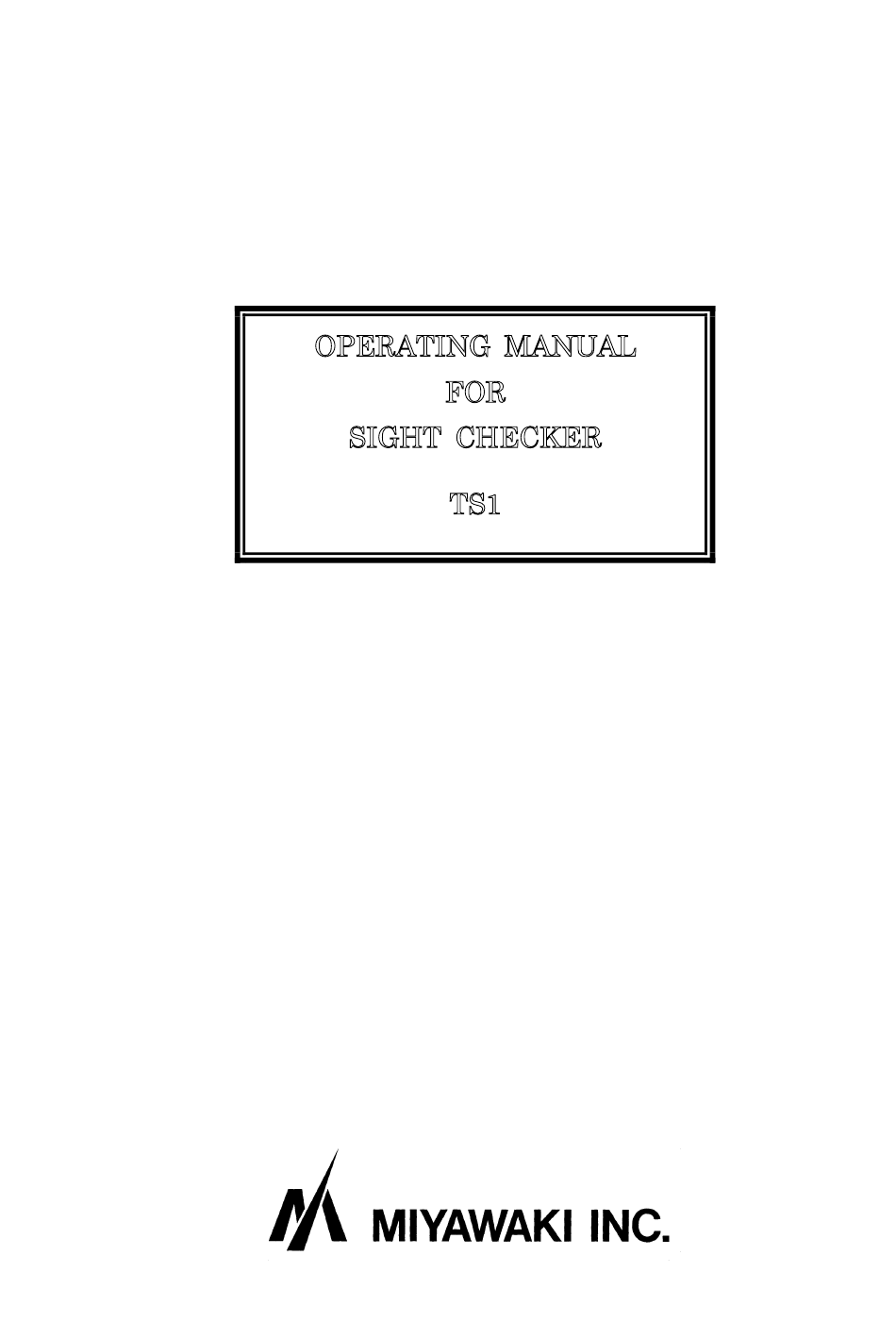

- Page 1 OPERATING MANUAL SIGHT CHECKER...
- Page 2 SAFETY The following warnings and cautions are shown at appropriate places in this manual. Failure to observe this type of precaution may lead to serious WARNING injury or death. Failure to follow this type of precaution can lead to injury or damage to equipment and CAUTION property.
- Page 3 S No. on the name plate of our product indicates a manufacturing date. Indicating method of S No. S.No. □□□□ indicates a day indicates a month indicates a year Example of indicating a year 05 → 2005 15 → 2015 Method of indicating a month Mark Month...
-
Page 4: Table Of Contents
CONTENTS 1．INTRODUCTION ･･･････････････････････････････････ 2．DIMENSIONS AND SPECIFICATIONS ･････ 3．INSTALLATIONS ･･･････････････････････････････････ 4．MAINTENANCE ････････････････････････････････････ 5．CONSTRUCTION ･･････････････････････････････････ 6．WARRANTY ･････････････････････････････････････････ ★ Guidance for reading special product name ・ ・ ・ ・... -
Page 5: 1．Introduction

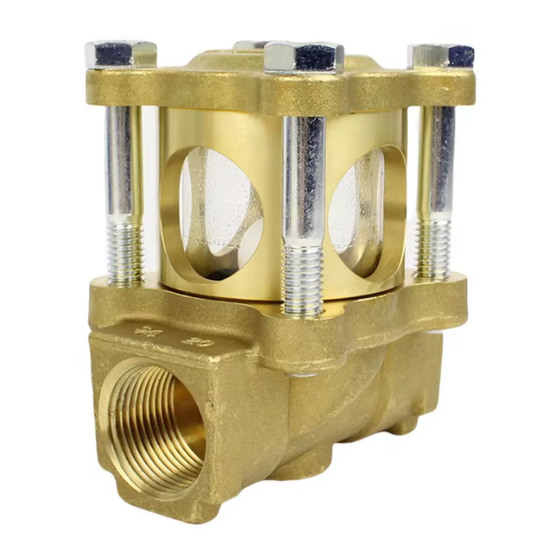

1. INTRODUCTION Sight Checker Model TS1 is sight glass and check valve combined for steam, water and air. 2. DIMENSIONS AND SPECIFICATIONS Size Maximum Material Dimensions Operating Weight Model No. Connection Pressure Temperature (mm) (kg) (inch) (MPa) Body L H1 H2 W ℃(°F) -
Page 6: 3．Installations
3. INSTALLATIONS 1)Sight Checker Model TS1 can only be installed horizontally. 2)Please pipe according to the arrow forged on inlet. 3)When use after steam trap as far from the steam trap as possible to avoid influence of the trap. 4)The Glass Tube is consumables. Please replace it once a year or when thickness... -
Page 7: 4．Maintenance
4. MAINTENANCE When disassembling a hot Sight Glass, be sure to release the pressure inside to atmospheric pressure, and cool the Sight Glass ！ before the work. A. Replace of Glass Tube and/or Teflon Ball. 7.Bolt 1) Unscrew Bolt(7), Cover(2), Protector (3), Glass Tube(4) and O-Ring(6) will come 2.Cover apart by hand. -
Page 8: 5．Construction
5. CONSTRUCTION 1.Body 2.Cover 3.Protector 4.Glass Tube 5.Ball Sight Glass 6.O-Ring 7.Bolt 8.Gasket 9.Gasket - 4 -... -
Page 9: 6．Warranty
6. WARRANTY 6. WARRANTY 6.1 Warranty period 6.1 Warranty period The warranty period shall last 12 months from the date of product delivery. The warranty period is 18 months after shipment or 12 months after installation, whichever occurs first. The warranty period shall last 12 months from the date of product delivery. 6.2 Details of the warranty 6.2 Details of the warranty If the product stops working correctly within the warranty period, we will repair or... - Page 10 ★ Guidance for reading special product name ○○○-○○-□ Special symbol: symbol apply only to special product (Please refer to table 1 for details) 1 suffix English letter after “-“. Model symbol: Product model number Table 1 Symbol description Suffix Special contents Approved high-pressure gas trap Blow valve attached &...
- Page 11 MIYAWAKI INC. Some special specifications of the product you have, may found to be different from the ones in the user's manual. If you have any question, please contact MIYAWAKI, our local authorized agent, or the place where you purchased.
- Page 12 INTERNATIONAL SALES DEPT. 2-1-30, Tagawakita, Yodogawa-ku, Osaka, 532-0021, Japan Tel: +81-6-6302-5549 www.miyawaki.net e-mail: export@miyawaki-inc.co.jp EU Importer and Authorized representative: MIYAWAKI GmbH Birnbaumsmühle 65, 15234 Frankfurt (Oder), Germany Tel: +49-335-4007-0097 www.miyawaki.net e-mail: info@miyawaki.de China Importer and Authorized representative: MIYAWAKI WEST Co.,ltd Room 1705, No.1, Building,No.311, Yanxin Road, Huishan Economic Development Zone,...
