- Page 1 Portable Power Bank User Manual Please read this manual carefully before use and keep it for future reference.
- Page 3 Thank You! Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions for both indoor and outdoor use while delivering an exceptional eco-friendly experience for our homes and our world.
- Page 4 The contents of this manual are subject to change without notice. Please get the latest version from: https://www.bluettipower.com/pages/user-guides If you have any questions or concerns about this manual, please contact BLUETTI support for further assistance. SHENZHEN POWEROAK NEWENER CO., LTD.
-
Page 5: Table Of Contents
Contents Safety Instructions General Safety Storage and Usage What’s In The Box Product Overview LCD Screen Operations Powering On/Off Charging Discharging Set Battery Protection Mode Specifications Abbreviations... -
Page 6: Safety Instructions
• Unauthorized disassembly, alteration of the equipment or modification of the software code is not allowed. BLUETTI shall not be liable for the following circumstances: • Equipment damage caused by force majeure, such as earthquake, fire, storm, flood, mudslide, etc. -
Page 7: Storage And Usage
2)Charging within 48 hours. 3)Battery should be kept at an ambient temperature of 5 C to 35 C for 24 hours before charging. BLUETTI shall not be liable for any equipment damage caused by the violation of above instructions. JUST POWER ON... -
Page 8: What's In The Box
2. What’s In The Box Standard Packaging Item Picture Qty. Portable Power Bank DC 12V/5A Power Cable (Ⅰ) DC 12V/5A Power Cable (Ⅱ) DC 24V/4A Power Cable DC 24V/4A Power Cable DC 24V/4A Power Cable Connector for HP (Connecting with together to power AirSense 10) Connecting Adaptor... - Page 9 Standard Packaging Item Picture Qty. AC Adaptor Storage Bag Portable Power Station User Manual Please read this manual carefully before use and keep it for future reference. User Manual JUST POWER ON...
-
Page 10: Product Overview

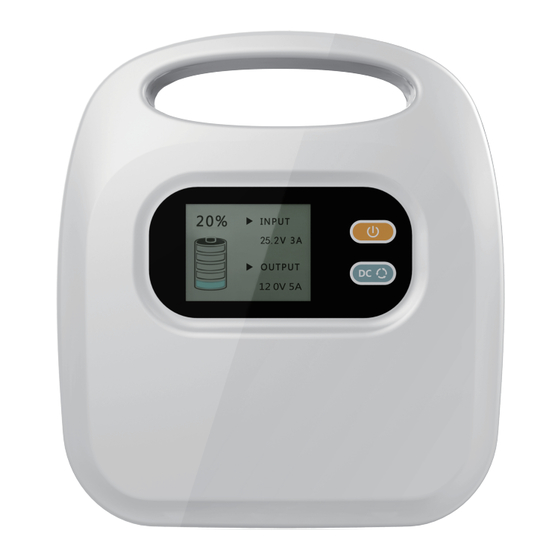

3. Product Overview X30 is a DC portable power bank with an internal integrated large capacity battery pack. With external adapter charging, LCD display, USB-A and 12V/15V/24V DC output, it is suitable for CPAP power supply and mobile phone charging. Refer to 6. Specifications for more details of X30. -
Page 11: Lcd Screen
4. LCD Screen The LCD screen is lit when X30 is powered on. If X30 is powered off, press and hold the power button for 3 seconds to turn it on. The display is shown in Figure 4-1. Figure 4-1 LCD Screen... -
Page 12: Operations
The LCD screen will be turned off and the buzzer will sound for 3 seconds. 5.2 Charging X30 can only be charged via the AC adaptor. Connect one end of the adaptor to the charging port of X30, and the other end to a wall outlet. As shown in the figure below. 5.3 Discharging The DC outputs of X30 include USB-A, DC 24V, DC 15V and DC 12V. -
Page 13: Set Battery Protection Mode
(1) Connect your device to the matched DC port of X30. (2) The device is identified by X30, and the corresponding icon flashes on the LCD screen. (3) Press the DC button, the icon stops flashing and the power output of X30 is enabled. Note: •... -
Page 14: Specifications
6. Specifications Item Specification General Battery capacity 297Wh Battery cell Ternary Lithium Net weight About 1.8 kg Dimensions 202mm×221mm×62mm Charging temperature 0℃～40℃ Discharging temperature -20℃～+40℃ Storage temperature -20℃～+40℃ Working humidity 5%～95% DC Output DC5525 12V/5A DC5525 15V/4A DC output ports DC5525 24V/4A 5V/2.5A USB-A*1... - Page 15 Warranty Card Manufacture Date Sale Date File No. Manufacturer Warranty Instructions 1. 12-months warranty 2. After-Sale-Service mailbox：service@ bluettipower.com 3. Following situations will go against the warranty terms: A. Any problems, malfunction or damages due to incorrect using methods or caused by unauthorized disassembly or repair. B.
- Page 16 Cer t ifi cate Inspector: Q C : P/N:17.0303.0590-03A3...
