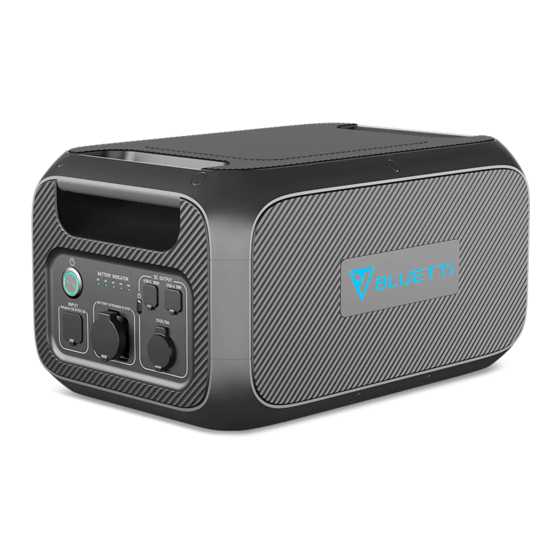

B230 Portable Power Station
Please read this manual before use and follow its guidance. Keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bluetti B230

Summary of Contents for Bluetti B230

  • Page 1 B230 Portable Power Station Please read this manual before use and follow its guidance. Keep this manual for future reference.
  • Page 2 User Manual Please read this manual before use and follow its guidance. Keep this manual for future reference.

  • Page 3: Table Of Contents

    04.BLUETTI APP ........02 05.IN THE BOX ........03 06.LET`S GET STARTED ......05 07.FEATURES ........05 08.RECHARGE ........06 09.AC200MAX + B230 EXTRA BATTERY ..08 10.TECHNICAL SPECIFICATIONS ....09 11.FAQ (Frequently Asked Questions) ... 10 12.DECLARATION ........10 13.FCC WARNING ........10...

  • Page 4: Brief Introduction

    ● DO NOT move the unit while operating as vibrations and sudden impacts may lead to poor connections to the hardware inside. ● Warning: DO NOT insert foreign objects into any ports of the B230. Please operate it carefully and keep children away from it.

  • Page 5: Bluetti App

    We are not liable for damage caused by third- party equipment and may render your warranty invalid. 4.BLUETTI APP With BLUETTI App, the remaining capacity of B230 can be viewed via Bluetooth or on the touchscreen of AC200MAX when B230 has been connected to AC200MAX already.

  • Page 6: In The Box

    Standard Accessories Category Quantity B230 Battery Module B230 Portable Power Station Battery Expansion Cable(P090A) For battery expansion, connect B230 with AC200MAX. B230 Portable Power Station B230 Portable Power Station User Manual Please read the manual before use and follow its guidance, keep this manual for future reference.
  • Page 7 Cigarette Lighter Port to DC5521 Input Cable (Support devices with DC5521 input port such as router, camera, laptop etc) P090D-7909 Connect B230/B300 with EB120, EB150, EB180, EB240 P090D-XT90, XT90-Aviation Plug Connect B230/B300 with AC200/P, AC200MAX, EB200/P, PS200A P090D-MC4 Connect B230/B300 with EP500Pro...

  • Page 8: Let`s Get Started

    To connecting B230 with AC200MAX. charge most devices in the market such as Pixel Phone, Macbook Pro at 100W Max.  Input Port To charge B230 via T500 adapter. For  USB-A Output Port vehicle, extra solar power via D050S. Supports QC3.0 protocol.

  • Page 9: Recharge

    BLUETTI 8.RECHARGE AC Charging (Default) (Charge B230 through T500 adapter) Estimation of Charging Time: 2048Wh / 500W(T500 adapter) + (0.5 - 1 Hrs Trickle Charging) = 4.6-5.1Hrs for AC200MAX fully charged via T500 adapter only. Estimation of Running Time: 2048Wh / 96W(MacBookPro) *0.9(DoD) * 0.9( η ) = 17 Times.
  • Page 10 When SOC-A ＜ SOC-B, B230 will be charged by exterior power source(eg.T500 Adapter), AC200Max will be charged by B230. When SOC-A ＞ SOC-B, B230 will be charged first by all power sources in the Capacity Fusion System until SOC-B = SOC-A, then both of the two units will be...

  • Page 11: Ac200Max + B230 Extra Battery

    AC200Max. Step 3: Push forward the switch(b) to lock the connection. a: Button 01 b: Switch 02 (Hotswap expansion battery easy setup.) (AC200MAX + *1 B230 = 4096Wh Capacity) （AC200MAX with *2 B230 = 6144Wh)

  • Page 12: Technical Specifications

    10.TECHNICAL SPECIFICATIONS General Specs Model No. B230 Net Weight 21.8kg (48.0lbs) Dimensions 420*280*227.5mm (16.5*11.0*8.91in) Charge Temperature 0-40℃ (32-104 ℉ ) Discharge Temperature -20-40℃ (-4-104 ℉ ) Storage Temperature -20-40℃ (-4-104 ℉ ) Working Environment 10-90% Humidity Capacity 2048Wh (40Ah) Battery Type...

  • Page 13: Faq (Frequently Asked Questions)

    ● BLUETTI shall not be liable for any damage caused by force majeure such as fires, typhoons, floods, earthquakes or the user's intentional negligence, misuse or other abnormal conditions.
  • Page 14 device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 15 Company: POWEROAK GmbH Company: POWEROAK ENERGY UK CO.,LTD Address: Lindwurmstr. 114, 80337 Address: Suite 108 Chase Business Center 39-41 München Germany Chase Side London United Kingdom N14 5BP Mail: logi@bluetti.de Mail:poweroak.eu@bluetti.com P/N:17.0303.0381-01A1...
