Instructions

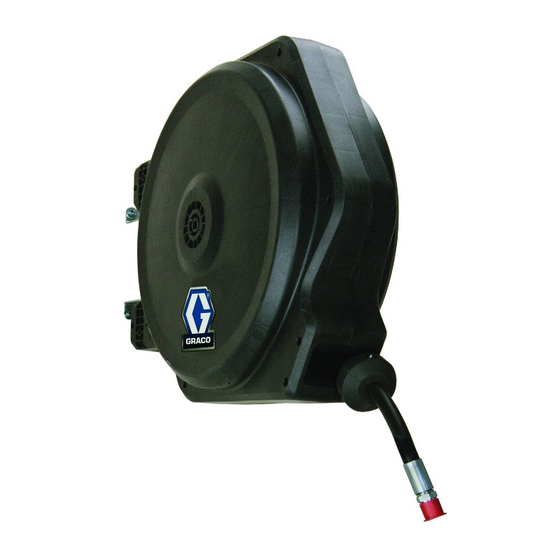

LD Series Enclosed
Hose Reels
For dispensing air, water, antifreeze, windshield washer solvent, transmission fluid, oil and
grease. Not recommended for outdoor use.
Not for use in explosive atmosphere locations!
Part Numbers and Models: Page 4
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Related Manuals
313999 Spanish
3A0001 French
3A0017 German
3A0018 Italian
3A0254 Korean
3A0255 Chinese
3A0256 Japanese
3A0257 Russian
Community Design Registration Number: 0012097 12-0001
Patents Pending
313938E
ENG
ti13505

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Graco LD Series

  • Page 1 Instructions LD Series Enclosed Hose Reels 313938E For dispensing air, water, antifreeze, windshield washer solvent, transmission fluid, oil and grease. Not recommended for outdoor use. Not for use in explosive atmosphere locations! Part Numbers and Models: Page 4 Important Safety Instructions Read all warnings and instructions in this manual.
  • Page 2 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.
  • Page 3 Warnings WARNING MOVING PARTS HAZARD Moving parts can pinch or amputate fingers and other body parts. • Keep clear of moving parts. • Do not operate equipment with protective guards or covers removed. • Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, follow the Pressure Relief Procedure in this manual.
  • Page 4 Models Models *The last character of each Model No. indicates the hose reel color. For example: D = black. On the table below this last character is represented by the generic # symbol. For example, to show the complete model number for a black HEL13# model hose reel, the # symbol in the table is replaced with “D”.
  • Page 5 Models LD Enclosed Hose Reel Packages Model Numbers Each hose reel package includes a bare hose reel, mounting bracket and inlet kit. Application, hose size and maxi- mum pressure rating details for each bare hose reel are provided on the Bare Hose Reels table on page 4. This infor- mation also pertains to the packages that include the bare hose reel as listed on the tables below.
  • Page 6: Typical Installation Layout

    Installation Installation A ground wire (G), bleed-type master air valve (E) and fluid drain valve (H) are required in your system installa- tion. These components help reduce the risk of serious injury, including electric shock and splashing in your eyes or on the skin.
  • Page 7: Wall Mounting

    Installation Wall Mounting To reduce the risk of injury, be sure the mounting sur- face is strong enough to support the reels, weight of the lubricants and stress caused by hard pulls on the service hoses. See Technical Data, page 20 for weights of hose reel assemblies.
  • Page 8 Installation CLICK Align ti13510 ti13511 313938E...
  • Page 9: Overhead Mounting

    Installation Overhead Mounting To reduce the risk of injury, be sure the mounting sur- face is strong enough to support the reels, weight of the lubricants and stress caused by hard pulls on the service hoses. See Technical Data, page 20 for weights of hose reel assemblies.
  • Page 10 Installation CLICK Align ti13511 313938E...
  • Page 11 Installation Flushing Before installing meter or dispense valve to end of hose, flush supply line with a compatible solvent such as Stoddard solvent or mineral spirits. Place end of hose in waste container. Blow out entire lubricant supply line with air Flush equipment with a compatible solvent until fluid Pump dispensing lubricant through line until all sol- runs clear.
  • Page 12 Repositioning Hose Stopper (optional) Repositioning Hose Stopper (optional) ti13525 313938E...
  • Page 13 Installing Meter Installing Meter 313938E...
  • Page 14: Adjusting Spring Tension

    Adjusting Spring Tension Adjusting Spring Tension IMPACT HAZARD The spring is always under great tension and could be propelled or uncoil with enough force to cause serious injury. • The hose reel spring is not a serviceable part. Do not attempt to replace or service the spring. •...
  • Page 15 Adjusting Spring Tension ti13515 Turn ti13516 313938E...
  • Page 16 Decreasing Spring Tension Decreasing Spring Tension Push in on ratchet. Grasp handle firmly with both hands; then turn ratchet counter-clockwise 1/4 turn ONLY. Repeat this procedure of pushing in and turning ratchet counter-clockwise, ONLY 1/4 turn at a time, until spring tension has been completely released. See Table 1, page 14 for the recommended number of 1/4 turns needed to completely release the spring tension.
  • Page 17: Repair And Maintenance

    Repair and Maintenance Repair and Maintenance Pressure Relief Procedure 313938E...
  • Page 18 Repair and Maintenance Disassembly ti13512 ti13514 ti13513-2 313938E...
  • Page 19 Notes Notes 313938E...
  • Page 20 Parts Parts 1◆ 1f/1g 1‡ 1★ 313938E...
  • Page 21 Part No. Description Part No. Description SCREW, countersunk head BRACKET, swivel, included in all HEL, 1‡ 15Y706 HEM and HEH models and models WASHER, id 6.4, od 18 24F735 - 24F752 LATCH BRACKET, fixed, included in models SPRING, latch 1◆ 24E319 24F753-24F770 33▲...
  • Page 22: Technical Data

    Technical Data Technical Data In the following table, Technical Data is provided for the HEL, HEM and HEH hose reel models and for the bare hose reels. Refer to the Package Model Numbers table on page 5 to verify which bare hose model is included in your hose reel package.
  • Page 23: Mounting Pattern

    Technical Data Mounting Pattern Dimensions 6 mm (1/4 in.) bolts 50 mm (1.97 in.) 470 mm (18.5 in.) 171 mm (6.73 in.) 650 mm (25.6 in.) 180 mm (7.1 in.) 313938E...
  • Page 24: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
