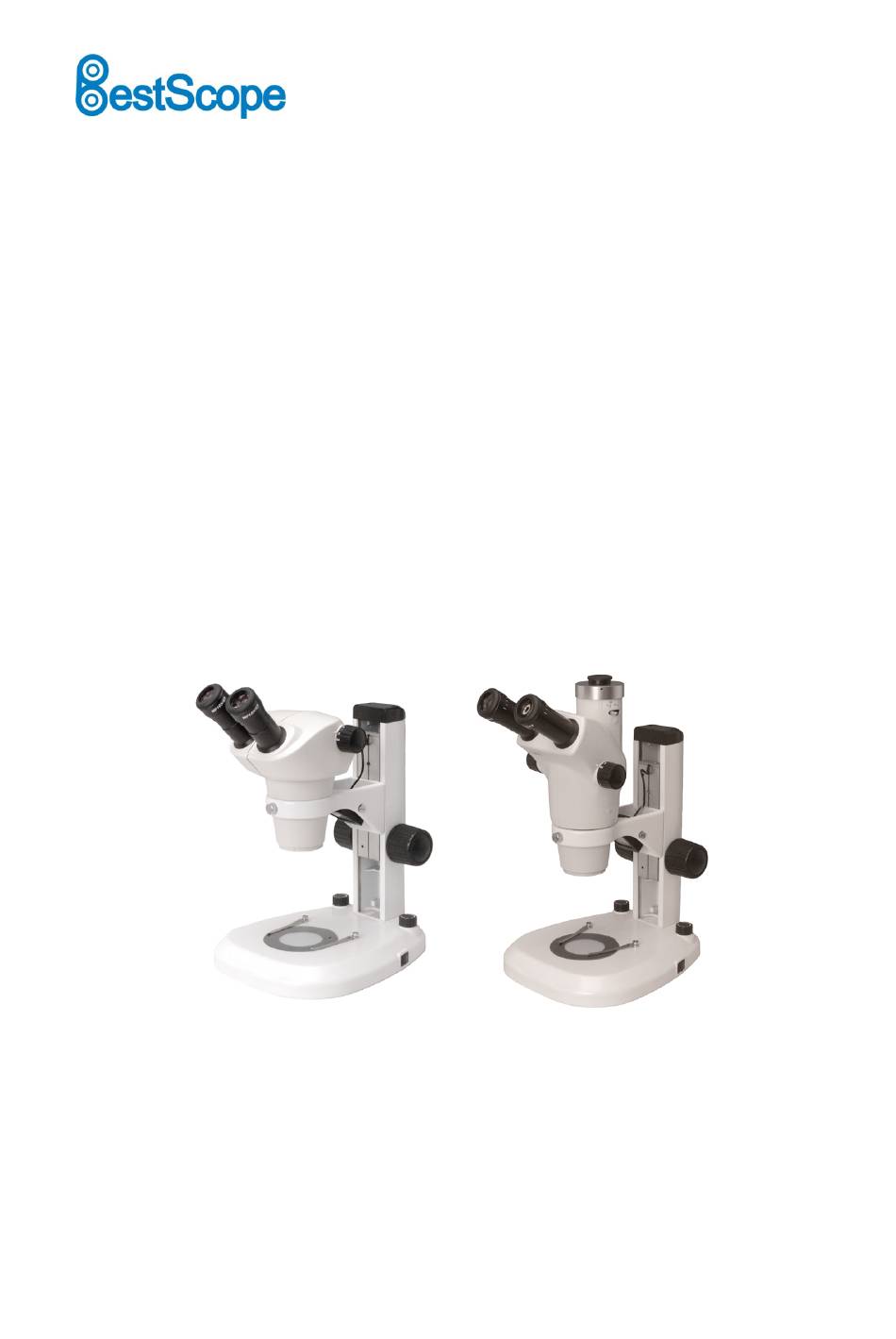

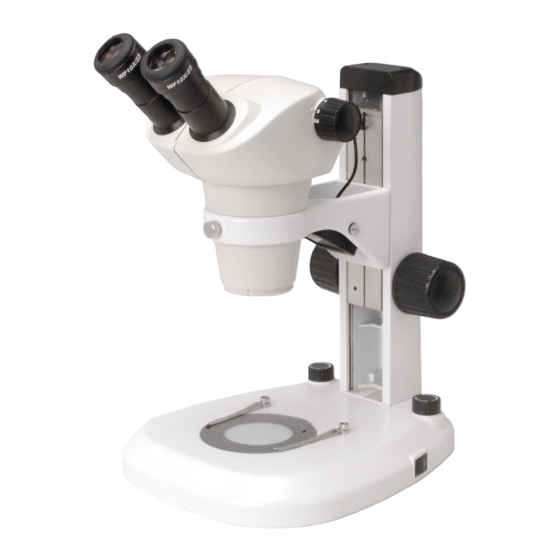

ZOOM STEREO MICROSCOPE
BS-3044, BS-3045
Instruction Manual
This instruction manual is for the microscope BS-3044, BS-3045.To insure safety and
obtain optimum performance and familiarize yourself fully with the use of this microscope.
We recommend that you read the manual thoroughly before operating the microscope, Attain
this manual instruction in an easily accessible place near the microscope for the further
reference.
Advertisement
Table of Contents
Related Manuals for BestScope BS-3044
Summary of Contents for BestScope BS-3044
- Page 1 BS-3044, BS-3045 Instruction Manual This instruction manual is for the microscope BS-3044, BS-3045.To insure safety and obtain optimum performance and familiarize yourself fully with the use of this microscope. We recommend that you read the manual thoroughly before operating the microscope, Attain this manual instruction in an easily accessible place near the microscope for the further reference.
-
Page 2: Table Of Contents
BestScope International Limited CONTENT BS-3044, BS-3045 CONTENT ………………………………………………………………… 1 Before use ………………………………………………………………… 2 1．Nomenclature ……………………………………………………………… 3 2．Assemblage ……………………………………………………………… 2．1 Figure ……………………………………………………………… 4 2．2 Process ……………………………………………………………… 5 3．Operation ……………………………………………………………… 7 3．1 Trinocular head………………………………………………………… 7 3．2 Stand…………………………………………………………………… 8 4. Technical parameter ………………………………………………… 9 5．Troubleshooting... -
Page 3: Before Use
BestScope International Limited BEFORE USE BS-3044, BS-3045 1. Notice 1. The microscope is composed of precision components, Handle with care to prevent abrupt. 2. Check the input voltage: be sure the input voltage which signed in the back of the microscope is consistent with the power supply voltage, or it will bring a serious damage to the instrument. -
Page 4: 1．Nomenclature
BestScope International Limited ZOOM STEREO MICROSCOPE BS-3044, BS-3045 1．NAME OF CONPONTENTS Trinocular Head Stand EW 10× eyepiece Focusing Knob Lock-Screw Glass Plate Base Cable Shift Knob Switch BS-3044, BS-3045 ZOOM STEREO MICROSCOPE... -
Page 5: 2．Assemblage
BestScope International Limited 2. Assembly BS-3044, BS-3045 2.1 Assembly graph Graph below indicate the assembly process. ● Check it is clean before assembling.do not scratch any components and the surface of glass. EW10X eyepiece ③ Trinocular Head ① ② ④... -
Page 6: 2．2 Process
BestScope International Limited BS-3044, BS-3045 2.2 Assembly process 2.2.1 Assembly Trinocular head(fig. 1) Loosen the lock-screw ③ of stand④, put the Trinocular head ② into the hole of stand, tight the lock-screw. ① ② ③ ④ ④ Fig 1 2.2.2 eyepiece assembly(fig1, fig2, fig3) Take the dust cover①... - Page 7 BestScope International Limited BS-3044, BS-3045 2.2.3 Cable connecting (fig.4) 1．Turn to “O” position⑤ before connecting ⑦ power⑥. 2．Insert the pin ⑥into microscope plug safely. 3．Insert the pin ⑦into the power plug. ⑥ ⑤ Fig 4 2.2.4 Use the glass stage(fig.5) ⑧...
-
Page 8: 3．Operation
BestScope International Limited 3. Adjustment BS-3044, BS-3045 3.1 Trinocular head 3.1.1 Interpupillary adjustment (fig.6) Adjusting Interpupillary after observation for another one using. Hold the two tubes, ① adjust interpupillary to obtain a clear image.. ① 3.1.2 Diopter adjustment(fig.7) 1．Turn the diopter adjusting rings ② to the zero 2．Set the sample on the stage. -
Page 9: 3．2 Stand
BestScope International Limited BS-3044, BS-3045 3. 2 Stand 3.2.1 Focusing knob adjustment (fig9,fig10) 1．Pull down the skateboard ② by focusing knob① in a low position to prevent the microscope head drop because of focusing knob loosen. 2 ． Hold two side focusing knob ① . Left focusing knob keep still, turn the right focusing knob. -
Page 10: Technical Parameter
BestScope International Limited 4．Technical Parameter BS-3044, BS-3045 4.1 Zoom ratio: 1:8 4.2 Zoom range: 0.6×～5× 4.3 Eyepiece: 10×/Φ22 Wide field, interpupillary adjustable 4.4 Binocular/ Trinocular head: incline at 30, interpupillary range :55～75mm 4.5 Working distance: 100mm 4.6 Range of movement: 100mm 4.7 Illumination: LED lamp illumination... -
Page 11: 6．Outfit
BestScope International Limited 6．Configuration BS-3044, BS-3045 Components Specification Quantity Standard Outfit○ Body Main body stand ● Binocular/Trinocular zoom head ● head Transmit(LED) ● Illumination Reflex(LED) ● Ring fluorescence lamp ○ 10×eyepiece ● eyepiece 20×eyepiece ○ 0.5×auxiliary objective ○ Objective 2×auxiliary objective ○...
