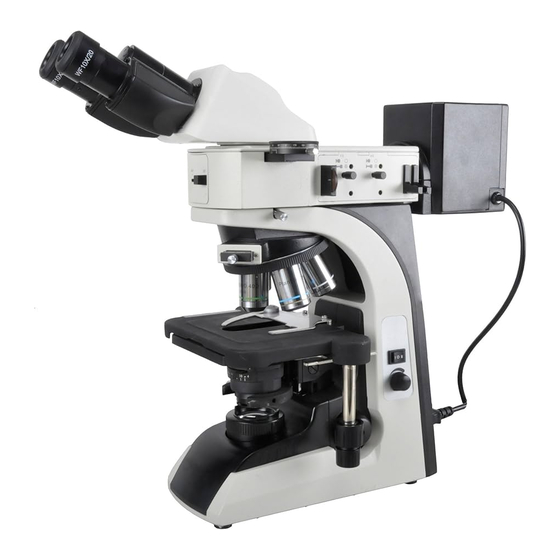

BestScope BS-6010R Instruction Manual

Reflection / transmission reflection metallurgic microscope
Hide thumbs

Advertisement

Quick Links

Download this manual
BS-6010 (R/TR)
Reflection (R) ∕ Transmission Reflection(TR)
Metallurgic Microscope
Instruction Manual
This manual is written for Metallurgical Microscope BS-6010 series. To ensure the safety, obtain optimum
performance and to familiarize yourself fully with the microscope, it is strongly recommended that you
read this manual carefully before operating the microscope.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BS-6010R and is the answer not in the manual?

Questions and answers

Related Manuals for BestScope BS-6010R

Summary of Contents for BestScope BS-6010R

  • Page 1 BS-6010 (R/TR) Reflection (R) ∕ Transmission Reflection(TR) Metallurgic Microscope Instruction Manual This manual is written for Metallurgical Microscope BS-6010 series. To ensure the safety, obtain optimum performance and to familiarize yourself fully with the microscope, it is strongly recommended that you read this manual carefully before operating the microscope.

  • Page 2: Table Of Contents

    BestScope International Limited BS-6010(R)/ (TR) Contents 1. NOMENCLATURE................4 2. APPLICATION..................7 3. INSTALLATION...................7 4. Operation...................12 5. Observation Procedure..............19 6．Specifications..................23 7. Troubleshooting Guide..............25...
  • Page 3 BestScope International Limited BS-6010(R)/ (TR) INSTUCTIONS BEFORE USE: 1. SAFETY PRECAUTIONS 1. Be careful when unpacking, to prevent accessories such as lens fall cause damage. 2. Do not use the microscope where it is subjected to direct sunlight, high temperature and humidity, dust or vibrations.
  • Page 4 BestScope International Limited If the microscope was liquid wet during using, immediately cut off the power and wipe dry. Never attempt to disassemble any part of the microscope, it will affect the function of the microscope or degrade the performance of the microscope.

  • Page 5: Nomenclature

    BestScope International Limited BS-6010(R)/ (TR) 1. NOMENCLATURE Binocular Tube Analyzer Lamp housing Eyepiece Filter insertion slot Brightfield/Darkfield Aperture iris diaphragm knob selector lever Field iris diaphragm knob ND filter knob Polarizer DIC slider insertion slot Objective Stage power selection switch...
  • Page 6 BestScope International Limited BS-6010(R)/ (TR) Power cord Fine adjustment knob AC Input socket Coarse adjustment knob Lamp housing Coarse adjustment tension adjustment ring Power main switch output power socket Fig.2 BS-6010(TR) NOMENCLATURE...
  • Page 7 BestScope International Limited BS-6010(R)/ (TR) Binocular Tube Analyzer Polarizer Power cord Eyepiece Filter insertion slot Brightfield/Darkfield selector lever Aperture iris diaphragm knob ND filter knob DIC slider insertion Field iris Objective diaphragm knob Stage Power main Fine adjustment knob switch...

  • Page 8: Application

    BestScope International Limited BS-6010(R)/ (TR) 2. APPLICATION BS-6010(R)/(TR)metallurgic microscope configuration flat field achromatic lens, it has the function of bright and dark field, polarized, differential interference, etc, also has excellent image quality. Appearance design fully consider the ergonomics, easy to use, it becomes one of the favorite microscopes of metallurgical microscope workers.
  • Page 9 BestScope International Limited BS-6010(R)/ (TR) 3-2 Installation Procedure 3-2-1 Disassembly of Transport Pressure Plate(fig.5) To prevent vibration during transportation，focusing mechanism have been fixed.Hold grooves on both sides of condenser,pull it out,Use hexagon wrench to Pressure plate remove the pressure plate.
  • Page 10 BestScope International Limited BS-6010(R)/ (TR) 3-2-6 Installation of Eyepiece 1. Remove the covers of the left and right eyepiece Tube. 2. Insert the eyepiece into the eyepiece tube. eyepiece 3. Using S2 inner six angle screwdriver to tight screw of eyepiece...
  • Page 11 BestScope International Limited Insert the power cord plug of the lamp housing into the power socket of the body in the right direction, and make sure the contact is good. Always use the power cord provided by our company, if lost or damaged, please select the ...
  • Page 12 BestScope International Limited BS-6010(R)/ (TR) 3) Replacement of Fuse(Fig14)  Fuse rating: 250V, 2A Shut off the power (power switch to "O") and pull the plug out Remove the fuse box with a screwdriver. Replace the fuse. Confirm the window display voltage of the fuse box in accordance with your local power supply voltage.

  • Page 13: Operation

    BestScope International Limited BS-6010(R)/ (TR) 4. Operation 4-1 Open the Light Source 1). BS-6010(TR) Connect the power supply, set the main switch (Figure 15, 1) to "︱" (connected), then set the selective switch (Figure 15, 2) to "‖" (on state).
  • Page 14 BestScope International Limited BS-6010(R)/ (TR) 4-5 The Placement of the Specimen in the Observation of Reflected Light Fix the specimen (Fig. 18, ②) in the sample board (Fig. 18, ①) with the rubber(Fig. 18, ③), to ensure that the specimen plane parallel to the sample board.
  • Page 15 BestScope International Limited BS-6010(R)/ (TR) 4-8 Adjusting the Focus Engage the 10X objective by rotating the revolving nosepiece(A click will be heard when the revolving nosepiece rotated to the correct position), rotate the coarse and fine adjustment knobs to bring the specimen into focus.
  • Page 16 BestScope International Limited BS-6010(R)/ (TR) 4-11 Selecting the Light Path Slide the mirror selector lever (Figure 23,1) toward the indication of the location for the desired observation light path. BF: Reflected light brightfield observation DF: Reflected light darkfield observation  Be sure to slide the mirror selector lever until it contacts the stopper position.
  • Page 17 BestScope International Limited BS-6010(R)/ (TR) 4-13 Using the Aperture Iris Diaphragm Centering the Aperture Iris Diaphragm (AS) 1). Slide the mirror selector lever(Fig.23,1) to “BF”. 2) Engage the 10X objective by rotating the revolving nosepiece, place the specimen on the stage and adjust approximate focusing.
  • Page 18 BestScope International Limited BS-6010(R)/ (TR) 4-14 Using the 0.01mm Objective Micrometer(For Reflection Objective) Confirm each scale interval on the eyepiece scale of the object plane before measuring samples. Put the objective micrometer on the stage with scale value up. Put the 10 x eyepiece with scale into the right tube of binocular camera lens, look into the eyepiece, rotate the diopter adjustment ring to obtain a image with clear scale.
  • Page 19 BestScope International Limited 4-15 Micrography and Television Microscopy Common microscope image recording equipments: cameras, digital cameras, digital webcams. 1)Installation and operation of trinocular tube and webcams: cable screw. a Installation The same with the installation of binoculars tube, minifier tighten the fixed screw.

  • Page 20: Observation Procedure

    BestScope International Limited BS-6010(R)/ (TR) 5. Observation Procedure 5-1 Reflected Light Brightfield/Darkfield Observation The following flow shows the basic operating procedure for reflected light brightfield or darkfield observation. (Controls Used) (Page) Select the brightfield (BF) or darkfield (DF) observation.－－Mirror selector lever P.15...
  • Page 21 BestScope International Limited BS-6010(R)/ (TR) 5-2 Reflected Light Simplified Polarized Light Observation 1). Setting the Analyzer and Polarizer(On P.8). 2). Place the specimen on the stage and adjust the focus by moving the stage up or down. Now simplified polarized light observation can be started.
  • Page 22 BestScope International Limited Fig.28...
  • Page 23 BestScope International Limited BS-6010(R)/ (TR) 6)．Oiled observation Immersion objective marked “oil”. Immersion oil for microscope is needed between the objective and the cover glass when using oil immersion lens. Oiled operation Condenser: Move the specimen back, bring down the condenser slightly, drop a drop of oil at the top of the condenser by the long hole of the stage.

  • Page 24: 6．Specifications

    BestScope International Limited BS-6010(R)/ (TR) 6．Specifications BS-6010(R) BS-6010(TR) Optical system Infinity system ● ● eyepiece WF10×/22, lens tubeΦ30 ● ● with Eyepiece ● ● eyepiece WF10×/20, lens tubeΦ30, cross division eyepiece WF15×/16,lens tubeΦ30 ○ ○ 5×/0.12/∞/0(Brightfield and darkfield share) ●...
  • Page 25 BestScope International Limited Micrometer 0.01 micrometer ● ● ○ ○ flatting machine ○ ○ Camera Standard C interface 1×, 0.4× ○ ○ accessories Note: ●For the standard configuration, ○For the optional accessories...

  • Page 26: Troubleshooting Guide

    BestScope International Limited BS-6010(R)∕(TR) 7. Troubleshooting Guide 7-1 Optical System Problem Cause Remedy The aperture or field iris diaphragm is Open aperture field iris closed. diaphragms. Bulb lights but the Analyzer and polarizer are engaged Disengage them from light path.
  • Page 27 BestScope International Limited match that of the You are not accustomed to parallel When looking into eyepieces, do not stare other. optical axis. at image from the beginning but see the overall field of view. It is sometimes recommended to turn your eyes away from eyepieces, look far off and look into eyepieces again.
  • Page 28 BestScope International Limited BS-6010(R)/ (TR) 7-2 Mechanical System Problem Cause Remedy Rotation tension adjustment ring Loosen ring to an optimum tightness Coarse adjustment knob is too tight. is too heavy to rotate. Pre-focusing lever is locked Release pre-focusing lever. Stage drifts down by itself...
