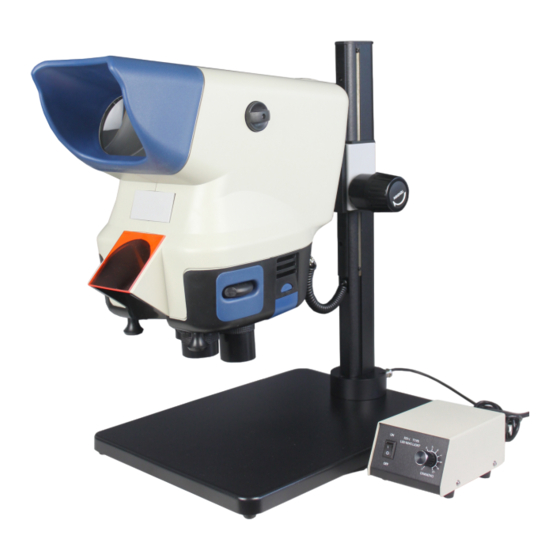

Wide Field Microscope
BS-3070
Instruction Manual
BS-3070A
BS-3070B
BS-3070C
BS-3070D
This manual is written for stereo microscope BS-3070A,B,C,D. To ensure the safety, obtain
optimum performance and to familiarize yourself fully with the use of this microscope, it is
recommended strongly that you read this manual carefully before using the microscope. Retain
this manual in an easily accessible place near the work desk for future reference.
Advertisement
Table of Contents
Related Manuals for BestScope BS-3070
Summary of Contents for BestScope BS-3070
- Page 1 Wide Field Microscope BS-3070 Instruction Manual BS-3070A BS-3070B BS-3070C BS-3070D This manual is written for stereo microscope BS-3070A,B,C,D. To ensure the safety, obtain optimum performance and to familiarize yourself fully with the use of this microscope, it is recommended strongly that you read this manual carefully before using the microscope. Retain...
-
Page 2: Table Of Contents
BestScope International Limited CONTENTS Attention ......................2 Ⅰ.Uses ......................... 4 Ⅱ.Principle and Structure ..................4 Ⅲ.Main Specification ................... 5 Ⅳ.Operation ......................5 Ⅴ. Instrument Outfit .................... 7 Ⅵ. Maintenance ....................8... -
Page 3: Attention
BestScope International Limited Attention 1. NO disassembling and uninstall. It is easy to get an electronic shock and damage the instrument if disassemble and uninstall freely. Please do not disassemble and uninstall any other accessories freely except that the instruction mentions they could be disassembled and uninstalled. - Page 4 BestScope International Limited 4) Don’t dispose with dirt around. When not use, cover it by dust cover. 5) The place must be shaking-proof when dispose. 6. Working Environment. 1) Indoor temperature: 0～40°C. 2) The maximum relative humidity: 85%. 3) Running mode: continuous.
-
Page 5: Ⅰ.uses
BestScope International Limited Ⅰ. Uses BS-3070 is a new type of microscope with a special wide field of viewing. It can form a clear and sharp image with a strong stereo sense of sight, be comfortably viewed and conveniently operated. It is widely used in all kinds of fields such as biology anatomizing. electronic industry, mineral investigating, cultural relic restoration and so on. -
Page 6: Ⅲ.main Specification
BestScope International Limited (4) Screw cap (5) joint dowel (6) dust proof cover (7) Knob for adjusting the interpupillary distance (8) Main body (9) Knob for adjusting illumination (10) Objective (11) Nosepiece (12) Protective baffle Ⅲ. Main Specification 1. Eyepiece: 2. - Page 7 BestScope International Limited screw (2), then mount the objectives onto the nosepiece. 2. Mounting and changing the lamps: Before using the microscope, please first mount the lamps. Gently press the finger-shape protrusion on the protective baffle (12) and take out the protective baffle (12) from the illuminating hole, insert the lamp straight into the socket as far as it will go.
-
Page 8: Ⅴ. Instrument Outfit
BestScope International Limited distance (7) to assure that the beams emerging from the microscope coincide with the eyes of the viewer. The the images in the left eye and right eye of the viewer concentrate into a sharp image. 7. Focusing: Viewing the object by the eyepiece with uplifting or driving down the main body gently, then get a clearer and sharper image. -
Page 9: Ⅵ. Maintenance
BestScope International Limited Ⅵ. Maintenance 1. Not using the microscope: Pull out the plug of power supply wire and cover the instrument with the dust proof cover, then keep it in a dry and cool place. 2. Cleaning the lens: Don’t touch the optical parts by hand.
