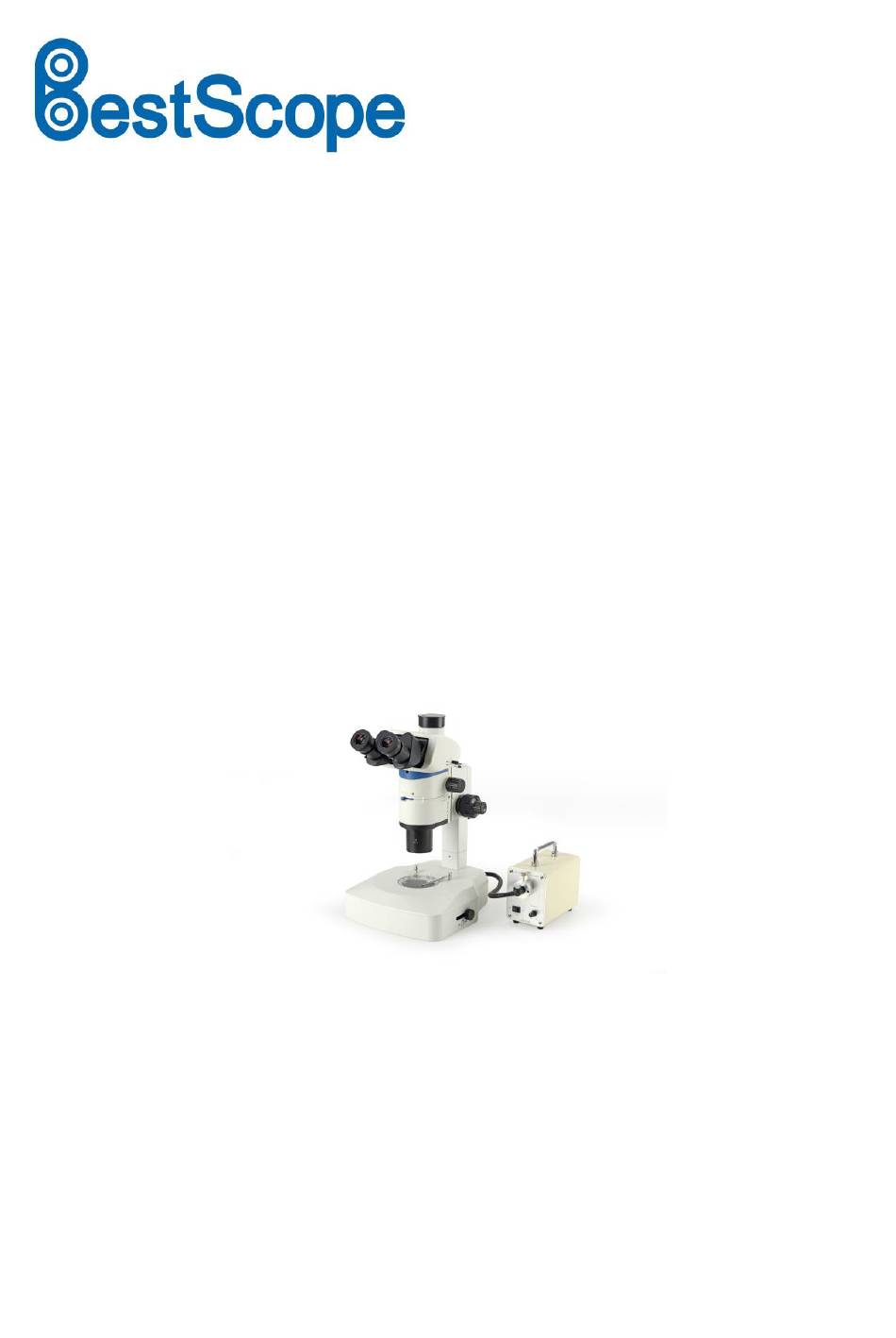

BS-3080 Series
Parallel Light Path
Zoom-Stereo Microscope
Instruction Manual
This instruction manual is for the operation guide, troubleshooting and
maintenance
to
BS-3080
series
parallel
light
path
zoom-stereo
microscope. Please study this manual thoro ughly before operating, and
keep it with the instrument. The manufacturer reserves the rights to the
modifications by technology development. On the basis of operation
ensured, technical specifications may be subject to changes without
notice.
1
Advertisement
Table of Contents
Related Manuals for BestScope BS-3080 Series
Summary of Contents for BestScope BS-3080 Series
- Page 1 BS-3080 Series Parallel Light Path Zoom-Stereo Microscope Instruction Manual This instruction manual is for the operation guide, troubleshooting and maintenance BS-3080 series parallel light path zoom-stereo microscope. Please study this manual thoro ughly before operating, and keep it with the instrument. The manufacturer reserves the rights to the modifications by technology development.
-
Page 2: Table Of Contents
BestScope International Limited Contents BS-3080 Before Use 1. Components ..........................3 2. Assembling ..........................4 2-1 Assembling Scheme ......................4 2-2 Assembling Steps ......................5 3. How to Use ..........................8 3-1 Set Illumination ........................ 8 3-2 Adjust the Reflector ......................8 3-3 Adjust the Focusing Tension ..................... -
Page 3: Before Use
BestScope International Limited Before Use BS-3080 1. Operation Notice 1. As the microscope is a high precision instrument, always operate it with care, and avoid physical shake during the operation. 2. Do not expose the microscope in the sun directly, either not in the high temperature, damp, dust or acute shake. -
Page 4: Components
BestScope International Limited 1. Components BS-3080 Light Path Trinocular Selecting Pole Head Eyepiece Zooming Knob Focusing Bracket Group Microscope Body Lock Aperture Diaphragm Knob Adjusting Rod Tension Adjusting Knob Fine Coarse Focusing Focusing Knob Knob Main Objective Worktable Base Group... -
Page 5: Assembling
BestScope International Limited 2. Assembling BS-3080 2-1 Assembling Scheme Following is the Assembling Scheme to describe how to assemble the components, and the numbers denote the assembling order. ★ Before assembling, make sure there is no dust, dirt or other materials which will disturb it. -
Page 6: Assembling Steps
BestScope International Limited BS-3080 2-2 Assembling Steps 2-2-1 Assemble the Focusing Bracket Group Loosen the lock knob① of the focusing bracket group, insert the hole② of focusing bracket group into the column③, until the focusing bracket group to the lowest position. Then tighten the lock knob① to prevent the microscope from turning. - Page 7 BestScope International Limited BS-3080 2-2-4 Assemble the Head 1) Loosen the head lock-screw① fully with a M4 inner hexagon spanner. 2) Make the two tubes face forward, from a little rear position of the center, insert the coattail interface on the bottom of head into the hole of body with a little rear inclined.
- Page 8 BestScope International Limited BS-3080 2-2-7 Assemble the Clip 1) Use the clip to avoid the specimen moving. 2) Insert the clip① into the two holes of the base, as the arrowhead direction shown in the figure. (See Fig. 2-2-8 Fix the Microscope Body Position 1) Loosen the lock knob①, and rotate the microscope...
-
Page 9: How To Use
BestScope International Limited 3. How to Use BS-3080 3-1 Set Illumination 1) Put through the power and turn on the main power switch to“ON”. 2) Adjust the light adjustment knob② until the illumination is comfortable for observation. Rotate the light adjustment knob clockwise to raise the brightness. -
Page 10: Adjust The Diopter And Focus
BestScope International Limited BS-3080 3-4 Adjust the Diopter and Focus ★ Before operating, make sure the eyepiece lock screw is tighten. Left diopter Right diopter 1) Rotate the zoom knob to the maximum adjustment adjustment magnification. (See Fig. 15) ring... -
Page 11: Turn On/Off The Magnification Fixed Position Function
BestScope International Limited BS-3080 3-7 Turn on/off the Magnification Fixed Position Function ◎ Magnification fixed position function is providing a ticking sound stop position for every zoom magnification indicated value of the zoom knob. When the ticking sound stop position function is... -
Page 12: Adjust The Aperture Diaphragm
BestScope International Limited the eyepiece and avoid damaging the glasses and the eyepiece. (See Fig.20) BS-3080 3-9 Adjust the Aperture Diaphragm Adjust the aperture diaphragm by the aperture diaphragm adjusting pole①. Pull it to the left to enlarge the aperture diaphragm, while pull it to the right to decrease the aperture diaphragm. -
Page 13: Assemble And Use The Polarizer Device
BestScope International Limited 3) Connect the CCD or camera to the adapter③. 4) For binocular observation, after the image is clear, pull the light path selecting pole④ to the outermost, to observe the image. If the image is not clear, loosen the lock screw⑤, and adjust the focusing screw⑥... -
Page 14: Troubleshooting
BestScope International Limited 4. Troubleshooting BS-3080 As the performance of microscope can’t play fully due to unfamiliar operations, the table below can provide some solutions. Problem Cause Solution 1. Optical System (1) The image is too bright Inappropriate adjustment to...
