BestScope BS-3035 Series Instruction Manual

Stereo zoom microscope
Hide thumbs

Advertisement

Quick Links

Download this manual

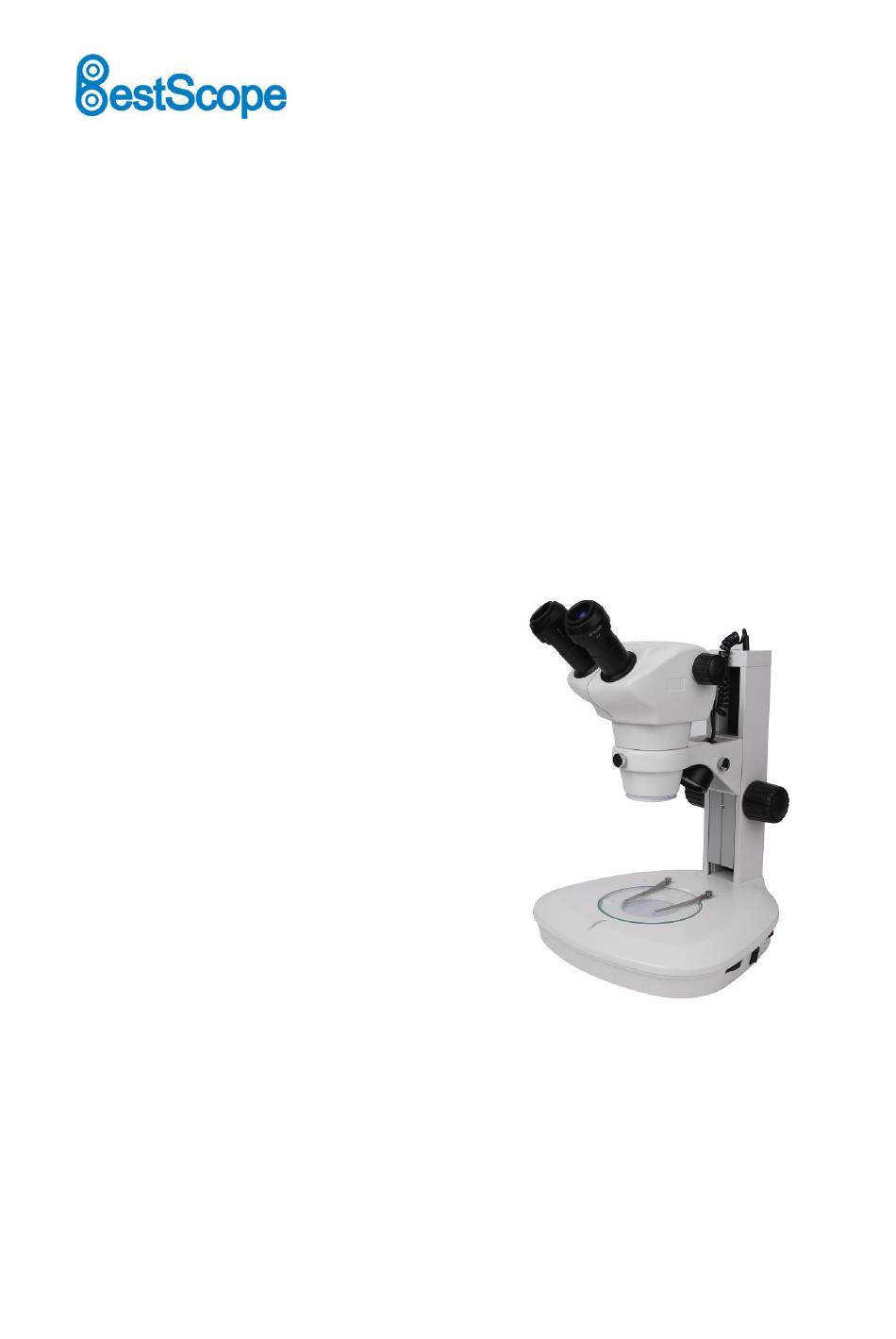

BS-3035 Series
Stereo Zoom Microscope
Instruction Manual
To Ensure safety and obtain optimum performance and familiarize yourself with the
use of this microscope, we recommend you read this manual before operating the
microscope. Retain this instruction in an easily accessible place near the microscope
for further reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BS-3035 Series and is the answer not in the manual?

Questions and answers

Related Manuals for BestScope BS-3035 Series

Summary of Contents for BestScope BS-3035 Series

  • Page 1 BS-3035 Series Stereo Zoom Microscope Instruction Manual To Ensure safety and obtain optimum performance and familiarize yourself with the use of this microscope, we recommend you read this manual before operating the microscope. Retain this instruction in an easily accessible place near the microscope...

  • Page 2: Table Of Contents

    BestScope International Limited Contents I. Structure and Characteristic..........3 II. Main Technical Parameters..........5 III. Configuration..............6 IV. Assemblage..............7 V. Operation................9 VI. Assemblage and Usage of the Attachments....11 VII. Troubleshooting............13...
  • Page 3 BestScope International Limited This instruction manual is for BS-3035 Series Zoom Stereo Microscope, Please read the instruction manual carefully before using, Proper modification can be made without notice. ● Please contact manufacturer if something unclear or incorrect is found. ● The product you purchase may not include all the things mentioned in the manual.

  • Page 4: Structure And Characteristic

    BestScope International Limited I. Structure and Characteristic 1. Structure Chart of the BS-3035 Series Stereo Zoom Microscope...
  • Page 5 BestScope International Limited 2. Characteristic 1) Destaticization: stand, zoom tube, 10×eyepiece and auxiliary objective are all equipped with destaticization. It is very helpful for users to observe the specimen with static(such as semiconductor chip). When use this function, please connect the microscope to the ground through the joggle on the back of the stand.

  • Page 6: Main Technical Parameters

    BestScope International Limited c. Can be used for assemblage, testing, measuring and quality control in industry, especially in 5) Kinds of optional attachments ( such as illumination, stand, eyepiece, objectives and etc.) II. Main Technical Parameters 1. Technology Parameters Zoom Ratio: 1:6.3 Magnification Range: 0.8×-5×...

  • Page 7: Configuration

    BestScope International Limited III. Configuration BS-3035 Zoom Stereo Microscope Configuration ( Seeing the following table) Contents Quantity BS-3035 Zoom head 1 PCS for Each 10X Eyepiece 2 PCS Instruction Manual & Dust Cover 1 PCS for Each Microscope Stand(with or without illumination)

  • Page 8: Assemblage

    BestScope International Limited IV. Assemblage 1. Assemblage 1) Assemblage of the Stage Place the stand on a stable table, insert the stage into the base, and tighten the fixing screw with wrench (small) attached at the back of the stand.
  • Page 9 BestScope International Limited Warning: Do not tighten the screw too tight as this will make damage to the instrument. 4) Mount the Eyepiece Rotate the eyepiece to 0, and insert the eyepiece into the tube completely till it touches the end of the tube.

  • Page 10: Operation

    BestScope International Limited b. Assemblage of the DSLR Camera Adapter and Digital SLR Camera Take away the dust-cover, screw one end of the DSLR camera adapter into the DSLR camera. Insert the other end of the camera adapter to the trinocular head, and tighten it. Adjust the camera, and tighten it.
  • Page 11 BestScope International Limited 2) Adjust the torque of focusing knob Adjust the torque of the focus knob so that the zoom body will not fall down because of its own weight. 3) Interpupillary Distance Adjusting This adjustment should be performed every time if the observer changes since the interpuillary distance is different between individuals.

  • Page 12: Assemblage And Usage Of The Attachments

    BestScope International Limited and specimen at 115mm, and this will be helpful to focus. 2) Focus on the Specimen Turn the focusing knob both at the same direction to make the zoom tube move up and down. So that the focus will fall on the specimen.
  • Page 13 BestScope International Limited 3. Installation of Illumination 1) Install the incident illumination Set the protrusion on the lamp house alight with the inside of the screw hole on the focus arm as shown. Secure it in place using mounting screw from outside.

  • Page 14: Troubleshooting

    BestScope International Limited VII. Troubleshooting The function of microscope will not work efficiently for the unfamiliar using. Check the table below if meet some troubles, then take proper action. Ask sales agent if the trouble will not be tackled after check.
  • Page 15 BestScope International Limited VIII. Maintenance 1. Working Environment ● Temperature range is 0°C-40°C and the max. Humidity is 85%. Avoid high temperature and humidification. ● Do not expose the microscope in the sun directly. ● Place microscope on a stable table and keep it in balance. Avoid violent vibration.
