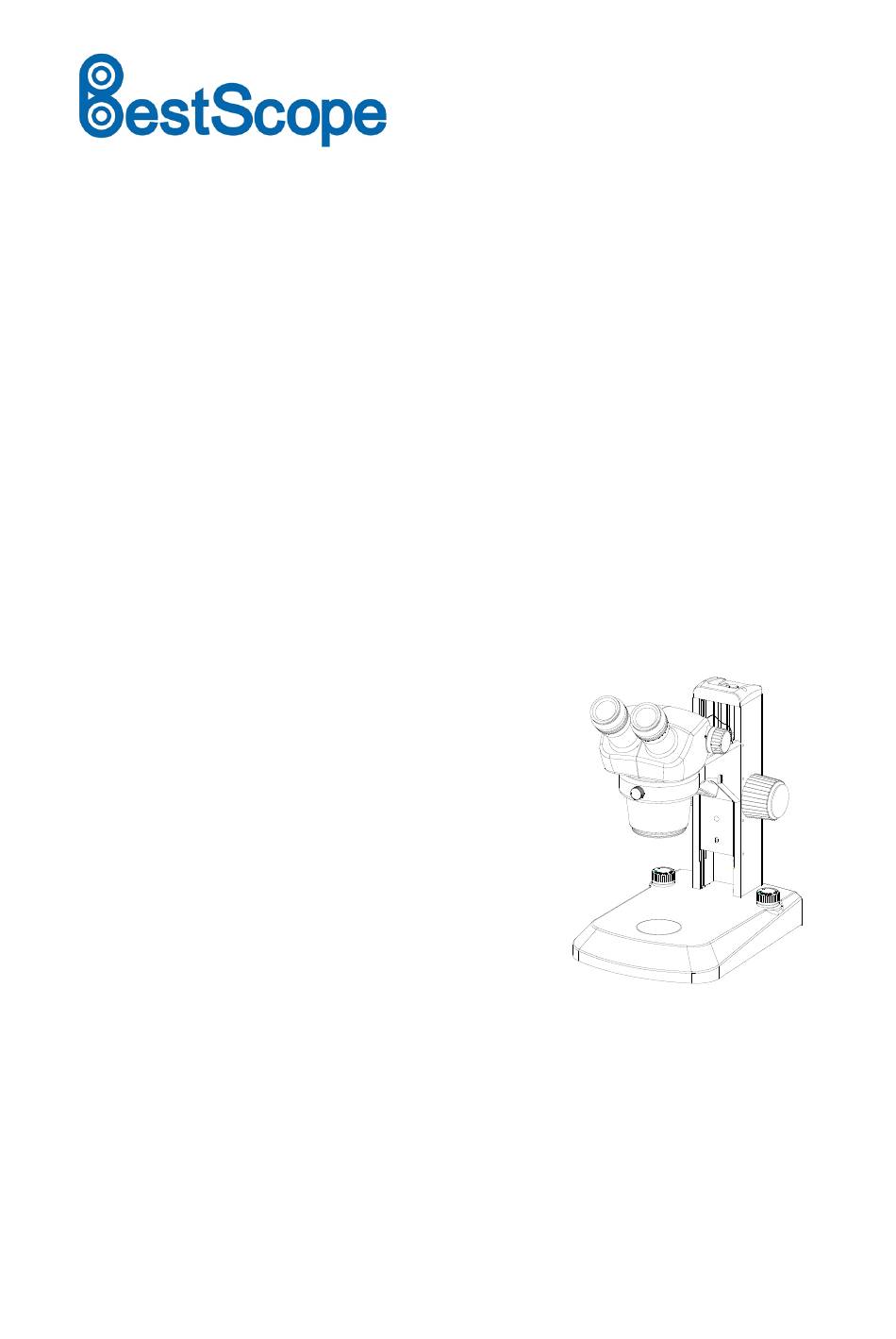

- Page 1 Stereo Microscope BS-3015 Series User Manual It is recommended strongly that you study this manual thoroughly before using the microscope. Retain this manual in an easily accessible place near the work desk for future reference.
-
Page 2: Table Of Contents
BestScope International Limited CONTENT BS-3015 User notice ..............2 1. Components ............4 2. Assembly ..............5 2.1 Assembly Diagram ...........5 2.2 Detailed Assembly Procedure ......6 3.Adjustment and Operation ........8 3.1 Adjusting Binocular Viewing Head ....8 3.2 Focus Adjusment ..........9 4. Main specifications ..........10 5. -
Page 3: User Notice
BestScope International Limited User notice BS-3015 1. Application This microscope is ideal for science educators, industrial enterprise, scientists and practitioners. 2. Safety Precaution 1. Carefully open the box, avoid the accessories, like lens, dropping to ground and being damaged. 2. Check the input voltage, be sure the input voltage which signed on the microscope is consistent with the power supply voltage, or it will bring a serious damage to the instrument. - Page 4 BestScope International Limited ether. (Note that the alcohol and ether are highly flammable, do keep them away from the fire or potential sources of electrical sparks, and use them in a drafty room as possible as you can.) 5. Do not attempt to use organic solvents to clean the microscope components other than the glass components.
-
Page 5: Components
BestScope International Limited Stereo Microscope BS-3015 1. Components Binocular head and zoom body WF10×eyepieces Diopter ring Stand Clamping knob Focusing knob Standard base Stereo microscope BS-3015 Power cord Glass stage Brightness adjusting knob 2. 安装 BS-3015... -
Page 6: Assembly
BestScope International Limited 2. Assembly 2.1 Assembly Diagram The diagram below shows how to assemble the various modules. The numbers indicate the order of assembly. ★When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts or touching glass surfaces. -
Page 7: Detailed Assembly Procedure
BestScope International Limited BS-3015 2.2 Detailed Assembly Procedure 2.2.1 Mounting binocular head (Fig.1) Loose the clamping bolt③ on the ① pillar④ and insert the binocular head and zoom body assembly②into the bracket of ② the pillar, then screw down the bolt③. - Page 8 BestScope International Limited BS-3015 2.2.3 Connecting the power cord (Fig.4) 1. Rotate the left and right brightness adjusting switches① clockwise until the off state before ③ connecting the power cord②. 2. Insert the power plug② into the power jack of the microscope;...
-
Page 9: Adjustment And Operation
BestScope International Limited 3. Adjustment and Operation BS-3015 3.1 Adjusting Binocular Viewing Head ① 3.1.1 Adjusting interpupillary distance (Fig.7) Different users have different interpupillary distances. So when users change, re-do the interpupillary distance adjustment. Fig.7 Looking through the eyepieces, hold the left and right side of the binocular assembly①... -
Page 10: Focus Adjusment
BestScope International Limited 3.2 Focus Adjustment 3.2.1 Adjusting the rotation tension of the focusing knob (fig.9, fig.10) 1 ． Rotate the focusing knob① to move the slider② to a lower position for fear that the zoom body drops down suddenly if the tension is decreased too much. -
Page 11: Main Specifications
BestScope International Limited 4. Main specifications BS-3015 4.1 Electrical parameters: Input Voltage: AC 110V~240V 50HZ/60HZ Power rating: 15W Top Illuminator: 1W Bottom illuminator: 0.5W 4.2 Binocular viewing head: Inclined at 45, interpupillary distance range: 55～75mm 4.3 Illumination system: LED lamps for both top and bottom illumination... -
Page 12: Troubleshooting
BestScope International Limited 5. Troubleshooting Under certain conditions, performance of this unit may be adversely affected by factors other than defects. If a problem occurs, please review the following list and take remedial action as needed. If you cannot solve the problem after checking the entire list, please contact your local franchiser for assistance. -
Page 13: Outfit
BestScope International Limited 6. Outfit Components Specification Quantity Outfit Main body Main body ● Binocular head and zoom body ● Observation Trinocular head and zoom body ○ system Built-in digital zoom body ○ Transmitted illuminator (LED) ● Illuminator Reflected illuminator (LED) ●...
