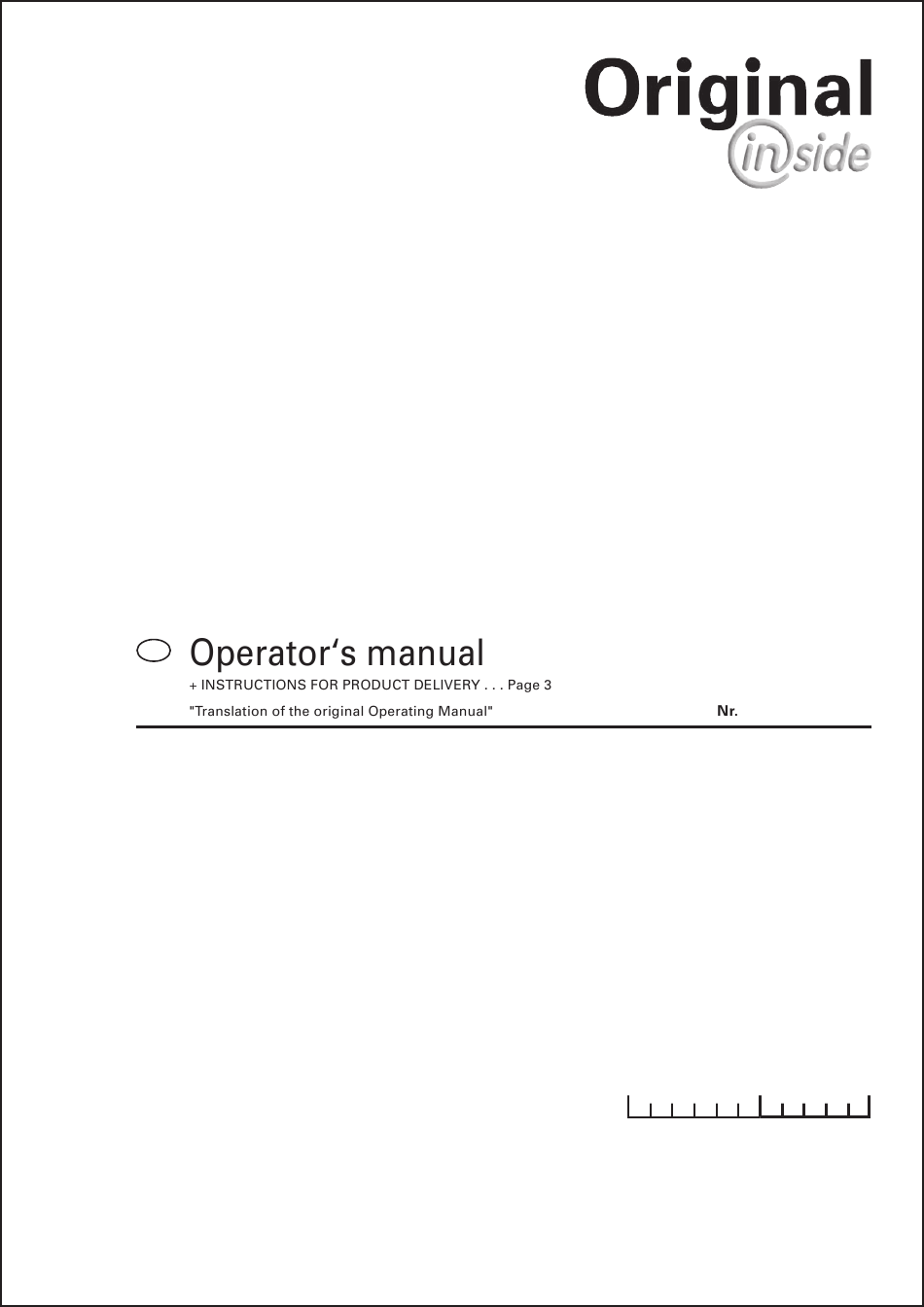

  • Page 1 99 8541.GB.80K.0 AEROSEM 300 Type 8541 (MaschNr + . . . 01001) AEROSEM 400 Type 8559 (MaschNr + . . . 01001) AEROSEM 3000 Type 8542 (MaschNr + . . . 01001) AEROSEM 4000 Type 8543 (MaschNr + . . . 01001)
  • Page 2 Dear Farmer You have just made an excellent choice. Naturally we are very happy and wish to congratulate you for having chosen Pöttinger. As your agricultural partner, we offer you quality and efficiency combined with reliable servicing. In order to assess the spare-parts demand for our agricultural machines and to take these demands into consideration when developing new machines, we would ask you to provide us with some details.
  • Page 3 INSTRUCTIONS FOR Dokument PRODUCT DELIVERY PÖTTINGER Landtechnik GmbH Industriegelände 1 A-4710 Grieskirchen Tel. 07248 / 600 -0 Telefax 07248 / 600-2511 According to the product liability please check the above mentioned items. Please check.  Machine checked according to delivery note. All attached parts removed. All safety equipment, drive shaft and operating devices at hand.

  • Page 4: Table Of Contents

    Table of conTenTs Table of contents SAFETY Electronic seed quantity adjustment ..........67 Safety Instructions ................5 Driving lane switching ..............68 CE sign ....................6 Driving lanes meter ................68 Warning Signs (symbols) ..............6 Stutter switch ................69 Meaning of warning signs ...............6 Monitoring functions..............70 Brief Description of the Machine .............8 Alarms ...................71 Technical Data .................8...

  • Page 5: Safety

    safeTY Before commissioning the seed drill, you should carefully read this operating manual and the safety instructions (”For your safety”) – and observe them; you should also read the instructions for a soil finishing tool. The operating person should be qualified in safety requirements and be instructed about the dangers by the instruction for use and maintenance. Please pass on all safety instructions to other users.

  • Page 6: Ce Sign

    Warning signs CE sign The CE sign, which is affixed by the manufacturer, indicates outwardly that this machine conforms Recommendations to the engineering guideline regulations and the other relevant EU guidelines. for work safety EU Declaration of Conformity (see supplement) All points referring By signing the EU Declaration of Conformity, the manufacturer declares that the machine being to satety in this...
  • Page 7 Warning signs Never open or remove protection Legs could be hit through components Put notice here devices when drives are running. suddenly swivelling out or sliding out. Do not stand in the area of raised Keep your distance Keep your distance. load.

  • Page 8: Brief Description Of The Machine

    TecHnical DaTa Brief Description of the Machine Once assembled, the pneumatic PÖTTINGER drill machine ”AEROSEM” (with quick coupling device) is fitted on to soil finishing tools. The seeds from the large hopper, that has a waterproof lid, are centrally batched for the full working width and then equally distributed to the sowing coulters.

  • Page 9: Equipment

    TecHnical DaTa Equipment Auxiliary Equipment · Quick coupling device: three-point equipment – and sowing setting · Coulter harrow; approx. 0,6 kg/pair for soil finishing tool (e.g. saddle triangle, belt pulley, V belt; ca. · Sowing harrow, 2-piece, with after-running tines; approx. 16 0 kg) kg/m ·...

  • Page 10: Loading Instructions

    Fold in AEROSEM 6000 – double action control unit – ensuring the correct connection: ”lift” / fold in (red) ”lower” / fold out (yellow), hydraulic lever for the disc markers on AEROSEM 300 – additional single action control unit (green). Hydraulic coulter pressure adjustment – single action control unit (blue).

  • Page 11: Belt Drive

    HiTcHing anD UncoUpling Electricity supply for electronic tramline switching: 12V for 3-pole constant current socket (DIN 60). (If this is not avai- lable, a battery connection cable with socket or an adaptor for the 7-pole trailer socket (requires parking light to be switched on) can be supplied by PÖTTINGER as additional equipment).

  • Page 12: Operating Instructions

    operaTion Operating Instructions - Limit the horizontal play of the tractor’s lower link - Place the tractor’s upper link so that when in use it only lifts slightly; set the length so that the entrance shaft/seed shaft are in a horizontal position, - For operation, set the tractor hydraulics to ”floating position”: lifting hydraulics and row markers, - Ensure correct seed shaft RPM;...
  • Page 13 operaTion Loading Platform When in operation fold up the lower levels (43/1). In order to ‘calibrate’, ‘fold in’ the right platform part (43/2) Never allow anyone to climb onto or ride on the machine (or loading platform)! Keep tread steps clean! Set the machine down before filling and turn off the engine! When filling the machine remember that dressings are irritants and sometimes toxic! Protect yourself accordingly!
  • Page 14 operaTion Dust guard Device (Fig. 55) This sucks the fan-inlet air back up and generates a small pressure surge in the hopper. The filling lid should therefore be closed during operation. hectare meter (only when no Multitronic is available) The counter begins to turn as soon as the drive wheel starts to move.

  • Page 15: Setting Seed Rates

    regUalTing sYsTeM Setting Seed Rates One coarse (10/3) and two fine proportioning wheels (10/1 + 2) with three settings and RPM adjustor vary the sowing rate. (Additional equipment for peas available on request). Power is taken from a drive wheel that runs on the working area –...

  • Page 16: Bottom Flap

    regUalTing sYsTeM Bottom flap adjust with setting lever according to seed chart; 1 – 6. Under the proportioning wheels the bottom flap forms the edge of the batching housing; it is padded and can become displaced. (When changing the setting of the proportioning wheels always set the bottom flap to ‘1’).

  • Page 17: Adjusting Seed Quantity Per Hectare

    aDJUsTing soWing QUanTiTY (calibraTion process) Adjusting seed quantity per hectare Seed volume trial (Calibration) Calibration process Seed chart values * Remark: In German word usage it is normal to use the term As seed varies greatly in specific weight, size, shape and dressing „Abdrehen“...
  • Page 18 aDJUsTing soWing QUanTiTY (calibraTion process) Seed volume trial (Calibration) Lower the combination. Close the emptying slide (19/1). Proportioning wheels Gear settings Set according to seed chart Bottom flap Butterfly flap Pour in seed (remove agitator plug from agitator shaft first if using rape seed).
  • Page 19 aDJUsTing soWing QUanTiTY (calibraTion process) Sowing with double row spacing If, as an exception, sowing is to take place with half the number of coulters (double row spacing), the flaps should be set to the ‘non- sowing’ 2- way- turns setting - set the upper flap lever up or down (22/1).

  • Page 20: Hydraulic Seed Rate Adjustment

    seeD QUanTiTY aDJUsTMenT hydraulic Seed Rate Adjustment Electric sowing quantity adjustment It maybe advisable to adjust to maximum seed rate in connection Emergency operation: with the hydraulic coulter pressure adjustment. If the electronics fail the sowing quantity can be manually adjusted To operate, switch the path valve (Fig.1) to the Take the following steps:...

  • Page 21: Coulter Pressure

    coUlTer pressUre Coulter Pressure The coulter pressure– and thus the seed depth – is continuously adjustable; as (50/1, with hand crank) Individual coulters – e.g. in the tractor tracks – may be adjusted to work at a higher pressure by changing the connection point of the spring (29/2).

  • Page 22: Coulter Exchanger

    coUlTer excHanger Coulter Exchanger In the case of the „Vitasem, Aerosem", the shoe and broad-shoe coulters may be exchanged without tools. Unhook the spring (61/1) and pull the spring-secured pin (61/2). Re-secure the pin after mounting. Shoe Coulter (Fig. 61) – Normal 0 For shallow seed placement, adjustable depth limiters may be attached to the shoe coulters at any time (61/4).

  • Page 23: Disc Markers

    ”floating position”! (with an AEROSEM 6000 control unit, ”floating position” can be se- lected during lowering. AEROSEM 300: single action control unit Automatic switching regulates switching (basic setting of automatic switching, see Maintenance). The traction cable (24/1) should have a little slack during operation to allow the row marking disc to adjust to the soil while still catching it when rolling through a deeper furrow and thus protecting it from overload.
  • Page 24 roW Markers AEROSEM 3000 - 4500: single action control unit AEROSEM 6000: Double action control valve with “floating position” Multitronic II Sowing Monitor Switching and metering impulse for the electronic tramline switching occurs via a hydraulic shuttle valve when the disc marker is in the final lifted/folded position.

  • Page 25: Harrow Models

    HarroW MoDels harrow Models Coulter harrow (Fig.): For shoe coulters only – May be attached to the coulters in the back row, spring-loaded. - Suitable for light to medium soil, without trash. Sowing harrow (Fig.8): - in two parts, in two rows, with consecutive tines - suitable for medium and hard soil.

  • Page 26: Perfect Harrow (+ 2005 Model)

    Perfect harrow (+ 2005 model) Depending on the machine model (see diagrams), additional extensions can be added to this perfect harrow either - left and right - right only - left only Advantages: Harrow operation in the boundary area is improved, particularly in the removal of obstructions in the deflector plate area of a rotary harrow. VITASEM VITASEM A with tail wheel right AEROSEM with tail wheel right...
  • Page 27 TraMlines Examples of Tramlines At the edge of the field (row marker lowered on field-side) set the tramlining cycle to the correct starting number – e.g. for rhythms  and 4 set to 2. Sensors handle the automatic switching, e.g. when changing row markers.
  • Page 28 TraMlines Working width Spraying width S w i t - Examples for setting the tramlines c h i n g Seed drill Distribution Width rhythm Symmetrical tramlines in one drill track Tramlines in different drill tracks - 2 - 0000-GB Fahrgassen_8541...
  • Page 29 TraMlines Tramline demarcation (only in connection with tramline switching). For pre-emergence spraying the tramline track can be indica- ted during sowing with the disc markers (Fig. 53). Switching is handled automatically. The electromagnetic valve is located on the front end of the machine. Adjust the disc markers to tramline track-width.
  • Page 30 TraMlines Fan Monitoring The fan monitor also gives a signal if the fan’s RPM fall too low or get too high during operation. Despite this additional warning, care should still be taken that the fan – during operation – runs with high RPM; the normal RPM for the seed shaft (ca. 1,000 U/min) should be maintained.

  • Page 31: Multitronic

    MUlTiTronic „MULTI tronic“ Sowing Monitor Useful Features The Multitronic II – sowing monitor is a compact on-board computer with many useful features. It manages important control and monitoring tasks and simplifies operation by providing help functions and easy to understand displays. The sowing monitor was designed for compatibility.

  • Page 32: User The Interface Of The Multitronic Ii - Sowing Monitor

    MUlTiTronic User the Interface of the Multitronic II – Sowing Monitor Button indication: F-key - Activating the main menu - Activating the help functions (sensor test, calibration help) - Saving the machine settings Arrow keys - Changing the menu settings - Menu navigation (up/down) Display Drive Speed Press 1x = Drive Speed Display...

  • Page 33: Main Menu

    MUlTiTronic ii DeTails in brief for "aeroseM, TerraseM" Main menu Press the F function key to activate the main menu. The seed drill unit is now running with its default settings <AdJU>. This operation also activates the system utility functions sensor test <SEns> and calibration assistance <CAL>. Use arrow keys to select and save driving lanes rhythm...
  • Page 34 MUlTiTronic ii DeTails in brief for "aeroseM, TerraseM" Alarm functions / messages: Sowing shaft monitoring alarm Hopper level monitoring alarm Fan monitoring alarm The fan alarm is set off if the fan r.p.m. exceeds its setting or remains under its setting by 500 r.p.m.. The fan alarm <Gebl>...

  • Page 35: General Transport Instructions

    TransporT general Transport Instructions Bring machines into transport position; ensure suitability for transport. Before driving on public roads, disconnect the „MULTI tronic“ from the power supply (remove plug from tractor socket). Riding on the machine or standing in the danger area is not permitted. Adjust the transport speed to suit the road conditions.

  • Page 36: Safety Point

    MainTenance Safety point Parking in the ope Safety points! • Turn engine off when adjustment, service and repair When parking in the open for work is to be done. long periods of time, clean • Turn engine off piston rods and then coat when adjustment, with grease.
  • Page 37 MainTenance Maintenance Before working on the hitched machine, turn off the engine and remove ignition key! Do not work on a raised seed drill! If working on a raised drill is necessary, use additional safety supports to prevent unintentional lowering! De-pressurize the hydraulic system before commencing any work! Ensure proper disposal of oil! (Hydraulics oil is mineral based).

  • Page 38: V-Belts For Various Attachment Sets

    MainTenance Basic Settings for Automatic Row Marker Switch: (only AEROSEM 00): The boom should be in operating position. Fully extend the hydraulic cylinder with both row markers lifted. Adjust the nuts (66/1) with a size 24 spanner until one notch latches into position easily (with the other notch remaining unlatched).

  • Page 39: Basic Adjustment

    HYDraUlic bloWer Drive Basic adjustment Check before adjusting Important! First adjustment: 1. The following basic requirements should be Seed drills with fulfilled by the tractor. For seed drills the following nominal speeds apply hydraulic fan a. Independently of the hydraulic jack working oil circuit drives should be Type of device with a minimum oil output of 5 l/min.

  • Page 40: Standard Hydraulic Blower Drive

    HYDraUlic bloWer Drive Standard hydraulic Blower Drive warning! Adjustment process for coarse seed Adjustment process for fine seed Adjustment only For drilling machines with hydraulic blower drive, a Pressure gauge valid for the reduction in air volume is attained through a reduction tractor being Hand wheel (1) in blower speed.

  • Page 41: Hydraulic Blower Drive With Load Sensing Control

    HYDraUlic bloWer Drive hydraulic blower drive with Load Sensing control To operate the hydraulic blower drive Technical details Be advised: - Minimum tractor conveying capacity 5 l/min Max. oil flow rate 5 l/min A correct setting - Hydraulic drive pressure at least 150 bar Max.

  • Page 42: Attachment Variants

    TriangUlar MoUnT Attachment variants Note! Observe also the mounting and Attachment variant 1 operating manual for the rotary - with hydraulic blower drive harrow Attachment variant 2 - with mechanical blower drive Note! The gap between mounted seed drill and rotary harrow can be changed using the brackets - remove both brackets (K)
  • Page 43 Operating instructions Seed drill monitor Multitronic II AEROSEM TERRASEM...

  • Page 44: General Information

    MUlTiTronic "aeroseM, TerraseM" Inhalt 1 General information .................................. 44 2 Operating features of the seed drill monitor ..........................45 2.1 Electrical connection ............................... 45 2.2 Technical data ................................. 45 2. Operating functions................................. 45  Starting the seed drill monitor for the first time ........................46 4 Multitronic II quick startup instructions for the VITASEM ......................

  • Page 45: Operating Features Of The Seed Drill Monitor

    MUlTiTronic "aeroseM, TerraseM" 2 Operating features of the seed drill monitor 2.1 Electrical connection Power is supplied to the seed drill monitor from the tractor’s 12V electrical system via a DIN 9680 plug connection. These three-pin plugs also exist in two-pin format, as only the two main terminals (+12V, earth) are required here. On request, the seed drill monitor can also be fitted to operate via an ISO 11786 signal socket.

  • Page 46: Starting The Seed Drill Monitor For The First Time

    MUlTiTronic "aeroseM, TerraseM" 3 Starting the seed drill monitor for the first time The Multitronic II seed drill monitor is activated by inserting the power supply plug in the socket. A short horn signal indicates that the unit is active. The display is then active for about two seconds, to show the type of machine in use: <...

  • Page 47: Main Menu

    MUlTiTronic "aeroseM, TerraseM" 4.4 Main menu Press the F function key to activate the main menu. The seed drill unit is now running with its default settings <AdJU>. This operation also activates the system utility functions sensor test <SEns> and calibration assistance <CAL>. Use arrow keys to select and save driving lanes rhythm...

  • Page 48: Multitronic Ii Main Menu For Vitasem

    MUlTiTronic "aeroseM, TerraseM" 5 Multitronic II main menu for VITASEM Three different functions can be activated via this menu: Seed drill unit default settings <grnd> Sensor test <SEns> Calibration assistance <Abdr> Press the F key and use arrow key A or V to select the desired function. Press the F key again to activate the selected function.

  • Page 49: Calibration Of The Hectare Meter Or Entry Of Wheel Impulses

    MUlTiTronic "aeroseM, TerraseM" 5.1.3 Calibration of the hectare meter or entry of wheel impulses An impulse count for an operating length of 100 m is required for accurate hectare metering and correct drive speed display. This can be determined in two different ways: •...

  • Page 50: Säwellen- / Abdrehklappenüberwachung

    MUlTiTronic "aeroseM, TerraseM" 5.1.4 Sowing shafts/Turning flaps monitoring In diesem Menü wird die Säwellen- und Abdrehklappenüberwachung ein- oder ausgeschaltet. Firstly, the sowing shaft monitor symbol appears: <doSi> = Dosing, and  secs. later the monitoring state Monitoring on = <ON> Monitoring off = <OFF>...

  • Page 51: Number Of Distributor Head Outlets

    MUlTiTronic "aeroseM, TerraseM" Use arrow keys A or V to select a fan unit turning speed from the table and press the F key to save. (See sect. 5.1.10). To disable fan unit monitoring, use arrow keys A or V to select a fan unit turning speed of <0>...

  • Page 52: Sensor Test And Onboard Voltage Display

    MUlTiTronic "aeroseM, TerraseM" 5.2 Sensor test and onboard voltage display The sensor test offers a method of testing the function of the seed drill unit sensors. Press the F key and use arrow keys A or V to select the sensor test function, then press the F key again to start the test.

  • Page 53: Calibration Assistance

    MUlTiTronic "aeroseM, TerraseM" You can test the functioning of a sensor by holding a metallic object (e.g. a screwdriver) in front of the it and then moving it away again. Pressure switch functioning, with closed hydraulic circuit, can be tested by raising the marker arms. If the F-key is pressed again, the onboard voltage display occurs The first character “U”...

  • Page 54: Display (Readout) Pushbuttons

    MUlTiTronic "aeroseM, TerraseM" 6 Display (readout) pushbuttons The green keys are the display pushbuttons, which are used to operate the following functions: Display / reset hectare meter Display drive speed Display sowing shaft revolutions Display fan unit turning speed Display / alter tramline cycle 6.1 Drive speed display Press the display key to show drive speed in km/h.

  • Page 55: Tramline Cycle

    MUlTiTronic "aeroseM, TerraseM" 6.5 Tramline cycle The tramline cycle can be displayed and altered, with tramline cycle relaying being carried out either automatically or manually. It is also possible to interrupt automatic relaying, when avoiding obstacles for example, without altering the tramline cycle itself. 6.5.1 Tramline cycle display / adjustment Press the display key to show the tramline cycle and rhythm.

  • Page 56: Alarm Functions / Messages

    MUlTiTronic "aeroseM, TerraseM" 7 Alarm functions / messages Seed hopper level, fan unit turning speed and sowing shaft revolutions can be monitored, on condition that the seed drill unit is fitted with the corresponding activated monitoring device. (See sections 5.1.4 and 5.1.5 for information on activating hopper level and sowing shaft monitoring.

  • Page 57: Fan Unit Alarm

    MUlTiTronic "aeroseM, TerraseM" 7.3 Fan unit alarm The fan unit monitoring systems controls the turning speed of the fan unit. (Please refer to sect. 5.1.7 for details on how to activate fan unit monitoring). A sensor receives impulses from the fan unit shaft at a rate of one impulse for each turn of the shaft. The seed drill monitor uses this data to calculate fan unit turning velocity in rpm, and compared this value to the preset target speed.

  • Page 58: Setting The Machine Type, The Local Language And Switching The Control Signals

    MUlTiTronic "aeroseM, TerraseM" 8 Setting the machine type, the local language and switching the control signals The Multitronic II seed drill monitor can be operated with both the VITASEM range of mechanical seed drill machines and the AEROSEM, TERRASEM range of air-operated units.

  • Page 59: Power Control - Operation

    poWer conTrol - operaTion Control panel Button indication Note! In order to avoid Display indicator: operating and Information on start-up screen adjustment - Manufacturer errors, please read the following - Machine model references and - Software version Vitasem explanations thoroughly before operating the unit.

  • Page 60: Switching On Operating Device

    poWer conTrol - operaTion Switching on operating device Switching on operating device Note! Check the base - briefly pressing I/O button settings of the power control Start-up screen appears before initial - Press “OK” key until tone signal is heard operation.

  • Page 61: Base Settings Menu

    poWer conTrol - operaTion Base settings menu hectare meter impulses (= Impulse ha-Zähler) - Possibility to input no. of impulses independent of Note! the respective machine. • Press “MENU” key The control Note! Value input will be overwritten during a 100 - Menu base setting appears obtains data for m equalization.

  • Page 62: Main Menu

    poWer conTrol - operaTion Main menu Reference surface hectare meter - Displays the actual status Note! • Press “MAIN” key For further information see section “Hectare meter” The main menu can - The actual control status is shown on the display. be exited in the following ways: Use the keys...

  • Page 63: Seed Menu

    poWer conTrol - operaTion Seed Menu Reduce output Note! Press key • Press “Seed menu” key The seed menu can - Seed quantity is reduced (in a definite example - Information about seed type and amount of seed be exited in the around 10%) is shown on the display following ways:...

  • Page 64: Calibration Menu (Abdrehen)

    poWer conTrol - operaTion Calibration menu (Abdrehen) Press O.K. key (F) Note! • Press “ Calibration menu” key Calibration serves - “Calibration” (Abdrehen) menu appears to determine the exact seed quantity. The control “Power An inquiry asks if the calibration procedure is to be Control”...
  • Page 65 poWer conTrol - operaTion - After 10 registered seed drive rotations The control calculates a theoretical set quantity “Soll” from the given values - Indicator in display “Finish rotations” and “Empty Note! troughs” The actual quantity “Ist” is the real yielded seed quantity.

  • Page 66: Hectare Meter

    poWer conTrol - operaTion hectare meter Directly input the number of impulses • Press “Special menu” key • Press “hectare meter” key - Select “Hectare meter impulses” using arrow - The power Control has 2 hectare meters at its keys disposal Shows the actual meter stand of the reference surface hectare meter and...

  • Page 67: Electronic Seed Quantity Adjustment

    poWer conTrol - operaTion Electronic seed quantity adjustment Seed reference Note! • Select “Seed reference” using arrow keys Press “Special menu” key with help from the electronic seed • Base setting menu appears quantity adjust- ment, the seed quantity can be adjusted exactly - Confirm with OK from the tractor...

  • Page 68: Driving Lane Switching

    poWer conTrol - operaTion Driving lane switching Special driving lanes Special driving lanes are special types Press “Special menu” key A selected timing sequence here always qualifies a special driving lane elements order on the seed drill. • Menu base setting appears •...

  • Page 69: Stutter Switch

    poWer conTrol - operaTion Stutter switch With the stutter switch, when putting down the driving lane, the lane is not left open over the entire length but alternately seeded and left open. Example: With a symmetrical cycle the left tractor lane is seeded for 5m while the right tractor lane is left open.

  • Page 70: Monitoring Functions

    poWer conTrol - operaTion Monitoring functions Monitoring: Level The tank content is acquired and monitored through Note! The Power Control can monitor the following machine an analogue level measurement. functions: seed shaft, level, blower rpm, and calibration Basically it is so: •...

  • Page 71: Alarms

    poWer conTrol - operaTion Alarms Level alarm Note! If seed level falls below a minimum level in the seed - Monitoring will only become active when the seed container, an optical and acoustic alarm is triggered. Optical alarm: monitor registers speed. blinking indicator - If an activated monitor reacts then a corresponding alarm will respond.

  • Page 72: Sensor Test

    poWer conTrol - operaTion Sensor test The sensor test enables all sensors, the servomotor and the onboard voltage to be checked. Press “Special menu” key • Menu base setting appears - Select menu level using arrow keys Sensor test Confirm with OK In the first screen check the sensors for: driving lane, seed shaft, hectare meter and level: - Metal on front of sensor:...

  • Page 73: Supplement

    sUppleMenT GB-Anhang Titelblatt _BA-Allgemein...
  • Page 74 The original cannot be copied ... Things will run better with genuine Pöttinger parts • Quality and precise fitting The decision must be made, ”original” or ”imitation”? The decision is often governed by price and a ”cheap buy” can sometimes be very expensive. - Operating safety.

  • Page 75: Recommendations For Work Safety

    Recommendations for work safety sUppleMenT - a Recommendations for work safety 6.) Transport of persons prohibited All points refering to safety in this manual are indicated a. The transport of persons on the machine is not permitted. by this sign. b.

  • Page 76: Combination Of Tractor And Mounted Implement

    iMporTanT! aDDiTional inforMaTion Combination of tractor and mounted implement The mounting of implements on the front or rear three point linkage shall not result in exceeding the maximum permissible weight, the permissible axle loads and the tyre load carrying capacities ot the tractor. The front axle of the tractor must always to be loaded with at least 20 % of the unladen weight of the tractor.
  • Page 77 iMporTanT! aDDiTional inforMaTion 3. CALCULATION OF THE REAL FRONT AXLE LOAD T V tat (If with the front mounted implement (G ) the required minimum front ballasting (G ) cannot be reached, the weight of the front mounted V min implement has to be increased to the weight of the minimum ballasting at the front!) Record the calculated real front axle load and the permissible front axle load of the tractor into the table.
  • Page 78 Table Sowing table for AEROSEM 300, 3000 (3,0 m working width) Seed Barley Oats wheat Chute position Proportioning wheel Coarse proportioning Coarse proportioning Coarse proportioning Coarse proportioning setting wheel III wheel III wheel III wheel III Butterfly flap position...
  • Page 79 Table Sowing table for AEROSEM 300, 3000 (3,0 m working width) Rape, incrusted Seed Rape grass seed Clover (without agitator finger) Chute position Fine proportioning wheel Fine proportioning wheel Fine proportioning wheel Proportioning wheel Coarse proportioning setting wheel III...
  • Page 80 Table Sowing table for AEROSEM 300, 3000 (3,0 m working width) Seed green-eyed peas Field beans Phacelia Sunflowers Chute position Fine proportioning wheel Fine proportioning wheel Proportioning wheel Coarse proportioning Coarse proportioning setting wheel wheel I + II Butterfly flap position...
  • Page 81 soWing Table Sowing table for AEROSEM 400, 4000 (4,0 m working width) Seed Barley Oats wheat Chute position Proportioning wheel Coarse proportioning Coarse proportioning Coarse proportioning Coarse proportioning setting wheel III wheel III wheel III wheel III Butterfly flap position Normal- and coarse seed Normal- and coarse seed Normal- and coarse seed Normal- and coarse seed 10,0 10,0...
  • Page 82 soWing Table Sowing table for AEROSEM 400, 4000 (4,0 m working width) Rape, incrusted Seed Rape grass seed Clover (without agitator finger) Chute position Fine proportioning wheel Fine proportioning wheel Fine proportioning wheel Proportioning wheel Coarse proportioning setting wheel III Butterfly flap position Fine seed Fine seed...
  • Page 83 soWing Table Sowing table for AEROSEM 400, 4000 (4,0 m working width) Seed green-eyed peas Field beans Phacelia Sunflowers Chute position Fine proportioning wheel Fine proportioning wheel Proportioning wheel Coarse proportioning Coarse proportioning setting wheel wheel I + II Butterfly flap position Normal- and coarse seed Normal- and coarse seed Fine seed Normal- and coarse seed...
  • Page 84 soWing Table Sowing table for AEROSEM 4500 (4,5 m working width) Seed Barley Oats wheat Chute position Proportioning wheel Coarse proportioning Coarse proportioning Coarse proportioning Coarse proportioning setting wheel III wheel III wheel III wheel III Butterfly flap position Normal- and coarse seed Normal- and coarse seed Normal- and coarse seed Normal- and coarse seed 11,3 11,3 11,3...
  • Page 85 soWing Table Sowing table for AEROSEM 4500 (4,5 m working width) Rape, incrusted Seed Rape grass seed Clover (without agitator finger) Chute position Fine proportioning wheel Fine proportioning wheel Fine proportioning wheel Proportioning wheel Coarse proportioning setting wheel III Butterfly flap position Fine seed Fine seed Normal- and coarse seed...
  • Page 86 soWing Table Sowing table for AEROSEM 4500 (4,5 m working width) Seed green-eyed peas Field beans Phacelia Chute position Fine proportioning wheel Proportioning wheel Coarse proportioning Coarse proportioning setting wheel wheel Butterfly flap position Normal- and coarse seed Normal- and coarse seed Fine seed 11,3 11,3...
  • Page 87 soWing Table Sowing table for AEROSEM 6000 (6,0 m working width) Seed Barley Oats wheat grass seed Chute position Proportioning wheel Coarse proportioning wheel III setting Butterfly flap position Normal- and coarse seed 10,0 10,0 10,0 10,0 10,0 Tier spacing (cm) 11,5 11,5 11,5...
  • Page 88 soWing Table Sowing table for AEROSEM 6000 (6,0 m working width) Rape, incrusted Seed green-eyed peas Field beans Phacelia Clover Rape (without agitator finger) Chute position Fine proportioning wheel Proportioning wheel Coarse proportioning wheel III setting Butterfly flap position Normal- and coarse seed Fine seed 10,0 10,0...
  • Page 89 Appendix 1 EC Certificate of Conformity conforming to EEC Directions 98/37/EG PÖTTINGER Sätechnik GmbH We ______________________________________________________________________ (name of supplier) D-06406 Bernburg; Zimmerstr. 16 __________________________________________________________________________________ (full address of company - where this concerns authorized agents within the Common Market, also state the company name and manufacturer) declare in sole responsibility, that the product Seed drill...
  • Page 90 Im Zuge der technischen Weiterentwicklung La société PÖTTINGER Landtechnik GmbH Following the policy of the PÖTTINGER arbeitet die PÖTTINGER Landtechnik améliore constamment ses produits grâce Landtechnik GmbH to improve their products GmbH ständig an der Verbesserung ihrer au progrès technique. as technical developments continue, Produkte.
  • Page 91 PÖTTINGER Landtechnik GmbH A-4710 Grieskirchen Telefon: +43 7248 600-0 Telefax: +43 7248 600-2513 e-Mail: info@poettinger.at Internet: http://www.poettinger.at PÖTTINGER Deutschland GmbH Verkaufs- und Servicecenter Recke Steinbecker Strasse 15 D-49509 Recke Telefon: +49 5453 9114-0 Telefax: +49 5453 9114-14 e-Mail: recke@poettinger.at PÖTTINGER Deutschland GmbH Servicecenter Landsberg Spöttinger-Straße 24 Postfach 1561...
