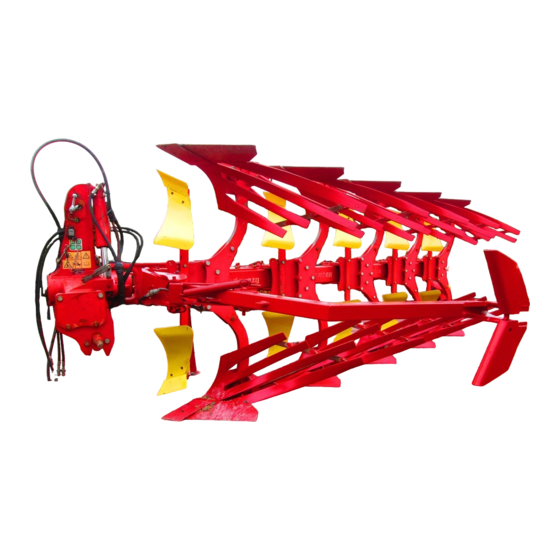

Summary of Contents for Pottinger SERVO 55

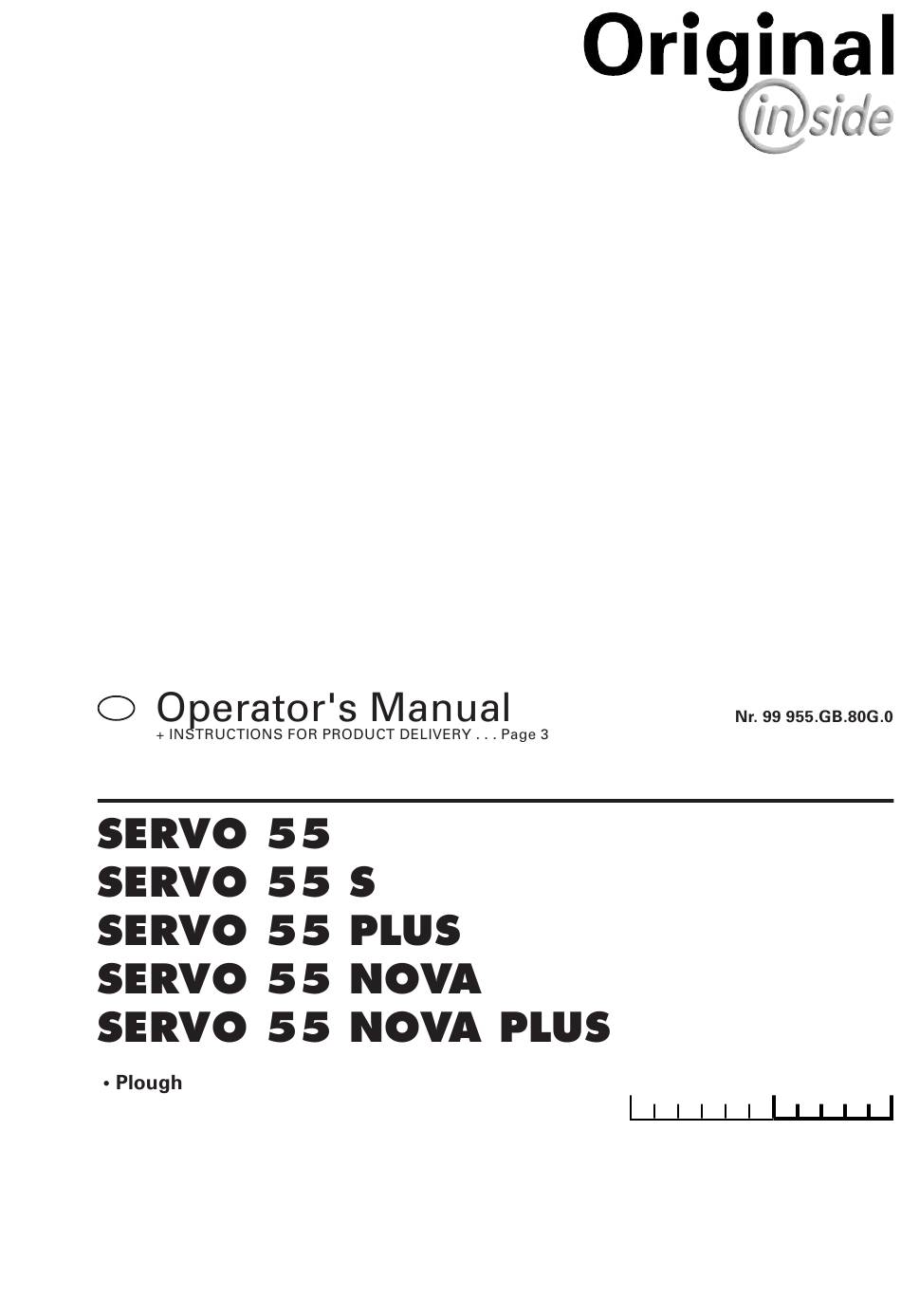

- Page 1 Ihre / Your / Votre • Masch.Nr. • Fgst.Ident.Nr.
- Page 2 Dear Farmer You have just made an excellent choice. Naturally we are very happy and wish to congratulate you for having chosen Pöttinger. As your agricultural partner, we offer you quality and efficiency combined with reliable servicing. In order to assess the spare-parts demand for our agricultural machines and to take these demands into consideration when developing new machines, we would ask you to provide us with some details.
- Page 3 INSTRUCTIONS FOR Dokument PRODUCT DELIVERY PÖTTINGER Landtechnik GmbH Industriegelände 1 A-4710 Grieskirchen Tel. 07248 / 600 -0 Telefax 07248 / 600-2511 In accordance with Product Liability obligations, we would ask you to please check the following points. Cross where applicable. ❑...
-
Page 4: Table Of Contents
Contents Meaning of warning signs .....................................5 Preparations on the tractor ....................................6 Hydraulic control on the lifting gear ..................................6 Hydraulic connection ......................................7 Preparations on the plough ....................................7 Attaching to the tractor ......................................8 Removal from tractor ......................................8 Garaging, cleaning and winter storage of the implement .............................8 Before driving to the field ......................................9 Setting the plough to the tractor using "Servomatic"... -
Page 5: Meaning Of Warning Signs
CE sign The CE sign, which is affixed by the manufacturer, indicates outwardly that this machine conforms to the engineering guideline regulations and the other relevant EU guidelines. EU Declaration of Conformity (see supplement) By signing the EU Declaration of Conformity, the manufacturer declares that the machine being brought into service complies with all relevant safety and health requirements. -
Page 6: Preparations On The Tractor
Preparations on the tractor General Please observe the power range limits of the tractor being used. Wheels - Air pressure in the tractor’s rear tyres when ploughing should be 0.8 bar. - Under difficult operating conditions additional wheel weights can be advantageous. -
Page 7: Hydraulic Connection
Hydraulic connection • If the tractor has a single-action servo-valve only, it is absolutely necessary to have an oil return line (T) professionally installed. - Connecting pressure line (1) and oil return line (2). 1 Single-action control unit Type SERVO, SERVO NOVA 1 Double-action control unit Type SERVO, SERVO NOVA + 1 Double-action control unit... -
Page 8: Attaching To The Tractor
Attaching to the tractor Important advice: Supportstand in the working position Safety advice: • Insert pin only in the first hole (pos. 1). See supplement A1, Pt. 8a-h • Do not use holes in pos. 2 - 8 - Switch tractor’s hydraulics to control position. - otherwise support stand will be damaged when turning - Attach implement to lower link and secure with linch pin. -
Page 9: Before Driving To The Field
PRESETTING THE PLOUGH Before driving to the field Set furrow width Five furrow widths can be selected on the standard model (SERVO). The furrow width is set by swivelling the anchoring console. - Loosen both hexagonal screw (SK). - Remove rear hexagonal screw. - Swivel anchoring console until the required furrow width is obtained and the hexagonal screw fits into one of the borings (1, 2, 3, 4, 5). -
Page 10: Setting The Plough To The Tractor Using "Servomatic
Setting the plough to the tractor using "SERVOMATIC" „SERVOMATIC“ enables the optimum adaption of plough to tractor. The following setting controls should be carried out in order. • Never reach into the area where danger of crushing exists as long as parts are still moving. •... -
Page 11: Turning The Plough Over
Turning the plough over Beware! Nobody is to stand within the swinging range during turning. Turning procedure is only to be actuated from the tractor cabin. The plough must be completely raised to turn. The turning unit is equipped with a double-action cylinder and intergrated automatic reversing gear. -
Page 12: Ploughing With Control Hydraulic
Ploughing with control hydraulic So that the hydraulic control functions properly, the following must be observed. - Position upper link (1) so that the attachment point (P1) on the plough during operation is somewhat higher than the attachment point (P2) on the tractor. -
Page 13: Shear Bolts
Shear bolts The ploughing components are fastened with shear bolts. When overloaded the shear bolts break (30) and the ploughing component swings away and up. - Remove the rest of the shear bolt. - Loosen hexagonal bolt (31). - Swing ploughing component back into the working position. - Insert new shear screws and retighten both bolts. -
Page 14: Fully Automatic „Nonstop" Overload Safety
Fully automatic „Nonstop“ overload safety Nitrogen pressure in the gas accumulator (43) (Factory set) 80 bar The fully automatic overload safety is recommended for soils which are difficult to plough e.g. soil with stones or other foreign Pressure adjustment area of the hydraulic cylinder (40) bodies. -
Page 15: Gas Accumulator (43)
Gas accumulator (43): Pressure in the gas accumulator can also be altered. A reduction or increase of gas pressure in the accumulator depends upon the various soil types. • With very light soil the gas pressure can be somewhat reduced. Important! •... -
Page 16: General Maintenance Advice
General maintenance advice Cleaning the machine parts Take note! In order to keep the implement in good condition even after a long Do not use a high pressure cleaner to clean bearings or hydraulic service life, please observe the following points: parts. -
Page 17: Setting The Ploughing Component Tilt
Setting the ploughing component tilt If the plough is not penetrating the ground correctly, an improvement can be obtained by turning the eccentric bush. • The blade point in the area „S“ is set either higher or lower depending upon the position of the eccentric bush (A or B). •... -
Page 18: Setting The Disk Coulter
Setting the disk coulter • Set the cutting depth of the disk coulter at a gap of 5 cm to the ploughing blade tip. • The lengthwise fitting position is preselected by moving the carrier on the console. Further fitting positions arise by swivelling the eccentric (50) 180°. -
Page 19: Pre-Ploughing Implements
Pre-ploughing implements: Maize skimmer, Manure skimmer These implements are designed to incorporate surface trash straw or manure in the soil. • Set the working depth to 1/3 of the total working depth. • The lengthwise fitting position should lie over or behind the ploughing blade tip. -
Page 20: Double Feeler Wheel
Double feeler wheel • The double feeler wheel is fitted to the last ploughing component. • The working depth is set via the spindle (70) using the accompanying ratchet. • When ploughing with a 4 blade plough the double feeler wheel can be fitted to the second last ploughing component. -
Page 21: Combi-Wheel (Feeler And Transport Wheel)
COMBI-wheel (Feeler and transport wheel) working position As feeler wheel • The working depth is set using the spindle (1) If the adjustment range of the spindle is insufficient, the working depth can be additionally set using both adjusting screws (2). In both turning positions the varying working depths can also be levelled out with the screws (2). -
Page 22: Transport-Feeler Wheel
- Attach upper link and lift the plough with the tractor’s lifting gear. - Release locks (for safety reasons do this from the tractor seat with the rope Tyres SERVO 45, SERVO 55 With that swivel the control lever 90° (position A1). 10.0/75-12 10 PR - The turning unit positions the plough vertically. -
Page 23: Extension Arm With Hydraulic Releasing Device For Packer And Trailing Implements
Optional equipment Extension arm with hydraulic releasing device for packer and trailing implements • A double-action control unit is necessary on the tractor. • The extension arm is fitted to the main frame. • A T screw fitting with a plug-in coupling sleeve is fitted to the return line (T) on the plough turning cylinder. Working position •... -
Page 24: Disconnect The Arm
Disconnect the arm 1. Disconnect the hydraulic pipe (Hyd) 2. Take away the two axles (B1, B2) 3. Take the arm from the bearings Adjusting the amortisation effect With the arm two springs are delivered (F1,F2) They reduce shocks wenn the trailing implement is penetrating Depending on the weight of the trailing implement it is necessary to chose the right spring... -
Page 25: Defined Use Of The Plough According To The Manufacturer's Instructions
Vehicle Identification Plate • The implement’s exact designation and its fittings (frame height, component form, ...) are imprinted in the section „Type“. • The factory number is imprinted on the vehicle identification plate (as shown opposite) and on the attachment frame. Guarantee claims and queries cannot be processed without the serial number being supplied. -
Page 26: Technical Data
1870 kg 118 / 160 SERVO 55-N500 5 (4+1) 100 cm 82 cm 30 - 50 cm 1870 kg 118 / 160 SERVO 55 NOVA PLUS Power requirement from Type Blades Component distance Frame height Cutting width Weight (kW / PS) -
Page 27: Optional Equipment
Optional Equipment Trashboard Leg deflector Guiding plate Knife coulter Landside saver UW, UWS, W, WSS. U, UW, UWS, W, WSS. U, UW, UWS. U, UW, W, WSS. UW, UWS, W, WSS Maize mulcher Manure mulcher - skim coulter ME 50/25 Smooth disk coulter Cutaway disk coulter Subsoiler... -
Page 28: Plough Body Forms
9300 GB AUSRÜSTUNGEN - 28 -... -
Page 29: Servo Model
SERVO model SERVO PLUS model A standard plough variation Standard plough consisting of consisting of a. - a. Standard cutting width adjustment b. Four-bar lever 5 settings possible using screws b. Four-bar lever c. - d. Hydraulic cutting width adjustment - unlimited setting possible using hydraulic cylinder. - Page 30 SUPPLEMENT GB-Anhang Titelblatt _BA-Allgemein...
- Page 31 • Quality and precise fitting The decision must be made, ”original” or ”imitation”? The decision is often governed by price and a ”cheap buy” can sometimes be very expensive. - Operating safety. • Reliable operation • Longer lasting - Economy •...
- Page 32 Recommendations for work safety SUPPLEMENT - A Recommendations for work safety 6.) Transport of persons prohibited All points refering to safety in this manual are indicated a. The transport of persons on the machine is not permitted. by this sign. b.
-
Page 35: Combination Of Tractor And Mounted Implement
Important! Additional Information Combination of tractor and mounted implement The mounting of implements on the front or rear three point linkage shall not result in exceeding the maximum permissible weight, the permissible axle loads and the tyre load carrying capacities ot the tractor. The front axle of the tractor must always to be loaded with at least 20 % of the unladen weight of the tractor. - Page 36 Important! Additional information Combination of tractor and mounted implement CALCULATION OF THE REAL FRONT AXLE LOAD T V tat (If with the front mounted implement (G ) the required minimum front ballasting (G ) cannot be reached, the weight of the front mounted V min implement has to be increased to the weight of the minimum ballasting at the front!) Record the calculated real front axle load and the permissible front axle load of the tractor into the table.
- Page 37 ALOIS PÖTTINGER Maschinenfabrik Gesellschaft m.b.H. A-4710 Grieskirchen; Industriegelände 1 SERVO 55, SERVO 55 PLUS, SERVO 55 NOVA, SERVO 55 NOVA PLUS EN 292-1 : 1991 EN 292-2 : 1991 pa. Ing. H. Menzl Entwicklungsleitung Grieskirchen, 15.01.2003...
- Page 38 Im Zuge der technischen Weiterentwicklung La société PÖTTINGER Landtechnik GmbH Following the policy of the PÖTTINGER arbeitet die PÖTTINGER Landtechnik améliore constamment ses produits grâce Landtechnik GmbH to improve their products GmbH ständig an der Verbesserung ihrer au progrès technique. as technical developments continue, Produkte.
- Page 39 PÖTTINGER Landtechnik GmbH A-4710 Grieskirchen Telefon: +43 7248 600-0 Telefax: +43 7248 600-2513 e-Mail: info@poettinger.at Internet: http://www.poettinger.at PÖTTINGER Deutschland GmbH Verkaufs- und Servicecenter Recke Steinbecker Strasse 15 D-49509 Recke Telefon: +49 5453 9114-0 Telefax: +49 5453 9114-14 e-Mail: recke@poettinger.at PÖTTINGER Deutschland GmbH Servicecenter Landsberg Spöttinger-Straße 24 Postfach 1561...
