USER GUIDE | UG:801
VITA62 3U Evaluation Board
Contents
Page
Introduction
Contents
Features
Recommended Parts
(not included)
Board Description
General Components
Bill of Materials
Connection Cross-Reference
2
Testing I
C Communication 10
1
2
2
2
3
3
8
9
Introduction

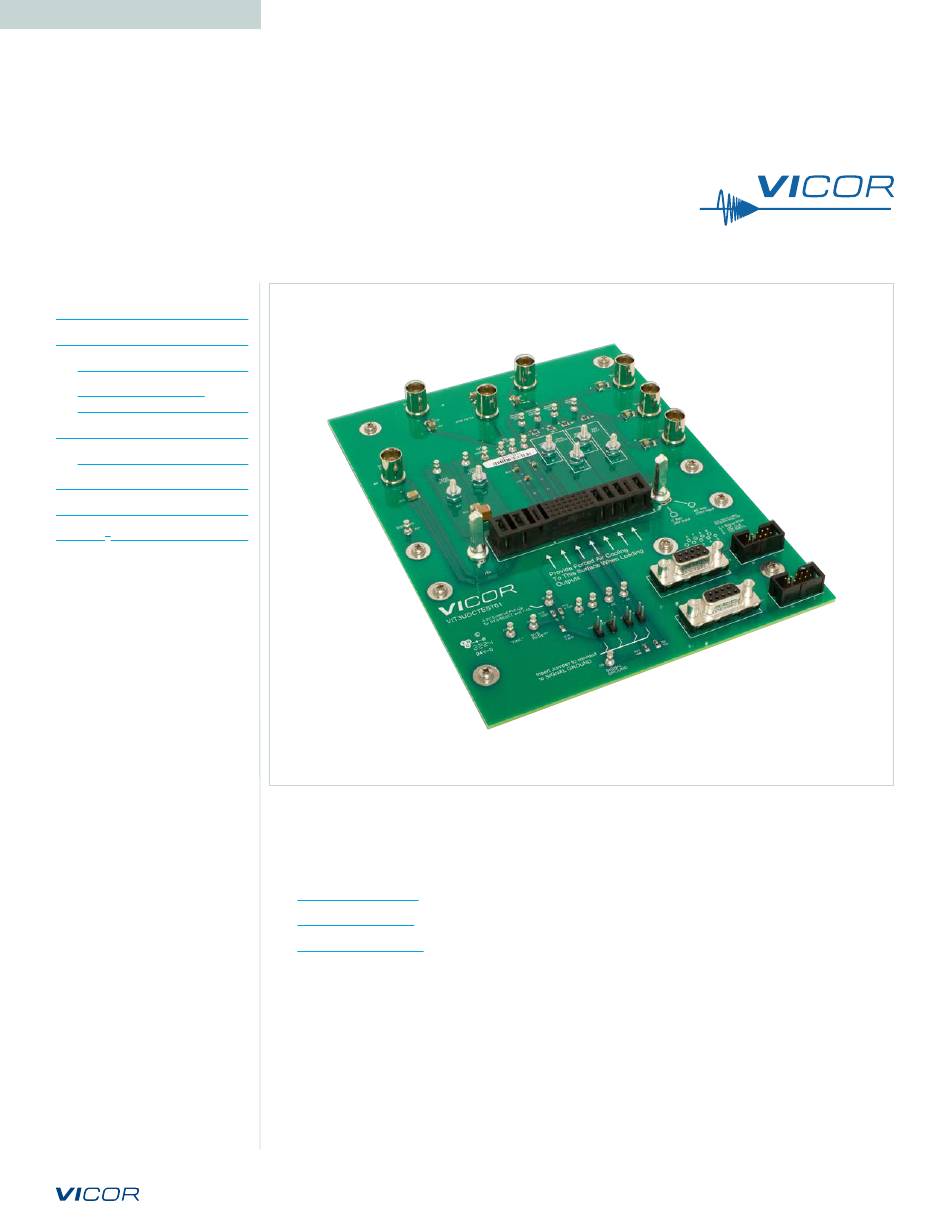

The VITA62 3U evaluation platform described in this document is primarily designed to be used with the
following power supplies.
1.
VIT028x3U600y000
2.
VIT270wxx600yzzz
3.
SOS028x3U800y000
The focus of this document is to assist the user in using the evaluation platform with 3U form factor
VITA62 and SOSA™-aligned power supplies.
It is important to remember that power supplies evaluated with this test platform have no means of
cooling other than through natural convection. If power supplies are left powered on for extended
periods of time, they will overheat. It is recommended to use forced-air cooling aimed at the heat sink
of the power supply to provide active forced cooling when the unit is powered on.
(requires removal of guide pin KM1)
UG:801
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VITA62 3U and is the answer not in the manual?

Questions and answers

Related Manuals for VICOR VITA62 3U

Summary of Contents for VICOR VITA62 3U

  • Page 1 Bill of Materials Connection Cross-Reference Testing I C Communication 10 Introduction The VITA62 3U evaluation platform described in this document is primarily designed to be used with the following power supplies. VIT028x3U600y000 VIT270wxx600yzzz SOS028x3U800y000 (requires removal of guide pin KM1) The focus of this document is to assist the user in using the evaluation platform with 3U form factor VITA62 and SOSA™-aligned power supplies.

  • Page 2: Important Notice

    IMPORTANT NOTICE: Read the precautions below entirely BEFORE using the VITA62 3U Evaluation Board. Do not operate the evaluation board unless you have the appropriate safety precautions in place on your bench to guarantee safety. The list below is not comprehensive and is not a substitute for common sense and good practice.

  • Page 3: Board Description

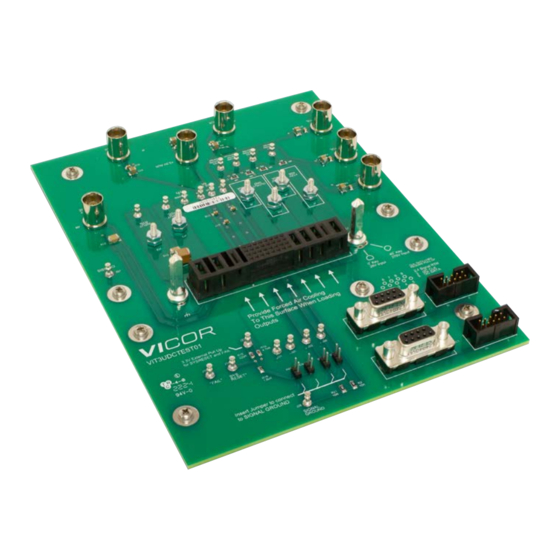

    Evaluation board photo General Components VITA62 3U Connector: Slot to plug in one VITA62 or SOSA-aligned 3U power supply. Compatible models are listed on page 1. Guide Pins (KM1 and KM2): KM1 and KM2 are both connected to each other and CHASSIS on the VITA62 connector.
  • Page 4 10. Enable and Inhibit Jumpers (ENABLE and INHIBIT): If left unconnected both control lines will be pulled up to 3.3V inside the Vicor power supply. Left unconnected, the power supply will start up with all outputs disabled. Connecting a jumper across each control line will connect each pin to Signal Ground directly.
  • Page 5 Figure 2a VIT3UDCTEST01 evaluation board photo, top side UG:801 Page 5...
  • Page 6 Figure 3a VIT3UDCTEST01 evaluation board schematic -12V_AUX 0.10µF 10µF 0.10µF 100V 100V 1-1469491-2 +DC_IN PWR_RTN -DC_IN POWER SUPPLY 1 CHASSIS +5V_SENSE 0.10µF 10µF 100V SENSE_RTN ENABLE FAIL INHIBIT +12V_AUX +3.3V_AUX +3.3V_AUX +3.3V_AUX +3.3V_AUX +12V_SENSE GA0_PS1 SM1-I2C1_DATA GA1_PS1 SM0-I2C1_CLK 0.10µF SM2-I2C2_CLK SYS_RESET 10µF 100V...
  • Page 7 Figure 3b VIT3UDCTEST01 evaluation +12V AARDVARK2 +DC_IN board schematic, cont. SIGNAL_RTN SM0-I2C1_CLK SM1-I2C1_DATA SIGNAL_RTN TST-105-02-G-D AARDVARK1 +3.3V SIGNAL_RTN SM2-I2C2_CLK SM3-I2C2_DATA -DC_IN SIGNAL_RTN TST-105-02-G-D PWR_RTN I2C1 SIGNAL_RTN SM0-I2C1_CLK SIGNAL_RTN SM1-I2C1_DATA LD09S24A4GV00LF I2C2 SIGNAL_RTN SM2-I2C2_CLK SIGNAL_RTN SM3-I2C2_DATA LD09S24A4GV00LF STD-440-1/2in+Sems-Screw STD-440-1/2in+Sems-Screw STD-440-1/2in+Sems-Screw INHIBIT INHIBIT TSW-102-07TS SIGNAL_RTN...

  • Page 8: Bill Of Materials

    Bill of Materials The following table describes the components of the VITA62 3U evaluation board. Table 2 Reference Manufacturer Quantity Description Manufacturer VITA62 3U evaluation Designator Part Number board components R1, R6, 0Ω 1206 YAGEO RMCF1206ZT0R00 R7, R9 R2, R21 10Ω...
  • Page 9 Cross-reference for PCB component for power input/output, associated monitoring points and VITA 62 connector contact with description and monitor point. Table 3 Power / Control Item VITA62 Monitor Point Function VITA62 3U connector and Reference Designator Connector Contact Reference Designator monitoring point DC Input RTN cross-reference...
  • Page 10 I C communication using standard I C commands following parent-child responses and not multi-parent communication which is part of the IPMI 2.0 protocol the Vicor power supplies are also equipped with. Sample Python code was developed using: Windows 10 x64 computer, ®...
  • Page 11 Figure 5 Example of data printed when executing script UG:801 Page 11...

  • Page 12: Terms Of Sale

    ANY AND ALL LIABILITY FOR INCLUSION AND/OR USE OF VICOR PRODUCTS IN SUCH EQUIPMENT OR APPLICATIONS AND THEREFORE SUCH INCLUSION AND/OR USE IS AT YOUR OWN RISK. Terms of Sale The purchase and sale of Vicor products is subject to the Vicor Corporation Terms and Conditions of Sale which are available at: (https://www.vicorpower.com/termsconditionswarranty) Export Control This document as well as the item(s) described herein may be subject to export control regulations.
