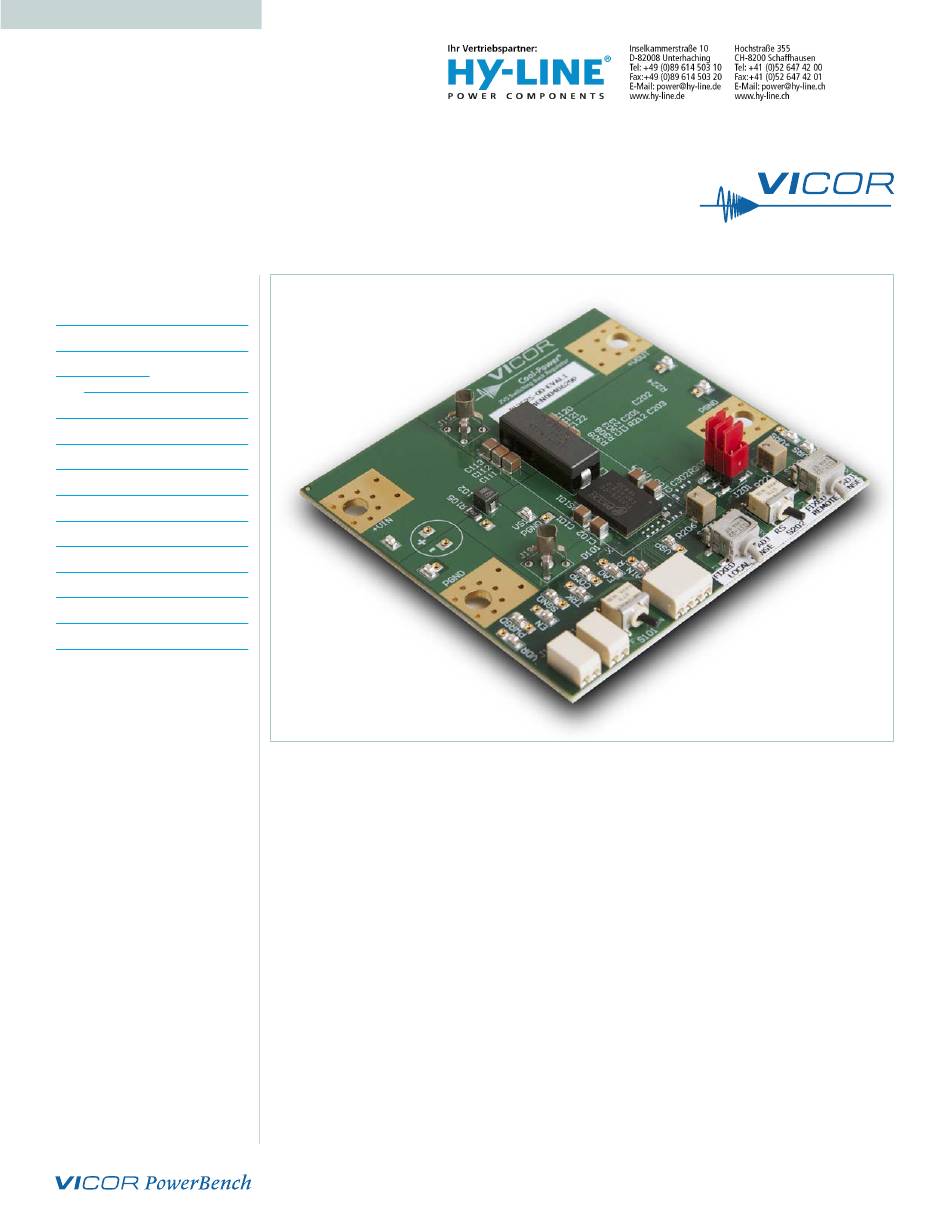

USER GUIDE | UG:307 PI352x-0x-EVAL1 ® Cool-Power ZVS Switching Regulators Buck Customer Eval Board User Guide Contents Page Introduction Box Contents Recommended Test Equipment Features Board Operation Modes Thermal Consideration Power Up Procedure Board Description General Components Test Points Description Sockets Description Schematic Schematic (Cont.)
Page 2
Bill of Materials IMPORTANT NOTICE: Be sure to read the precautions below entirely BEFORE using the Evaluation Board. Do not operate the evaluation board unless you have the appropriate safety precautions in place on your bench to ensure a successful experience. The list below is not comprehensive and is not a substitute for common sense and good practice.
The evaluation board is designed to faciliatate the evaluation of the performance of Vicor’s mounted ZVS buck product. Sockets are provided to permit quick probing. Input sockets can be used to place a bulk capacitor. The evaluation board provides lugs, and bottom layer banana jack footprint for input and output connections, signal connectors allowing wire, signal test points for easy connection to standard test equipment, and Kelvin Johnson-Jack for accurate voltage measurements of power nodes.
Board Operation Modes S101 provides control over enable. In the “OFF” position, the switch will connect SGND pin to the EN net, which disables the regulator output. In the “ON” position, the EN net is allowed to float. The PI352x evaluation board supports the following operating modes: Mode S202 S201...
Direct airflow from the cooling fan towards the evaluation board. 10. Download the latest product datasheet from Vicor power product page and have it on hand for reference 11. Apply input voltage greater than the minimum Input under-voltage lockout start...
Figure 2 Signal Connector and Header Pinout, Front View Remote Sense Remore Loop R214 SGND R211 Local Sense Local Loop J201 Note: Short pins (1 & 2 ; 3 & 4 ; 5 & 6) using Jumpers J110 J109 J108 General Components PI352x family product (PS101) Input lugs: Sized for #10 hardware.
Page 7
Loop compensation mode selection (S202): Used to select one of the following: Local Sense (LS): default. Single ended feedback loop using the internal to the regulator operational transconductance amplifier. +VOUT Lug is the local sensed location. +VOUT lug is connected to the Error Amplifier Inverting Input (EAIN) through a voltage divider network. Remote Sense (RS): Non-isolated remote sensing option using the internal to the regulator independent differential amplifier which outputs (VDIFF) is in turn connected to the transconductance amplifier input (EAIN) pin.
Test Points Description Each square point test point can be used with standard probes, clips or hooks. All test points are labeled on the board. Each test point is accompanied with an adjacent socket for adding a test lead or to facilitate wiring to external circuitry.
Sockets Description Each socket accepts 0.015 – 0.025 inch diameter leads for easy installation of solid wires and through- hole components for use with external circuit and test equipment. Table 2 Reference Designator Sockets Descriptions Functional Name Description (Shown in Assembly Drawing) Input Input voltage test points.
