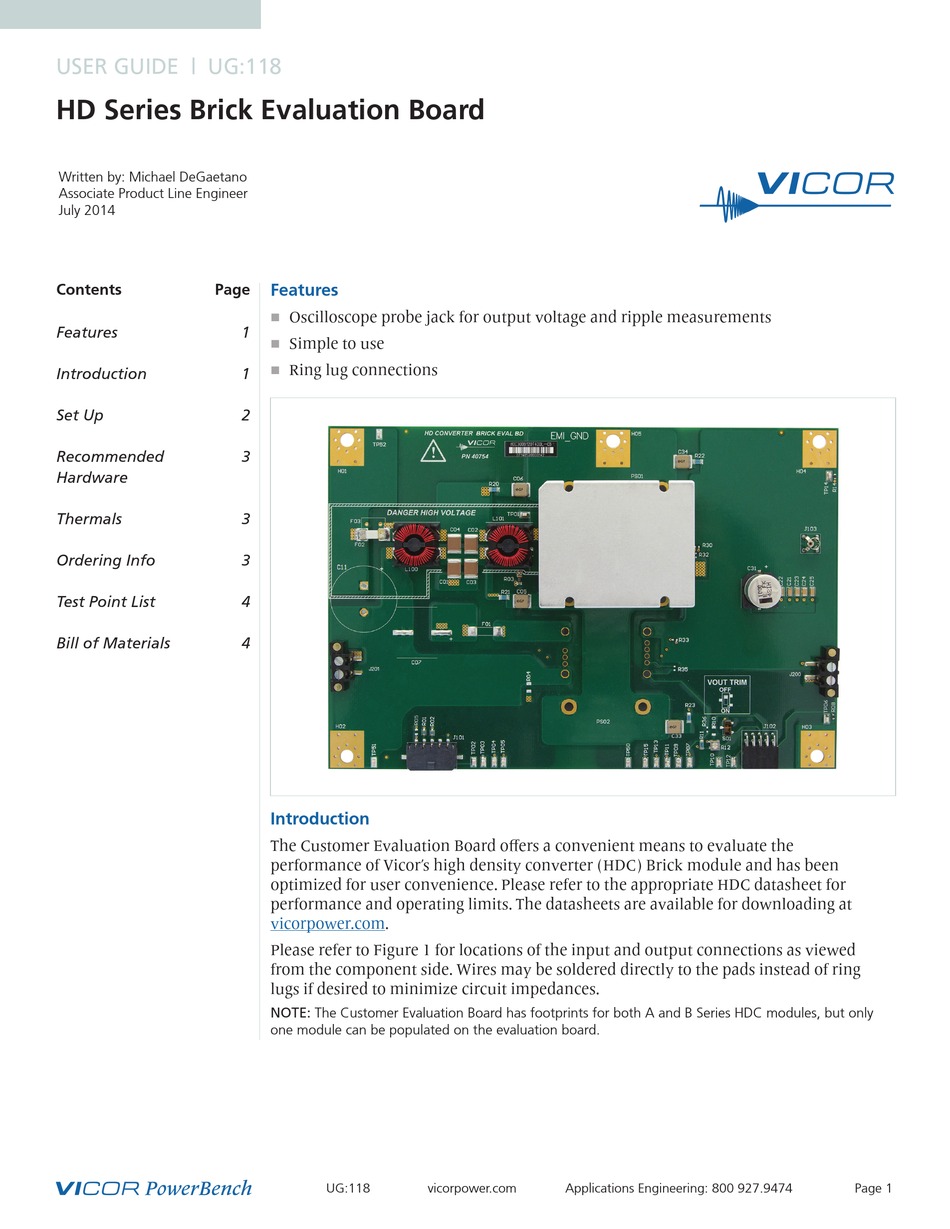

USER GUIDE | UG:118
HD Series Brick Evaluation Board
Written by: Michael DeGaetano
Associate Product Line Engineer
July 2014
Contents
Page

Features

Introduction

Recommended
Hardware
Ordering Info
Features
Oscilloscope probe jack for output voltage and ripple measurements
n
1
Simple to use
n
Ring lug connections
n
1
2
3
3
3
4
4
Introduction
The Customer Evaluation Board offers a convenient means to evaluate the
performance of Vicor's high density converter (HDC) Brick module and has been
optimized for user convenience. Please refer to the appropriate HDC datasheet for
performance and operating limits. The datasheets are available for downloading at
vicorpower.com.
Please refer to Figure 1 for locations of the input and output connections as viewed
from the component side. Wires may be soldered directly to the pads instead of ring
lugs if desired to minimize circuit impedances.
NOTE: The Customer Evaluation Board has footprints for both A and B Series HDC modules, but only
one module can be populated on the evaluation board.
UG:118
vicorpower.com
Applications Engineering: 800 927.9474
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VICOR HD Series

  • Page 1 Introduction The Customer Evaluation Board offers a convenient means to evaluate the performance of Vicor’s high density converter (HDC) Brick module and has been optimized for user convenience. Please refer to the appropriate HDC datasheet for performance and operating limits. The datasheets are available for downloading at vicorpower.com.
  • Page 2 Figure 1. HDC Customer Evaluation Board layout drawing, component side Set Up The Customer Evaluation Board should be set up as follows: Care should be taken to avoid reversing polarities if connecting to the opposite Note: (solder) side of the board. +IN, –IN Connect a high-quality, low noise power supply to the +IN and-IN terminals of the Customer Evaluation Board.
  • Page 3: Ordering Information

    For most lab environments a fan blowing across the evaluation board is recommended. For additional thermal information regarding the HDC refer to the datasheet or contact Vicor Applications Engineering for assistance (800) 927-9474. NOTE: The HDC Customer Evaluation Board can operate between -20 to 100°C.
  • Page 4: Bill Of Materials

    Test Point List Table 1. Test Test Point descriptions Point Description Comments Reference TP01 +HDC_IN +IN of converter after input filter TP02 TP03 -IN of converter after input filter TP05 -HDC_IN TP06 -OUT TP07 SGND TP09 TP10 TP11 VDDB TP12 TP14 +OUT TP52...
  • Page 5 IND COM MODE 11mH No Stock No Stock No Stock No Stock -25%+45% 5.0 A L101 .70x.65 PS01 Model Specific Vicor Model Specific Vicor Model Specific PS02 RES 374K OHM Panasonic P374KCCT-ND Panasonic ERJ-6ENF3743V 1/8 W 1% 0805 RES ZERO OHM...
  • Page 6 Figure 2. HDC Customer Evaluation Board Schematic The Power Behind Performance Rev 1.0 07/14 vicorpower.com Applications Engineering: 800 927.9474 Page 6...
