BestScope International Limited

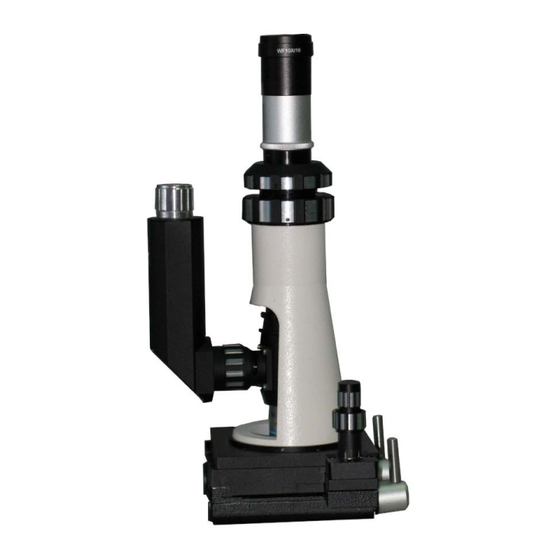

Portable Metallurgical Microscope
Model: BPM-620/620M
Instruction Manual
Content
1. Introduction ......................................................................................2
2. Specification .....................................................................................3
3. Parameters ........................................................................................3
4. Structure ...........................................................................................4
5. Operation ..........................................................................................4
6. Maintenance ......................................................................................5
7. Outfit .................................................................................................5
8. Optional Accessories ........................................................................6
Advertisement
Table of Contents
Related Manuals for BestScope BPM-620
Summary of Contents for BestScope BPM-620
- Page 1 BestScope International Limited Portable Metallurgical Microscope Model: BPM-620/620M Instruction Manual Content 1. Introduction ..................2 2. Specification ..................3 3. Parameters ..................3 4. Structure ...................4 5. Operation ..................4 6. Maintenance ..................5 7. Outfit ....................5 8. Optional Accessories ................6...
- Page 2 BestScope International Limited 1. Introduction BPM-620 portable metallographic microscope is convenient for on-site materials structure identification of various metal and alloy which can not be identified by making samples. It can be widely used in the plant metallographic Laboratories for the metal materials analysis, materials processing identification and the metallographic structure analysis.
- Page 3 BestScope International Limited 2. Specification (1) Objective Type Magnification N.A. System WD(mm) PLL10X 0.25 7.3 mm LWD Plan Metallurgical objective PLL50X 0.70 0.5 mm (2) Eyepiece Type Magnification Field Diameter Ø18 mm Plan Eyepiece 12.5X (optional) Ø13 mm 3. Parameters...
- Page 4 BestScope International Limited 4. Structure (1) Objective (2) Objective base (3) Polarizer slot (4) Microscope Body (5) Focus stop screw (6) Coarse limit screw (7) Coarse adjustment knob (8) Fine adjustment knob (9) Eyepiece tube (10) Eyepiece (11) Analyzer Slot (12) Illumination switch (13) Power indicator.
- Page 5 BestScope International Limited charging, red light indicates charging status, green light means power is sufficient, the charging time is about 2 to 3 hours.(the general charging time can not be more than 8 hours) The electrical part of the microscope is safe, reliable and seldom has failure. If the indicating light can not on, the LED illumination also can not work even after charging.
- Page 6 BestScope International Limited 8. Optional Accessories (1) 25X Plan Metallurgical Objective (2) 60X Plan Metallurgical Objective (3) CCD/CMOS video adapter (4) DSLR photo adapter (5) Magnetic base (6) Special requirements...
