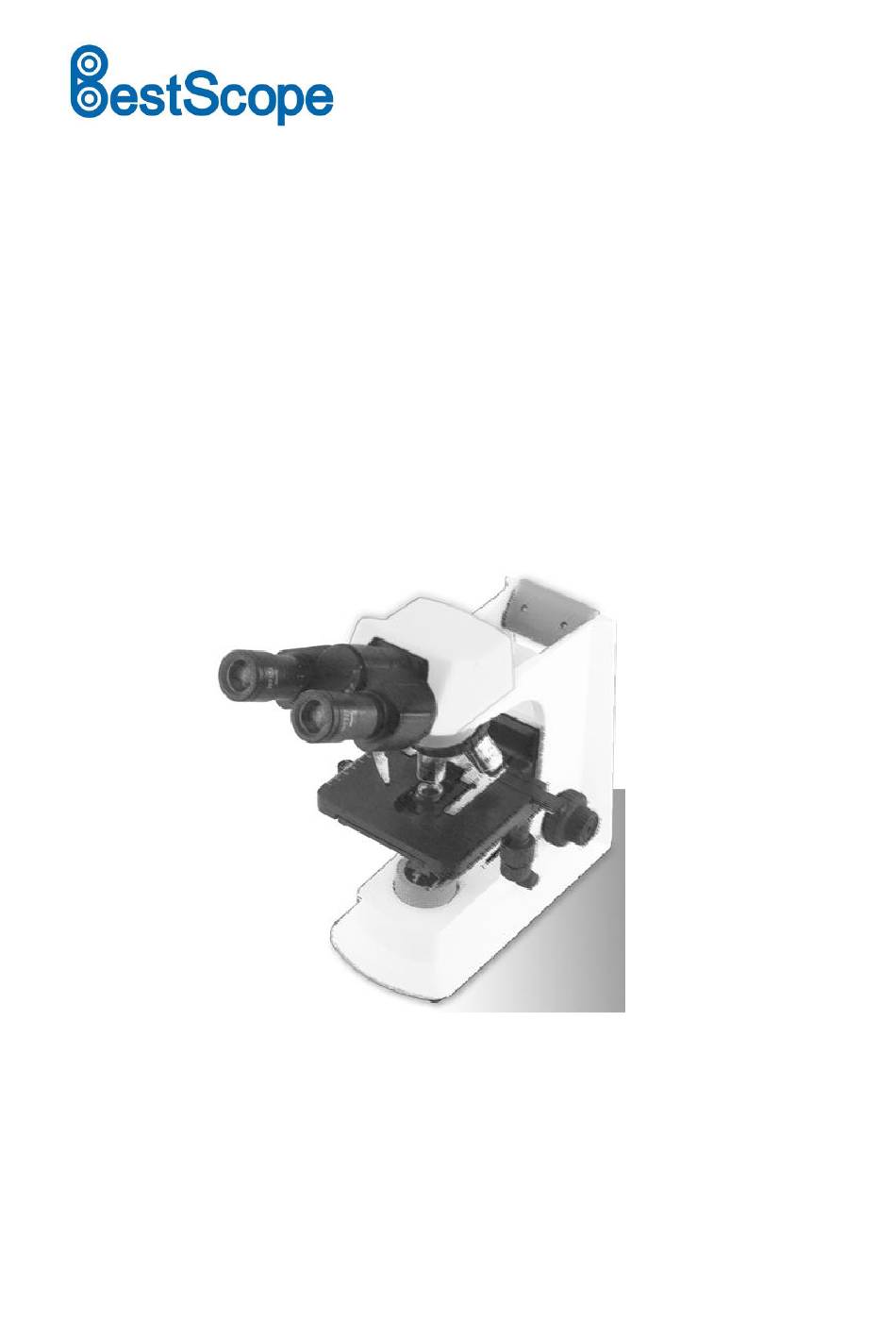

Biological Microscope
Model: BS-2036 Series
Instruction Manual
This manual is written for
BS-2036 Series
biological
microscope.
To ensure the safety, obtain
optimum performance and to familiarize you fully with the use of this microscope, it is
recommended strongly that you study this manual thoroughly before using the microscope and
retain this manual in an easily accessible place near the work desk for future reference.
Advertisement
Table of Contents
Related Manuals for BestScope BS-2036 Series
Summary of Contents for BestScope BS-2036 Series
- Page 1 Biological Microscope Model: BS-2036 Series Instruction Manual This manual is written for BS-2036 Series biological microscope. To ensure the safety, obtain optimum performance and to familiarize you fully with the use of this microscope, it is recommended strongly that you study this manual thoroughly before using the microscope and...
-
Page 2: Table Of Contents
6. Maintenance ……………………………………………………………… 7. Troubleshooting ……………………………………………………………… 8. Outfits ……………………………………………………………… BS-2036 series biological microscopes are designed for college teaching, Medical and clinical identification. The microscope with modern design, steady structure, convenient operation and clear image is suitable for observing various biological specimens, they are mostly applied in colleges and hospitals. -
Page 3: Parts Name
BestScope International Limited 1. Parts Name ① Eyepiece ① ⑧ ② Objective ③ Clamp ④ Mechanical Stage ⑤ Condenser ② ⑥ Light Collector ⑦ Main Body C_③ Seidentopf ④ ⑧ Binocular Head (Trinocular Head) Power Input D_⑤ ⑨ Fuse E_⑥... - Page 4 BestScope International Limited 2.1 Total magnifications Objective Total Magnifications 100X (Optional) Eyepiece 100X 200X 400X 1000X 160X 320X 640X 1600X 2.2 Objectives BS-2036A, BS-2036AT Numerical Objective Resolving Working Achromatic Objective Aperture (N.A.) Field Power Distance 0.10 4.5mm 2.8µm 13mm 0.25 1.8mm...
-
Page 5: Installation
BestScope International Limited 2.3 The other specification 2.3.1 Mechanical tube length: 160mm 2.3.2 Conjugate distance: Infinity (Non- Infinity: 195mm) 2.3.3 Head: Seidentopf Binocular or Trinocular, Inclined 30°, Rotatable 360°, Anti-fungal systems. Interpupillary Adjustable Distance Is 48-75mm, Diopter adjustable range ±5. -
Page 6: Operation
BestScope International Limited eyepiece by hand. 3.4 Condenser Put out the condenser of the carton, then turn Condenser Focusing Knob M to lower condenser installing ring. Loose the condenser screw, then install the condenser, and make the condenser graduation face to the front, Tighten the condenser screw, and higher the condenser installing ring to top. -
Page 7: Image Capture
BestScope International Limited 5. Image Capture 5.1 Installing Connect the C-mount with CCD camera or connect camera with camera adapter, then connect it with c-mount, finally put it into microscope. 5.2 Using First get a clear image from eyepiece, then put out lever on the side of trinocular head, and collect image with camera. -
Page 8: Troubleshooting
BestScope International Limited dust affect bulb brightness and service life, and insert fully the contact pins into the bulb socket. 6.3.6 Close the lamp housing cover, and screw the knurled thumb screw. ▲After working for above 10 hours continuously, better cut off the microscope about 30 minutes. -
Page 9: Outfits
BestScope International Limited Trouble Causation Remedy Size of iris aperture isn’t proper Adjust the size of iris aperture Readjust the position of Position of condenser is too low condenser Make the objective in One side of image is Objective isn’t in correct position... - Page 10 BestScope International Limited 100× (Oil) (S) ● Seidentopf Inclined 30°, Rotatable 360°, Binocular ● ● Interpupilary Distance: 48-75mm Head Seidentopf Binocular Inclined 30°, Rotatable 360°, Head (For ● ● Interpupilary Distance: 48-75mm Infinite System) Inclined 30°, Rotatable 360°, Trinocular Interpupilary Distance 48-75mm, ○...
