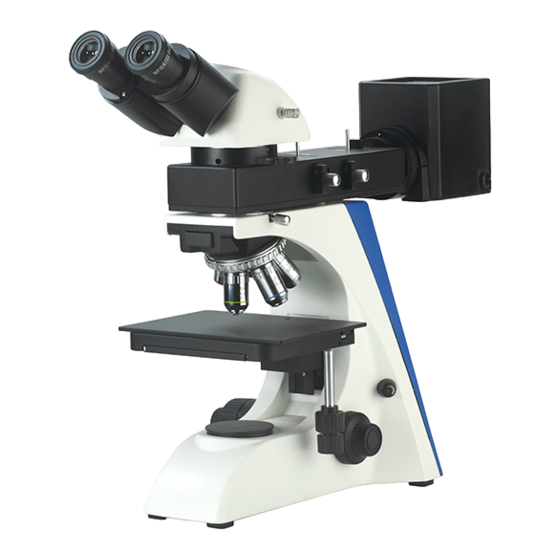

- Page 1 BS-6002 Series Upright Metallurgical Microscope Instruction Manual To ensure the safety and obtain satisfactory performance, please study this operation instruction thoroughly before your operation.
-
Page 2: Table Of Contents
6. Outfits………………………………10 Purpose: BS-6002 series upright metallurgical microscope is designed for factories, universities and relative research institutes. The series microscope with original style, steady structure, convenient operation and clear image is suitable for observing various metallurgical specimens and IT material. -
Page 3: Specifications
BestScope International Limited 1. Specifications 1.1 Total magnifications Objective 2.5X 100X Eyepiece 12.5X 100X 200X 500X 100X 200X 400X 1000X 12.5X 125X 250X 500X 1250X 160X 320X 640X 1600X 1.2 Objectives Numerical Aperture Working Distance Objective Type System Spring (N.A.) (mm) 0.10... -
Page 4: Parts Name
BestScope International Limited 2. Parts Name Frosted Glass Slide C-mount screw Aperture Diaphragm Leve Seidentopf Binocular Halogen lamp house (Trinocular) head Lamp house fixed screw Eyepiece Lamp house screw Diopter adjusting ring Reflection illumination unit Camera pull lever Filter Choosing Slide... - Page 5 BestScope International Limited Halogen Lamp adjusting knob Eyepiece tube fixed screw Power wire Stage plate fixed screw Coarse tension adjusting ring Handle Left coarse focusing knobs Stage up-down Left fine adjusting screw focusing knobs Power house Output socket Input socket...
- Page 6 BestScope International Limited Glass Plate Condenser fixed screw Glass plate stand Potentiometer Condenser (aperture diaphragm lever) Field diaphragm Aperture diaphragm adjusting ring centering screw Polarizer (adjusting ring and fixed screw) Condenser focusing knob Power switch Power socket and Fuse BS-6002BTR/TTR...
-
Page 7: Installation & Operation
BestScope International Limited 3.Installation & Operation 3.1 Installation 1) Put out the main body, loose the body fixed screw. 2) Put out the reflection illumination unit and halogen lamp house, then fix the lamp house into the back of reflection illumination unit by the lamp house fixed screw. Insert the power wire of the lamp house into the power output socket of power house. - Page 8 BestScope International Limited smaller than eyepiece field to adjust again. Larger the field diaphragm to make it disappeared. Image of field diaphragm Range of eyepiece field Before adjusting After adjusting 7) Aperture diaphragm adjustment a. If reflection observing, pull the diaphragm slide handle to choose the available diaphragm.
-
Page 9: Maintenance
BestScope International Limited 4. Maintenance 4.1 Clean microscope 4.1.1 Don’t touch the lens with hand, Dust on lens should be cleaned by soft brush or absorbent cotton or cleaned by absorbent cotton, lens paper with the mixture of alcohol and ether (proportion 1:4). -
Page 10: Troubleshooting
BestScope International Limited 5. Troubleshooting In the period of using microscope, if there is any trouble occurs, please referring to the following sheet listed some common troubleshooting resolve them. Trouble Causation Remedy Plug is unreliable Plug in again Switch on but bulb... -
Page 11: Outfits
BestScope International Limited Trouble Causation Remedy It is easy for eyes to be tired Diopter isn’t adjusted correctly Readjust diopter during observing 6.BS-6002 Series Metallurgical Microscope Outfits Items Specification BS-6002BR/TR BS-6002BTR/TTR WF 10X-20mm ●● ●● WF5X ○○ ○○ Eyepiece WF12.5X ○○... - Page 12 BestScope International Limited Green ○ Yellow ○ ○ ○ C-mount 0.5X ○ ○ Note: “●”In Table Is Standard Attachment. “○” Is Optional Accessories Packing Size: 750mm × 360mm × 450mm Gross Weight: 16 kgs Net Weight: 15 kgs...
