Steris SYSTEM 1 endo Operator's Manual page 77

Changing the Printer
Paper for the Optional
OUTER PRINTER DOOR CLOSED
OUTER PRINTER
DOOR LATCH
PAPER
The printer paper roll must be changed whenever a colored stripe is visible near the end of the paper roll. NOTE: DO
NOT let the paper run out. Data may not be reprinted.
OPEN OUTER PRINTER DOOR
Maintenance
Part 4:
Printer
PAPER FEED
BUTTON
OUTER PRINTER

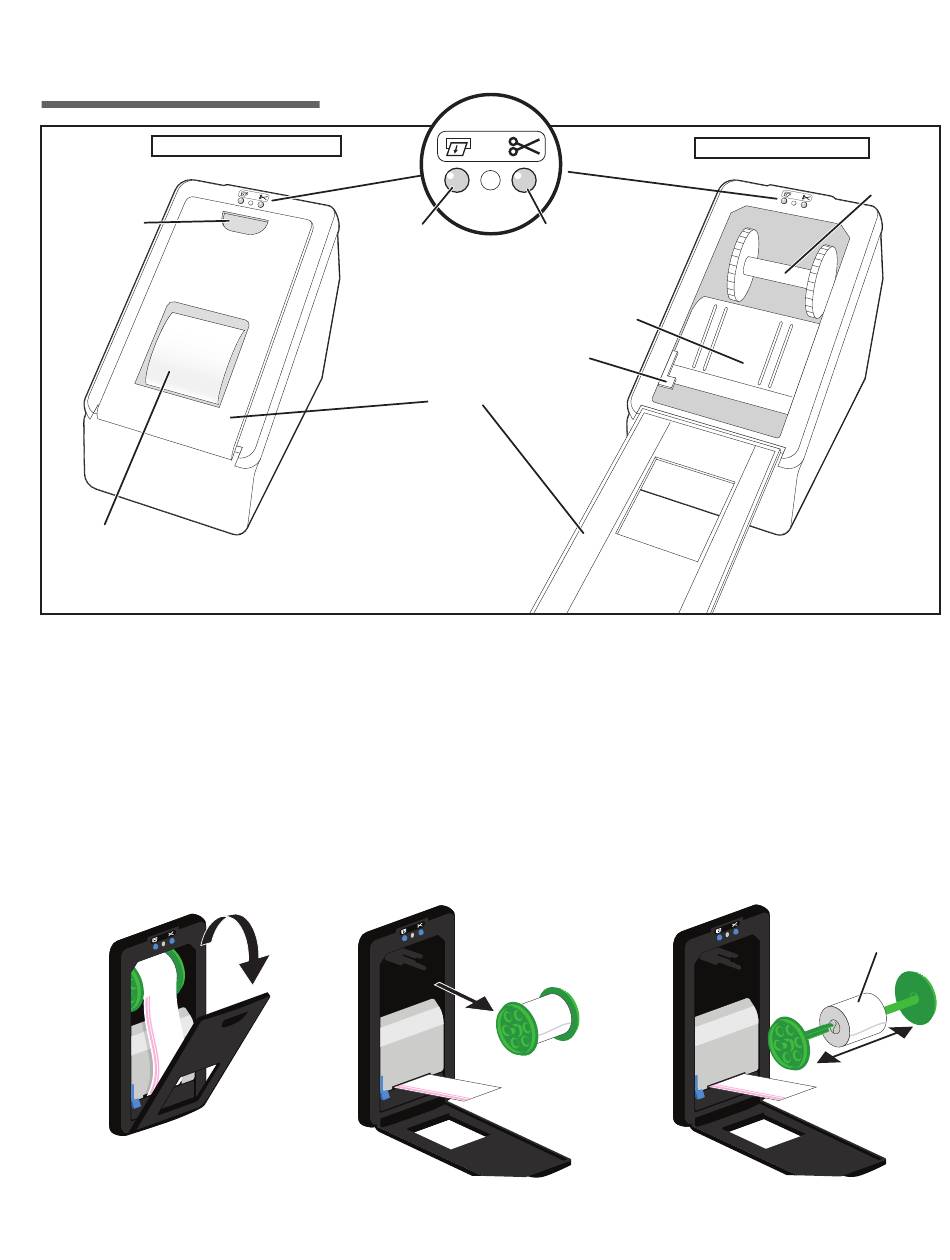

STEP 1
Pull on the top of the outer printer door to open.
STEP 2
Tear the paper or press the scissors button to cut the paper between take-up
spool and the printer -- or -- press the paper feed button so the paper clears
the printer area.
STEP 3
Remove the take-up spool from the printer and pull it apart as shown.
STEP 4
Remove the used paper from the spindle. Keep the spindle halves apart.
REMOVE TAKE UP SPOOL
SYSTEM 1 endo Liquid Chemical Sterilant Processing System
SCISSOR
BUTTON
INNER PRINTER DOOR
(printer paper compartment inside)
INNER PRINTER
DOOR LATCH
DOOR
Operator Manual
OUTER PRINTER DOOR OPEN
TAKE UP SPOOL
PULL APART TAKE UP SPOOL
REMOVE USED PAPER
FROM SPINDLE
T6900 Rev A
