- Page 1 Non-Metallic Zone 1 Loudspeaker Models: GEN-IIB/C and GEN-IIB/C-ISMT Description, Installation, and User Manual 25500655 Rev. A1 0123 Printed in U.S.A. © Copyright 2022-2023 Federal Signal Corporation...
- Page 2 A copy of this limited warranty can also be obtained by written request to Federal Signal Corporation, 2645 Federal Signal Drive, University Park, IL 60484, email to info@fedsig.com or call +1 708-534-3400.
-
Page 3: Table Of Contents
Contents 1.0 Safety Messages..............................4 1.1 Safety Messages to Installers .........................4 2.0 General Description ............................7 2.1 Introduction .............................7 2.2 Overview ..............................7 2.3 Features ..............................7 2.4 Unpacking the Loudspeaker ........................8 2.5 Ordering Information ..........................8 2.6 Certifications ............................8 3.0 Specifications ..............................9 4.0 Specific Conditions for Use..........................9 5.0 Mounting the Loudspeaker ..........................10 6.0 Adjusting the Vertical Angle ........................... -
Page 4: Safety Messages
Electrocution or severe personal injury can occur when performing various installation and service functions such as making electrical connections, drilling holes, or lifting equipment. Therefore, only experienced electricians should install this product in Non-Metallic Zone 1 Loudspeaker (GEN-IIB/C and GEN-IIB/C-ISMT) Federal Signal www.fedsig.com... - Page 5 Safety Messages accordance with national, state, or province and any other electrical codes having jurisdiction. Perform all work under the direction of the installation or service crew safety foreman. • Read and understand all instructions before installing, operating, or servicing this equipment.
- Page 6 NOTICE is used to address practices not related to physical injury. Read and understand the information contained in this manual before attempting to install or service the system. Non-Metallic Zone 1 Loudspeaker (GEN-IIB/C and GEN-IIB/C-ISMT) Federal Signal www.fedsig.com...
-
Page 7: General Description

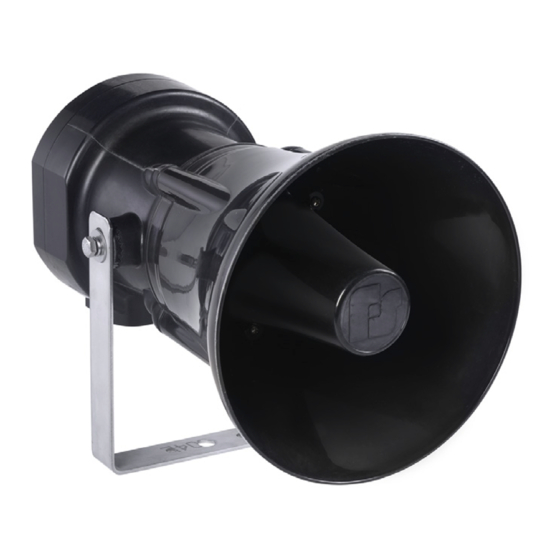

General Description 2.0 General Description 2.1 Introduction This document is a description, installation, and user manual for the GEN-IIB/C and GEN-IIB/C-ISMT Series Non-Metallic Zone 1 Loudspeaker. Its intended audience are those assigned to install, use, and maintain the loudspeakers. 2.2 Overview... -
Page 8: Unpacking The Loudspeaker
II 2 G Ex db IIC T4 Gb (Tamb = -50°C to +65°C) II 2 D Ex tb IIIC T135°C Db IP66 Standards applied EN60079-0, EN60079-1, EN60079-31, IEC60079-0, IEC 60079-1, and IEC60079-31. Refer to Certificate Numbers for specific standard versions. Non-Metallic Zone 1 Loudspeaker (GEN-IIB/C and GEN-IIB/C-ISMT) Federal Signal www.fedsig.com... -
Page 9: Specifications
Specifications 3.0 Specifications Table 3 Specifications Electrical Audio Line Voltage 100 V Max rated power 25 W Enclosure Rating IP66 Indoor/Outdoor Use Gland Entry 2 x M20 x 1.5 mm Cable Terminations 0.5 mm to 4 mm (20 AWG to 12 AWG) Size (Height x Length) 232.2 x 347 mm (9.13 x 13.66 inches) Material... -
Page 10: Mounting The Loudspeaker
All drilled holes should be de- burred, and all sharp edges should be smoothed. The Models GEN-IIB/C loudspeakers are designed for mounting on a flat horizontal or vertical surface. To mount the loudspeaker, obtain M6 stainless steel bolts, lockwashers, and flat washers. -
Page 11: Adjusting The Vertical Angle
Adjusting the Vertical Angle Figure 1 Loudspeaker dimensions NOTE: Units are in millimeters [inches]. 6.0 Adjusting the Vertical Angle To adjust the vertical angle of the loudspeaker: Loosen the fasteners on the mounting bracket to disengage the ratchet. Vertically aim the loudspeaker. Hold the loudspeaker in place while tightening the fasteners on the bracket. -
Page 12: Figure 2 Loudspeaker Connections For Gen-Iib And Gen-Iic
Amplifier (IN +) LOOP IN + LOOP IN - Audio Input Speaker GND/SCREEN IN from Amplifier (IN -) Connection (J1) LOOP OUT + LOOP OUT - GND/SCREEN OUT 20000432A Non-Metallic Zone 1 Loudspeaker (GEN-IIB/C and GEN-IIB/C-ISMT) Federal Signal www.fedsig.com... -
Page 13: Setting Transformer Wattage Taps
Setting Transformer Wattage Taps To wire the loudspeaker: Loosen the six screws securing the rear cover to the loudspeaker, and remove the cover. Route audio input leads to the LOOP IN+ and LOOP IN- terminals. The LOOP OUT+/LOOP OUT- terminals may be used to connect to an additional speaker if required. -
Page 14: Servicing The Loudspeaker
Standard Mounting Bracket Kit with Ratchets K85952946A Swivel Mounting Bracket Kit with Ratchets K85952949A Horn Kit K859502995A Rear Cover and Gasket Kit K859502997A Loudspeaker with ISMT PCBA K20000432A Loudspeaker PCBA K20000433A Non-Metallic Zone 1 Loudspeaker (GEN-IIB/C and GEN-IIB/C-ISMT) Federal Signal www.fedsig.com... -
Page 15: Getting Service
