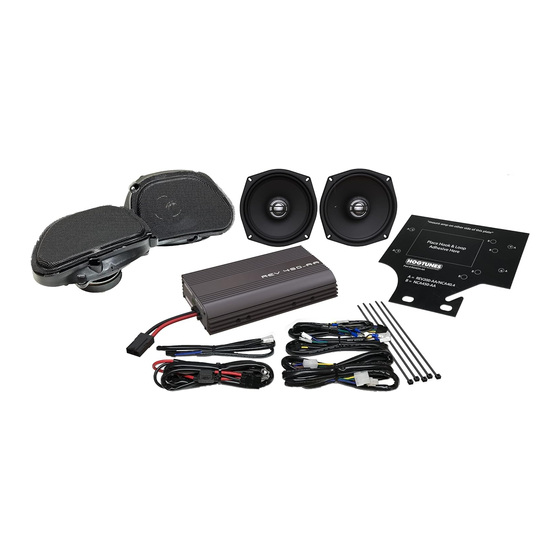

- Page 1 HOGTUNES Audio Solutions For The Great American Cruiser Designed and Engineered in Canada REV 450 RGU Kit-AA Installation Manual For 2011-2013 Road Glide Ultras Complete Front/Rear Speaker Kit With 200 Watt Amp And All Required Mounting and Wiring Rev 1.0...
- Page 2 Congratulations and thank-you for your purchase of Hogtunes REV 450 RGU KIT-AA amp speaker kit. Since positive word of mouth is the best way to grow our business, we want your new kit to work as well as it was designed to. If you have any questions or concerns, we are here to help.
- Page 3 Preparing And Mounting The Amp: Take the amp out of its box and the “RG4CH-AA” plate out of its box. The older NCA 450-AA amp, and REV 450-AA amp that came in this kit mount identically. The NCA version is shown in the images below. Step #1: Turn the amp over and remove the 4 screws on the power connector...
- Page 4 Note: install time will be cut down if another wire if “fished” through from the opening side into the fairing, taped to the Hogtunes wires, and pulled through. Step #2: Loosen the tanks “chrome console” and run wires up and over the gas tank, but under the tanks chrome console.
- Page 5 Step #4: Plug the factory rear speaker wires into the male connectors of the amp harness. Take a Hogtunes rear speaker (model 352R-AA) and plug the female connectors of the amp harness onto the speaker. Repeat this step using wires on the other side of the bike. NOTE: The factory rear speaker wires do not have insulators on them.
- Page 6 Warranty Information: Please Record Your Amps Serial # Here_________________________ Hogtunes Amplifiers are warranted for 3 years from original purchase date and Hogtunes branded speakers are warranted for 20 years from original purchase date. Proof of purchase is required for all warranty claims. The warranty applies to the original retail customer, and is not transferable.
- Page 7 Any audio system can be a distraction to the rider and/or passenger. Please use caution when playing your stereo, especially in traffic.
