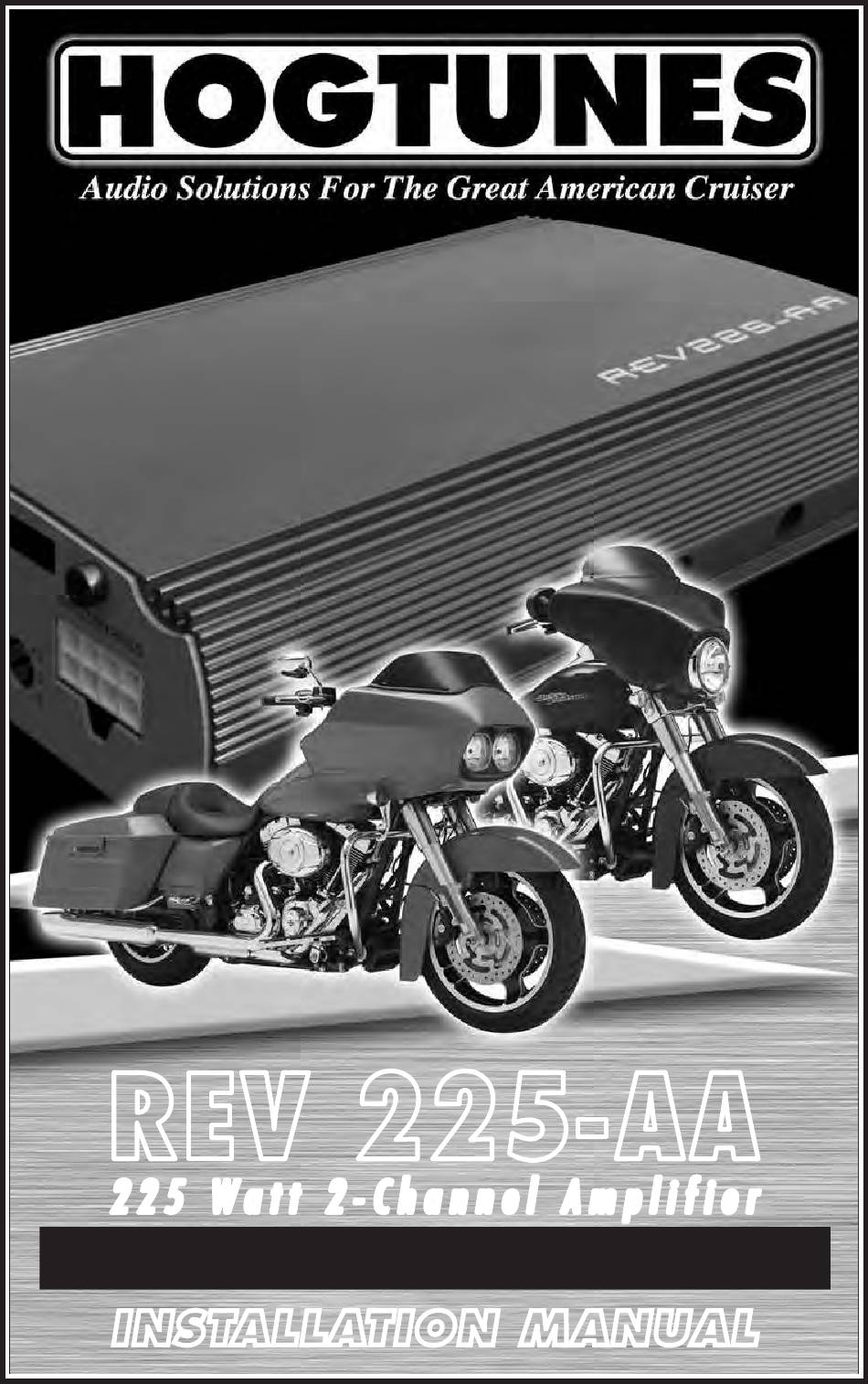

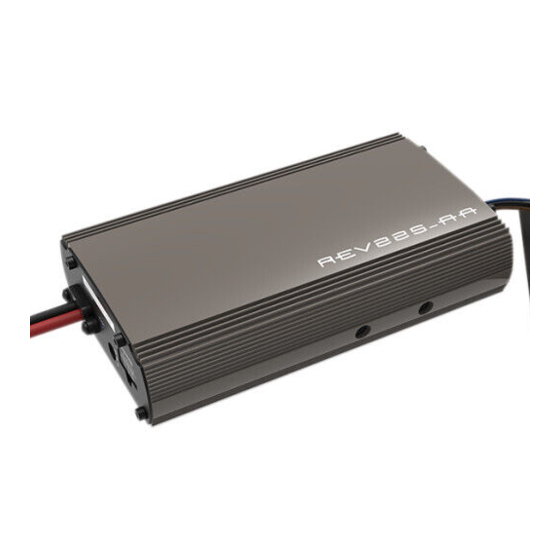

- Page 1 225-AA rev 225-AA 2 2 5 W a t t 2 - C h a n n e l A m p l i f i e r 2 2 5 W a t t 2 - C h a n n e l A m p l i f i e r...
- Page 2 If this feature is activated and the amp shuts off, it will turn the amp back on again if the voltage exceeds the 10.5 volt threshold. REV 225-AA is rated for 112.5 watts per channel @ 2 ohms. Although this amplifier makes its highest power with 2 ohm speakers, if Hogtunes 5.75 ohm speakers or 4 ohm car speakers are used there will still be a noticeable improvement in volume and sound quality.
- Page 3 1) If this is the only amp in the system or if you already have a Hogtunes NCA 450-AA or NCA 40.4 and are adding to the system, you will need Hogtunes RG2CH-AA ( Drag Specialties Part # 4405-0486) which bolts the amp to the main studs that attach the inner fairing to the frame of your bike.
-
Page 4: Getting Started
Lids 6x9”speaker lid kit, FL-7W 7” Fairing lower woofer kit or speakers as part of Hogtunes rear speaker pod kit, the speaker wire harness that comes in those kits will now plug into the 4 pin black plug on the side of the amp. - Page 5 Step #1b: Follow this step if this is the second amp in the bike and the first amp is a Hogtunes NCA 450-AA or NCA 40.4. Locate the blue plug with red/black and white/black wires on it and plug this into the “bypass out”...
- Page 6 Step #2: Earlier in the install, you located the black 4 pin plug with the blue/black and brown/black wires on it and plugged it into the “amplified output” on the amp. The blue/black wires will plug directly to the speaker on the brake side of the bike. The brown/black wires will plug directly to the speaker on the clutch side of the bike.
-
Page 7: System Upgrade
This system is an easy way to add rear speakers to the bike if it has a King Tour-Pak®. Hogtunes rear speaker pods come with a wire harness set up for quick detach Tour Paks that will plug right into the expansion port on the amp. - Page 8 #2 This system has the incredible power of 2 REV 225-AA Amplifiers to your bike! The first amp will run the 5.25” fairing speakers and HF-1 Tweeter Pod (if present). The second amplifier is used to power a set of 692.2/Lids, FL-7W Fairing lower woofers or rear Tour Pak speakers.
- Page 9 692.2/lids or lower speakers. You can literally build the system the way you want based on the body work you have on your bike. This can be done at any time, all bolt in, all plug and play! Hogtunes 2CHSP mounting plate is required to bolt the REV 225-AA into the fairing.
- Page 10 AVC position works and sounds best. This new amplifier has been specifically set-up for this radio setting. 2) This Hogtunes system is designed specifically for a motorcycle at speed. Exhaust noise and wind noise have been taken into careful consideration in how your system performs.
-
Page 11: Warranty Information
Warranty inforMation Please Record Your Amplifier’s serial # Here_________________________ The REV 225-AA Amplifier is warranted for 3 years from original purchase date. Proof of purchase is required for all warranty claims. The warranty applies to the original retail customer and is not transferable. Please contact Hogtunes for all warranty claims. - Page 12 Hogtunes products will play much louder than the Original Equipment, which can be a distraction to the rider and/or passenger. Please use caution when adjusting or playing your stereo at high volume, especially in traffic. You are a valued customer so please:...
