IntesisBox ®
KNX – FUJITSU VRF

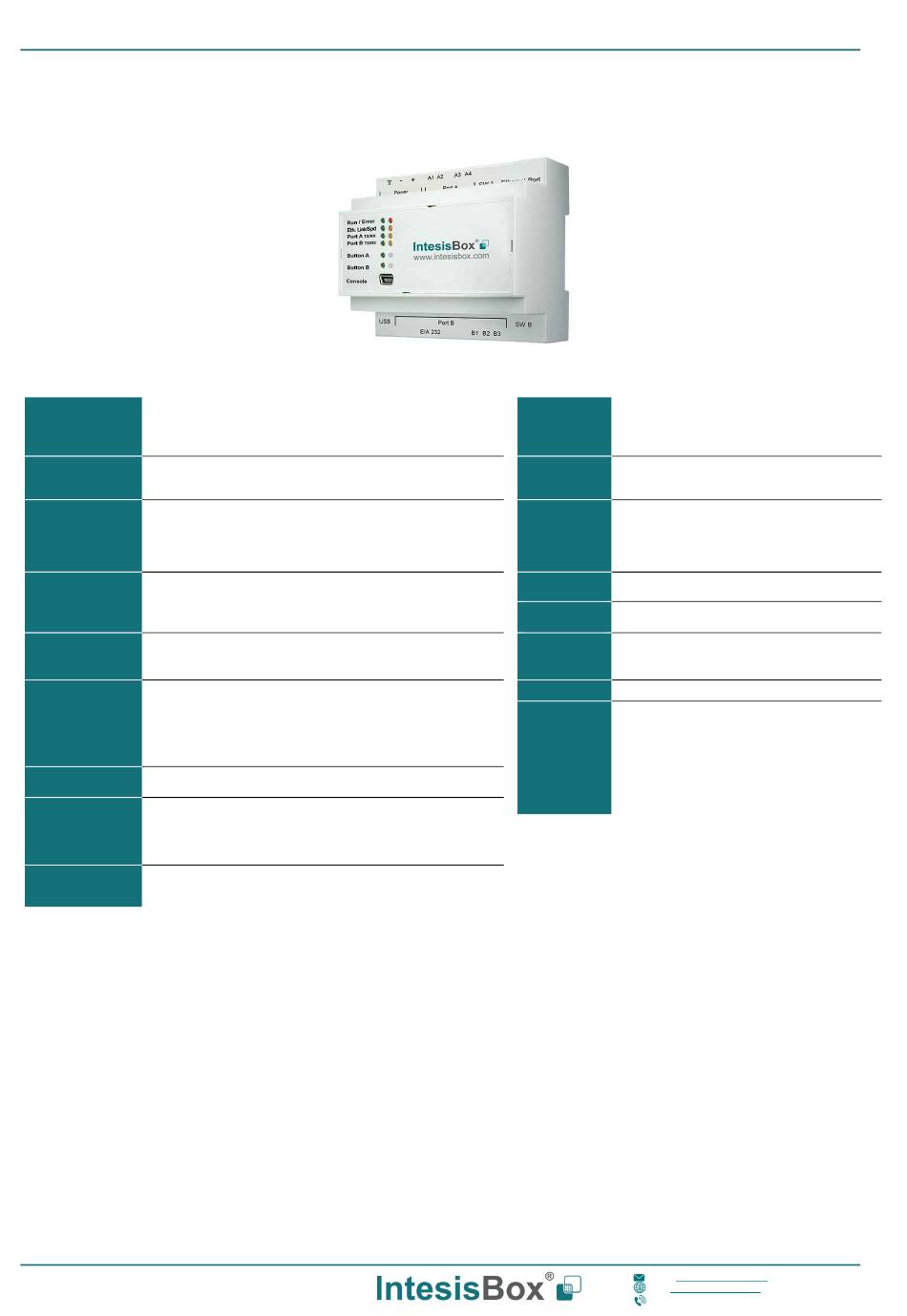

5 Electrical & Mechanical Features
Plastic, type PC (UL 94 V-0)
Net dimensions (d
Enclosure
Recommended space for installation (d
Color: Light Grey. RAL 7035
Wall.
Mounting
DIN rail EN60715 TH35.
Per terminal: solid wires or stranded wires (twisted or with
ferrule)
Terminal Wiring
1 core: 0.5mm
(for power supply and
low-voltage signals) 2 cores: 0.5mm
3 cores: not permitted
1 x Plug-in screw terminal block (3 poles)
9 to 36VDC +/-10%, Max.: 140mA.
Power
24VAC +/-10% 50-60Hz, Max.: 127mA
Recommended: 24VDC
1 x Ethernet 10/100 Mbps RJ45
Ethernet
2 x Ethernet LED: port link and activity
1 x KNX TP-1 Plug-in screw terminal block orange (2 poles)
2500VDC isolation from other ports
KNX power consumption: 5mA
Port A
Voltage rating: 29VDC
1 x Plug-in screw terminal block green (2 poles)
Reserved for future use
1 x DIP-Switch for PORT A configuration:
Switch A
Reserved for future use
(SWA)
1 x Serial EIA232 (SUB-D9 male connector)
Reserved for future use
PORT B
1 x Fujitsu Plug-in screw terminal block (3 poles)
1500VDC isolation from other ports
1 x DIP-Switch for PORT B configuration:
Switch B
Reserved for future use (leave OFF, default)
(SWB)
This information is subject to change without prior notice
IntesisBox is a registered trademark of Intesis Software S.L.U.
w h): 90x88x56 mm
x x
w h): 130x100x100mm
x x
2 ... 2.5mm 2
2 ... 1.5mm 2
Size: Coin 20mm x 3.2mm
Battery Capacity: 3V / 225mAh
Type: Manganese Dioxide Lithium
Mini Type-B USB 2.0 compliant
Console Port
1500VDC isolation
Type-A USB 2.0 compliant
Only for USB flash storage device
USB port
(USB pen drive)
Power consumption limited to 150mA
(HDD connection not allowed)
Button A: Check the user manual
Push Button
Button B: Check the user manual
Operation
0°C to +60°C
Temperature
Operational
5 to 95%, no condensation
Humidity
Protection IP20 (IEC60529)
10 x Onboard LED indicators
2 x Run (Power)/Error
2 x Ethernet Link/Speed
LED
2 x Port A TX/RX
Indicators
2 x Port B TX/RX
1 x Button A indicator
1 x Button B indicator
