4 Set-up process and troubleshooting

Pre-requisites

It is necessary to have a KNX installation, device or interface operative and well connected to the corresponding KNX
port of IntesisBox. It is also required to have a Fujitsu VRF installation, with accessible X1 X2 port for connection of
IntesisBox.
Connectors, connection cables, PC to use the configuration tool and other auxiliary material, if needed, are not supplied
by Intesis Software SLU for this standard integration.
Items supplied by Intesis Software for this integration are:

IntesisBox gateway.

Link to download the configuration tool.

USB Console cable to communicate with IntesisBox.

Product documentation.
IntesisBox MAPS. Configuration & monitoring tool for IntesisBox KNX series

4.2.1 Introduction

IntesisBox MAPS is a Windows
generation gateways.
The installation procedure and main functions are explained in the IntesisBox MAPS KNX User Manual. This document
can be downloaded from the link indicated in the installation sheet supplied with the IntesisBox device or in the product
website at www.intesisbox.com
In this section, only the specific case of Fujitsu to KNX systems will be covered.
Please check the IntesisBox MAPS KNX User Manual for specific information about the different parameters and how
to configure them.

4.2.2 Connection

To configure the IntesisBox connection parameters press on the Connection button in the menu bar.
This information is subject to change without prior notice
IntesisBox is a registered trademark of Intesis Software S.L.U.
® compatible software developed specifically to monitor and configure IntesisBox new

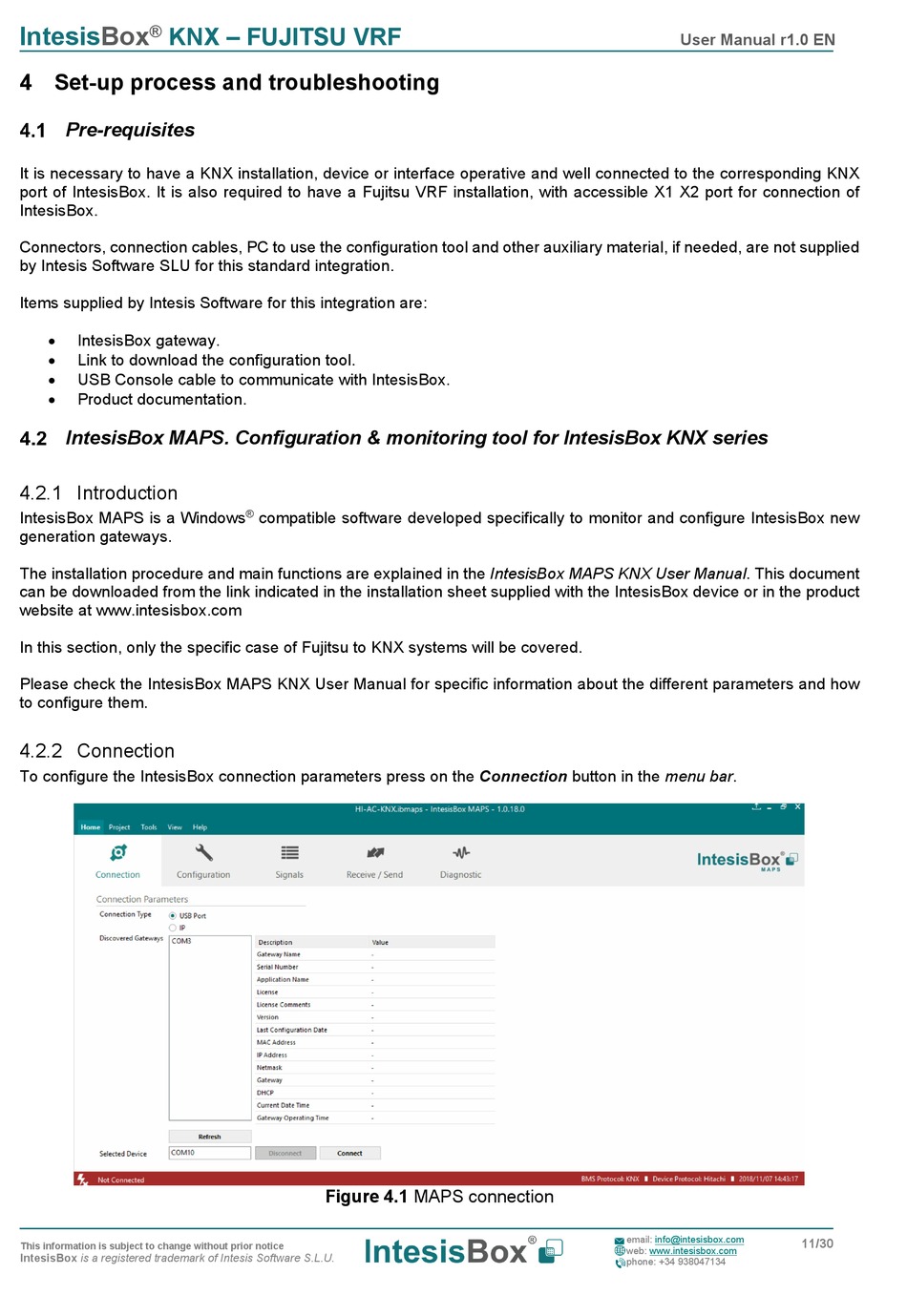

Figure 4.1 MAPS connection
