IntesisBox ®
KNX – FUJITSU VRF

4.2.5 Fujitsu configuration

Set parameters for connection with Fujisu's installation.
1. Unit Address: Enter the gateway unit address of Fujitsu's network (values from 3 to 18 with no duplication
within the same VRF network).
2. Temperature Mode: Enter the desired temperature units to be used (Celsius or Fahrenheit).
3. Add Air Unit Manually: Use this option to introduce units manually in the configuration.
1. Scan Air Units:
Use this function to scan the VRF network automatically to look for the current units connected to the system. Error
window will appear if there is a problem in the connection with VRF bus (units not powered, bus not connected, ...).
This information is subject to change without prior notice
IntesisBox is a registered trademark of Intesis Software S.L.U.

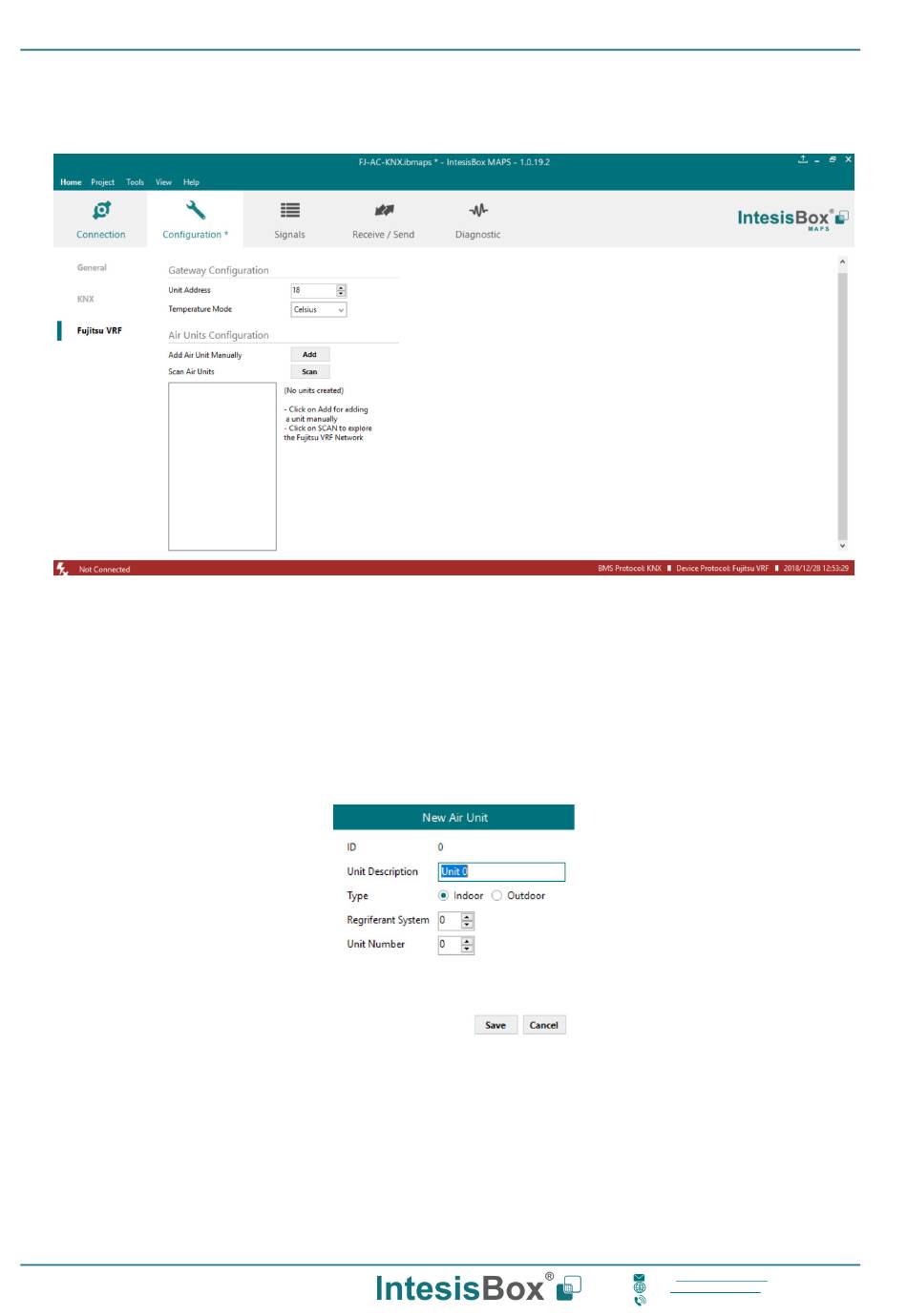

Figure 4.4 IntesisBox MAPS Fujitsu configuration tab
Figure 4.5 Add units manually
