PROAIM Ballpro CM-BLPR-01 Assembly Manual

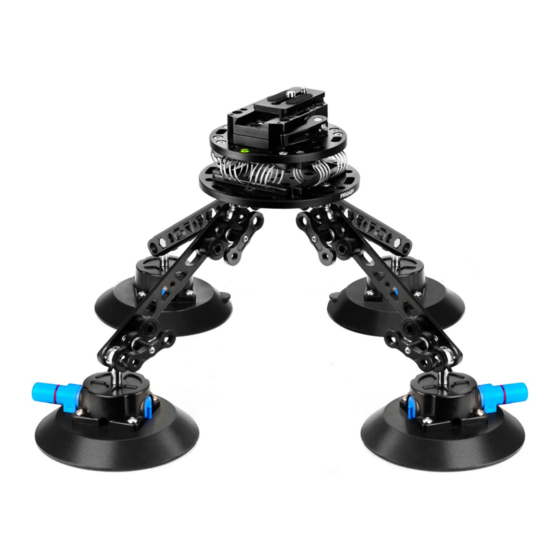

Camera suction car mount w vibration isolator

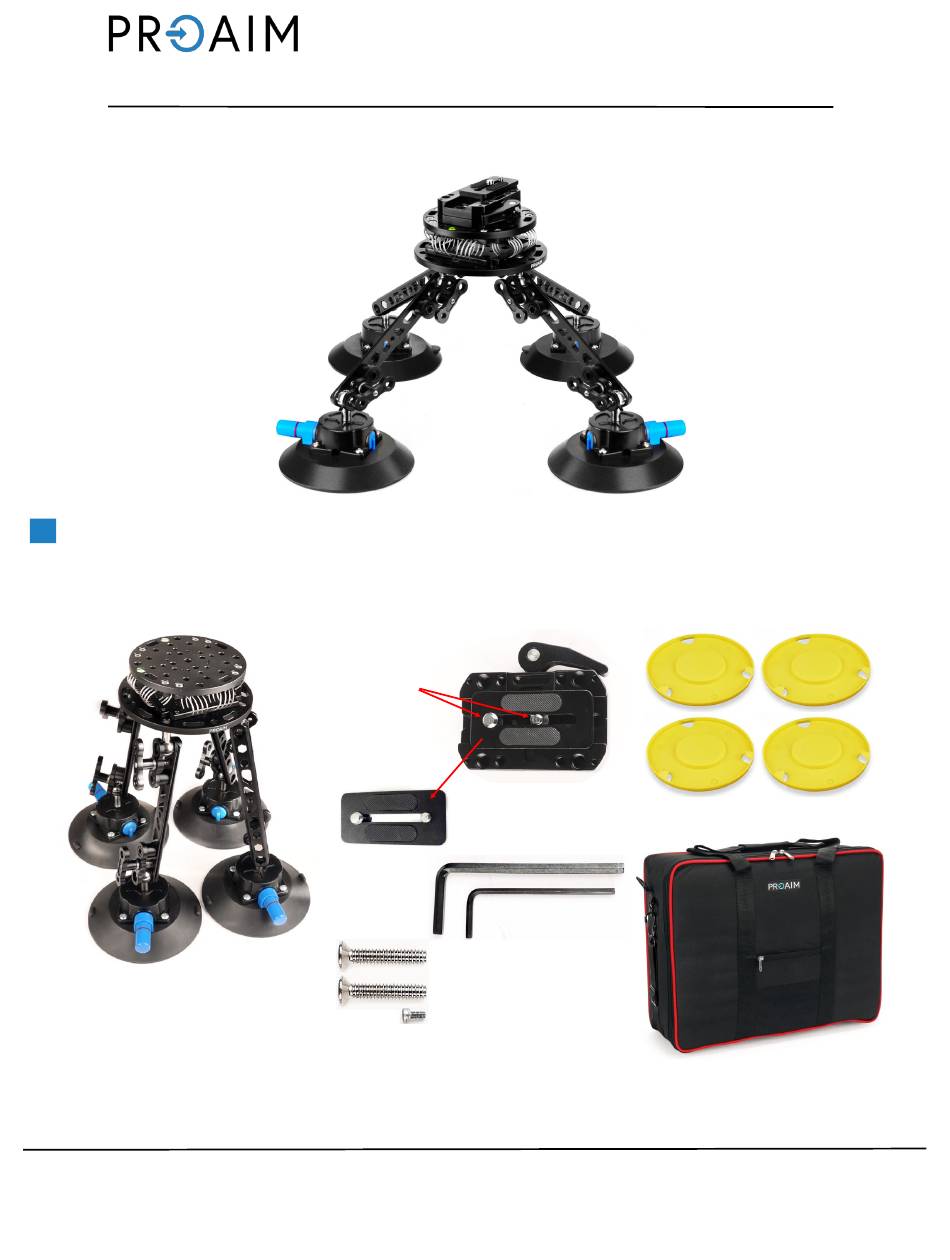

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Suction Car Mount

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

Ballpro Camera Suction Car Mount w

Vibration Isolator

A s s e m b l y M a n u a l

Bolt Size

3/8", 1/4"

P-QRG

2 x Allen Bolts

(Size: 1/4"-20 x 1-1/4" & 2.5 x 6)

statutes or in writing by the Publisher.

(CM-BLPR-01)

DJI -QR Plate

1 x Allen Key

(Size: 4mm,2.5mm)

4 x Yellow Dust Covers

Foam With Bag Packing

Table of Contents

Need help?

Do you have a question about the Ballpro CM-BLPR-01 and is the answer not in the manual?

Page 1 Ballpro Camera Suction Car Mount w Vibration Isolator (CM-BLPR-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Ballpro Camera Setup • Remove the yellow dust cover of Suction Car Mount. • Similarly, remove rest of the yellow dust covers of the suction mount, as shown in the image. • Place your first suction cup in the selected Position from where you want to shoot.
Page 3 NOTE: Two Ratchet knobs are provided in Suction Car Mount, with the help of the bottom knob, you can change the ball joint movement of the telescopic legs. • Place the DJI-QR Plate on the Suction Car Mount. • Then insert Allen CSK bolts and tighten with the help of 4mm Allen key.
Page 4 • Then attach the gimbal by sliding it from the DJI-QR plate of the suction car mount. • Tighten the DJI-QR plate with the help of the provided knob. • Your Gimbal car suction mount setup is now ready to use. •...
Page 5 YOUR PROAIM BALLPRO CAMERA SUCTION CAR MOUNT W VIBRATION ISOLATOR ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
