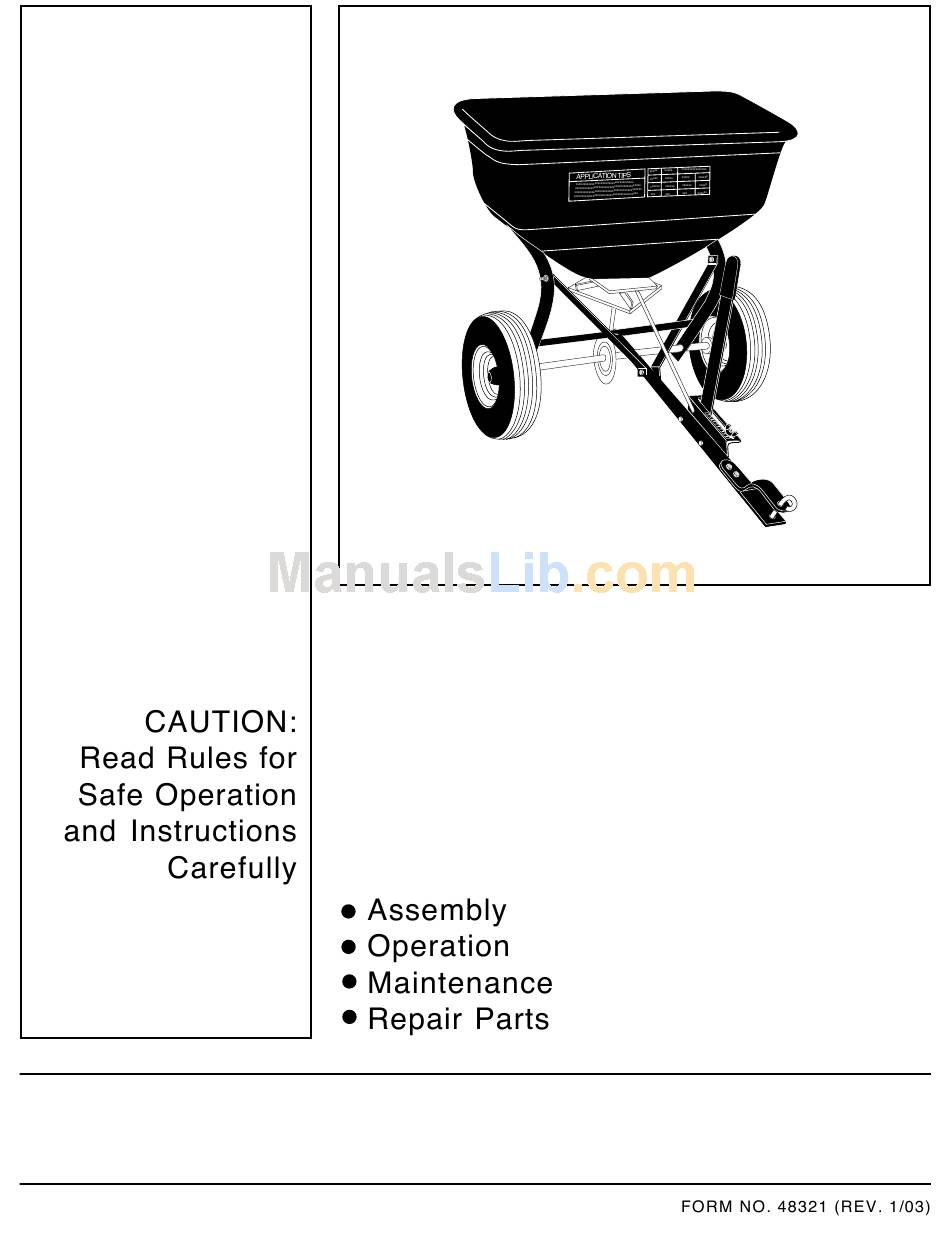

- Page 1 OWNERS MANUAL Model No. 45-02152 100 LB. TOW BROADCAST SPREADER...
-
Page 2: Carton Contents
RULES FOR SAFE OPERATION • • • • • CARTON CONTENTS LOOSE PARTS IN CARTON • • • steep slopes! • Stay off... - Page 3 SHOWN FULL SIZE NOT SHOWN FULL SIZE KEY QTY. DESCRIPTION KEY QTY. DESCRIPTION...
- Page 4 ASSEMBLY INSTRUCTIONS TOOLS REQUIRED FOR ASSEMBLY FIGURE 1 Do not tighten at this time. Do not tighten at this time. Do not tighten at this time. SHAFT SUPPORT 1/4" HEX LOCK NUT 1/4" FLAT WASHER HITCH TUBE 1/4" x 1-1/2" HEX BOLT 1/4"...
- Page 5 END WITH NO CROSS HOLE 1/2" FLAT WASHER HUB CAP FIGURE 4 5/32" x 2" COTTER PIN CROSS HOLE HUB CAP FIGURE 5 HITCH PIN 1/4" x 1" HEX BOLT HAIR COTTER PIN FIGURE 6 Tighten carefully. FLOW CONTROL LINK 1/4"...
- Page 6 Tighten carefully. VYNIL GRIP FLOW CONTROL 1/4" x 3/4" HEX BOLT (2) NYLON WASHERS FIGURE 8 5/16" FLAT WASHER FLOW CONTROL FIGURE 9 FLOW CONTROL MOUNTING BRACKET FIGURE 10 1/4" HEX LOCK NUT 3/32" COTTER 5/16" FLAT WASHER SLOT FLOW CONTROL FIGURE 11 LINK...
- Page 7 NYLON WING NUT 5/16" FLAT WASHER NYLON WASHER Tighten ADJUSTABLE 1/4" x 3/4" CARRIAGE BOLT STOP FIGURE 11 AJDUSTABLE STOP SETTING "5" FIGURE 13...
- Page 8 OPERATION HOW TO USE YOUR SPREADER SETTING THE FLOW CONTROL USING YOUR SPREADER REFER CHARTS OVERLAP FIGURE 14 IMPORTANT: OPERATING SPEED...
-
Page 9: Service And Adjustments
MAINTENANCE CHECK FOR LOOSE FASTENERS CHECK FOR WORN OF DAMAGED PARTS CHECK TIRE INFLATION CAUTION: DO NOT CLEANING LUBRICATE GREASE FIGURE 15 STORAGE SERVICE AND ADJUSTMENTS FIGURE 16 SPROCKET SHAFT 3/8" HEX NUT AGITATOR WIRE AGITATOR SLEEVE... - Page 10 REPAIR PARTS FOR BROADCAST SPREADER MODEL 45-02152 21 22 21 20...
- Page 11 REPAIR PARTS FOR BROADCAST SPREADER MODEL 45-02152 REF. PART QTY. DESCRIPTION REF. PART QTY. DESCRIPTION...
