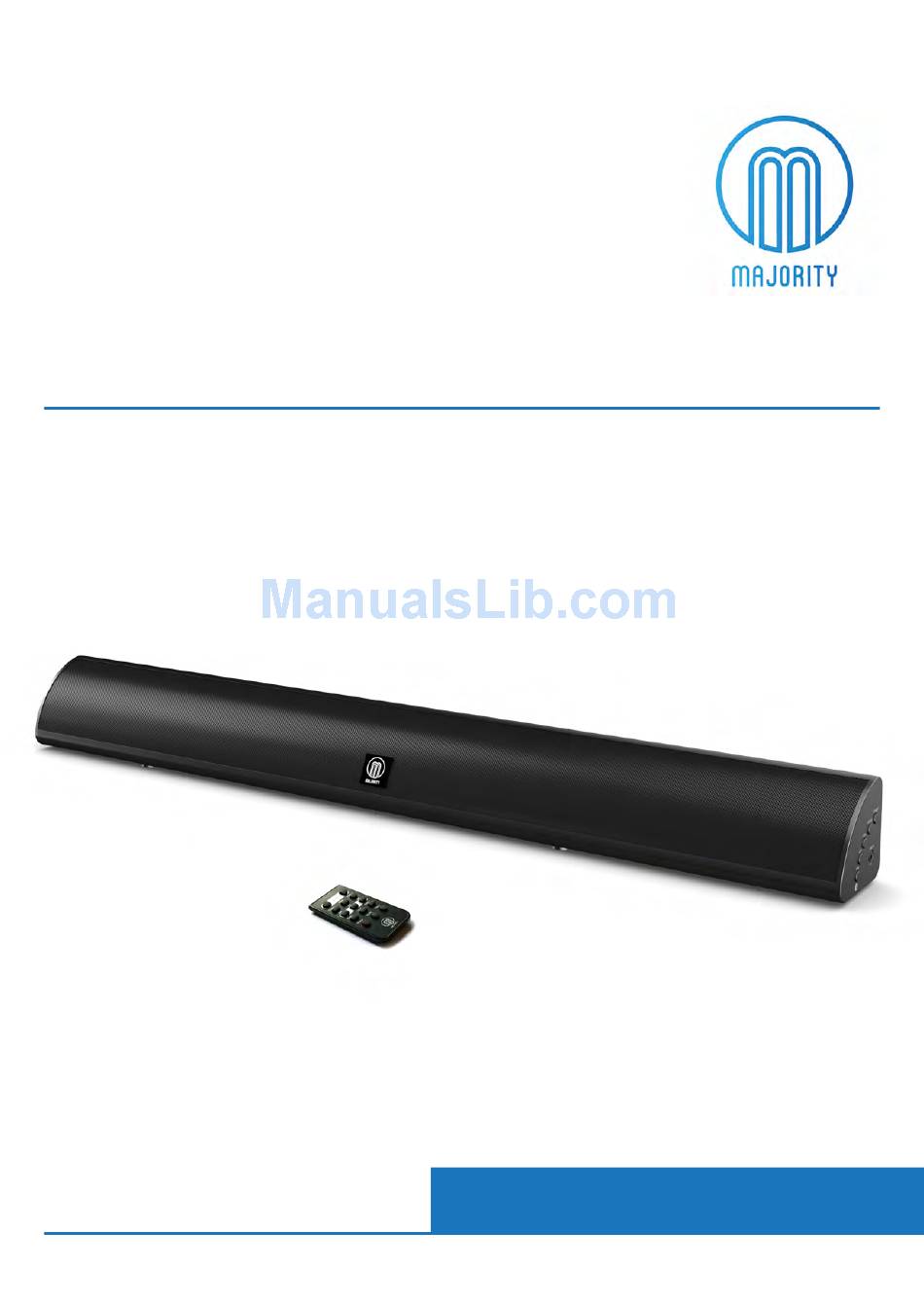

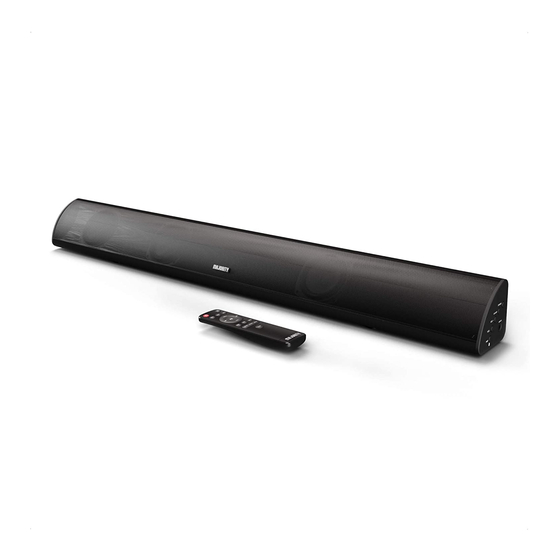

- Page 1 MAJORITY SNOWDON Wireless Audio Soundbar SNO-BAR-BLK Instructions Guide...
-
Page 2: Table Of Contents
Contents Controls And Functions ���������������������������������������������� What’s In The Box? ��������������������������������������������������� Box Contents ������������������������������������������������������������� Instructions Guide ����������������������������������������������������� Placing TV or Vision Device ��������������������������������������� Mode Indicator lights ������������������������������������������������ Connections �������������������������������������������������������������� Using the Optical Input ��������������������������������������������� Using the MP3 LINK Connection (Line In) ����������������� Connecting to the Mains Supply �������������������������������... -
Page 3: Controls And Functions
Controls And Functions Side View / Control Buttons Switch on and off the unit Volume down Select the modes Bluetooth pair button Volume up Line in socket Back View / Connections AUX socket OPTICAL IN socket DC IN (18V) socket... - Page 4 Controls And Functions Remote Control Back button Skip backwards to the beginning of the track or to the previous track in Bluetooth mode OPTICAL button Optical in button PAIR/MUTE button One touch to silence the unit or restore the sound Press and hold 2 seconds to select PAIR mode LINE button...
- Page 5 Controls And Functions Using the remote control The remote control sensor at the front of the soundbar is sensitive to the remote control’s commands up to a maximum of 6 metres away and within a maximum arc of 40 degrees. Please note that the operating distance may vary depending on the brightness of the room.
-
Page 6: What's In The Box
What’s In The Box? Box Contents 1. Majority Snowdon Soundbar 2. Remote Control 3. Adapter 4. RCA Stereo Audio Cable 5. 3.5mm to 3.5mm Audio cable 6. Instructions Guide... -
Page 7: Instructions Guide
Instructions Guide Placing TV or Vision Device The unit supports a TV with dimensions between 24 and 50 inches. Ensure the TV or Vision Device is placed properly. Turning N TIO N the volume loud may cause the device to fall down. LE C T R OCU TION S OU VRI R Mode Indicator lights... -
Page 8: Connections
Instructions Guide Connections Using the AUX Connection Use the RCA Stereo Audio Cable to connect the TV’s stereo RCA(L/R). Audio output socket to the AUX(L/R) Sockets of the unit. Then press the AUX button on the remote control or press the source button on the unit to choose the AUX function. -
Page 9: Using The Optical Input
Instructions Guide Using the Optical Input You will need: An audio source with an Optical Audio Output and a Digital Optical Audio cable (not included) Connect the Digital Optical Audio cable to the optical output on the audio source and to the Optical Input on the speaker bar. Press the POWER button on side panel or POWER button directly on the remote control to switch on the unit. -
Page 10: Using The Mp3 Link Connection (Line In)
Instructions Guide Using the MP3 LINK Connection (Line In) Plug one end of a 3.5mm audio input cable (included) into the Line in on the unit. Before use, disconnect any cables connected to the Stereo RCA Inputs. Plug the other end of the cable into the audio output/ headphone output on an MP3 player or other audio source. -
Page 11: Connecting To The Mains Supply
Instructions Guide Connecting to the Mains Supply Ensure that the power supply voltage is in the voltage of 100V~240V. This unit is designed to use adapter. Connecting the unit to any other power source may cause damage to the unit. Unwind the mains cable to its full length. -
Page 12: Bluetooth Operation
Instructions Guide Bluetooth Operation Pairing a Bluetooth Device for the First Time Press the POWER button on the unit or the POWER button on the remote control to switch on the unit. Select and press the BT button directly on the remote control or press the SOURCE button repeatedly to enter Bluetooth mode, indicated by a flashing blue light. -
Page 13: Playing Audio Wirelessly
Instructions Guide Playing Audio Wirelessly Follow the instructions for Pairing a Bluetooth Device. Use the native controls on the connected Bluetooth Device to select a track. To play, pause or skip the selected track, use the native controls on the connected Bluetooth Device. Audio played through the connected Bluetooth device will now be heard through the speakers. -
Page 14: Troubleshooting
Troubleshooting Troubleshooting If the Soundbar does not work properly as desired, please check the following checklist. Maybe it is just a minor problem, you can fix it by yourself. Malfunction Possible causes/measures Check whether the power is switched on or off at the wall. -
Page 15: Warranty
Specifications Specifications DC 18V 1.5A Power Supply 30Hz-20KHz Frequency Response 70dB 45dB Separation Bluetooth V3.0 Dimension (WxHxD) 810x83x83 Net Weight 1.5kg Warranty All products come with a standard 12 month warranty. All items www.majorityradios.co.uk must be registered on for the warranty to be valid. -
Page 16: Safety Information
Safety Information ADDITIONAL WARNINGS 1. Read these instructions. 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at www.majorityradios.co.uk splashing and no objects filled with liquid, such as 3. Heed all Warnings vases, shall be places on the apparatus. - Page 18 www.majorityradios.co.uk...
