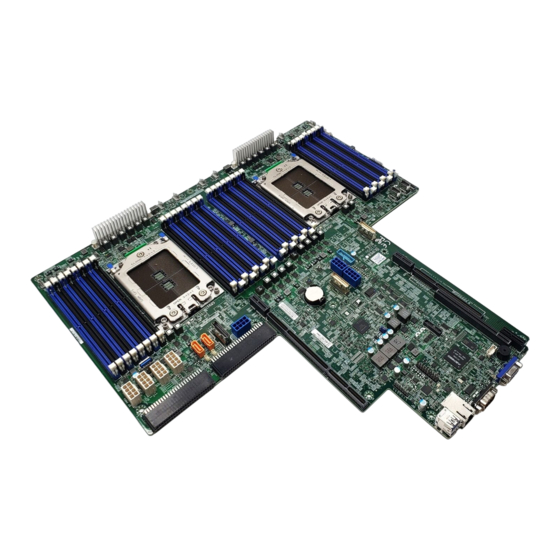

Supermicro H12DSU-iNR User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H12DSU-iNR
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H12DSU-iNR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro H12DSU-iNR

Summary of Contents for Supermicro H12DSU-iNR

  • Page 1 H12DSU-iNR USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Warnings Special attention should be given to the following symbols used in this manual.

  • Page 4: Table Of Contents

    H12DSU-iNR Motherboard Manual Contents Chapter 1 Introduction 1.1 Quick Reference .........................11 Quick Reference Table ......................12 Motherboard Features .......................13 1.2 Processor and Chipset Overview ..................16 1.3 Special Features ........................16 Recovery from AC Power Loss ..................16 1.4 System Health Monitoring ....................17 Onboard Voltage Monitors ....................17 Fan Status Monitor with Firmware Control ...............17...
  • Page 5 Contents Power Connections ......................41 Headers ..........................42 2.8 Jumper Settings .........................45 How Jumpers Work ......................45 2.9 LED Indicators ........................47 Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures ....................48 Before Power On ......................48 No Power ..........................48 No Video ...........................49 System Boot Failure ......................49 Memory Errors ........................49 What to do if the System is Losing the Setup Configuration..........50 When the System Becomes Unstable ................50 3.2 Technical Support Procedures ...................51...
  • Page 6 H12DSU-iNR Motherboard Manual Chapter 5 UEFI BIOS (EPYC 7003 Series) 5.1 Introduction .........................91 Starting the Setup Utility ....................91 5.2 Main Setup .........................92 5.3 Advanced ..........................94 5.4 IPMI ..........................111 5.5 Event Logs ........................114 5.6 Security ..........................116 5.7 Boot ..........................121 5.8 Save & Exit ........................123 Appendix A Software A.1 Microsoft Windows OS Installation ...................125...
  • Page 7 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 8: Chapter 1 Introduction

    • Product safety info: https://www.supermicro.com/about/policies/safety_information.cfm • If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.
  • Page 9 Chapter 1: Introduction Figure 1-1. H12DSU-iNR Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look...
  • Page 10 H12DSU-iNR User's Manual H12DSU-iN REV: DESIGNED IN USA Figure 1-2. H12DSU-iNR Motherboard Layout...

  • Page 11: Quick Reference

    FAN6 FAN5 FAN4 FAN3 FAN7 P1-DIMMA1~D2 P2-DIMME1~H2 Figure 1-2. H12DSU-iNR Motherboard Layout Notes: • See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front panel connections. • Jumpers/LED indicators not indicated are used for testing only. •...

  • Page 12: Quick Reference Table

    H12DSU-iNR User's Manual Quick Reference Table Jumper Description Default Setting JBT1 CMOS Clear Open (Normal) JWD1 Watch Dog Pins 1-2 (Reset) Description Status UID_LED UID LED Solid Blue: UID Switch On Green: Blinking (BMC normal) BMC_HB LED BMC Heartbeat LED...

  • Page 13: Motherboard Features

    Chapter 1: Introduction Motherboard Features Motherboard Features • Dual AMD EPYC® 7002/7003 processor in SP3 sockets Memory • Up to 8TB of ECC DDR4 3200 MHz speed, RDIMM/LRDIMM/3DS/NVDIMM memory in thirty-two slots DIMM Size • Up to 256GB size at 1.2V Chipset •...
  • Page 14 H12DSU-iNR User's Manual Motherboard Features Power Management • ACPI power management (S5) • Power button override mechanism • Power-on mode for AC power recovery System Health Monitoring • Onboard voltage monitoring for +3.3V, +3.3V Standby, +5V, +5V Standby, +12V, VBAT, Vcore, Vsoc, and Memory •...
  • Page 15 Chapter 1: Introduction Figure 1-4. Block Diagram...

  • Page 16: Processor And Chipset Overview

    7nm process architecture, and is optimized for embedded storage solutions, networking applications, or cloud-computing platforms. With support of the new microarchitecture 7nm process technology, the H12DSU-iNR drastically increases system performance for a multitude of server applications.

  • Page 17: System Health Monitoring

    Chapter 1: Introduction 1.4 System Health Monitoring This section describes the health monitoring features of the H12DSU-iNR motherboard. The motherboard has an onboard chip that supports system health monitoring. Once a voltage becomes unstable, a warning is given or an error message is sent to the screen. The user can adjust the voltage thresholds to define the sensitivity of the voltage monitor.

  • Page 18: Acpi Features

    H12DSU-iNR User's Manual 1.5 ACPI Features ACPI stands for Advanced Configuration and Power Interface. The ACPI specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system including its hardware, operating system and application software.

  • Page 19: Chapter 2 Installation

    Chapter 2: Installation Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •...

  • Page 20: Motherboard Installation

    H12DSU-iNR User's Manual 2.2 Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis.
  • Page 21 Chapter 2: Installation Figure 2-1. Motherboard Mounting Holes...

  • Page 22: Installing The Motherboard

    H12DSU-iNR User's Manual Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. See the previous page for the location. 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 23: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the Processor and Heatsink 1. Unscrew the screws holding down Force Frame in the sequence of 3-2-1. The screws are numbered on the Force Frame next to each screw hole.
  • Page 24 H12DSU-iNR User's Manual 2. The spring-loaded Force Frame will raise up after the last screw securing it (#1) is removed. Gently allow it to lift up to its stopping position. 3. Lift the Rail Frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the Rail Frame, lift it to a position so you can do the next step of removing the External Cap.
  • Page 25 Chapter 2: Installation 4. Remove the External Cap from the Rail Frame by pulling it upwards through the rail guides on the Rail Frame. External Cap PnP Cover Cap 5. The CPU Package is shipped from the factory with the Carrier Frame pre-assembled. Grip the handle of the Carrier Frame/CPU Package assembly from its shipping tray, and while gripping the handle, align the flanges of the Carrier Frame onto the rails of the Rail Frame so its pins will be at the bottom when the Rail Frame is lowered later.
  • Page 26 H12DSU-iNR User's Manual Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the Rail Frame plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the Rail Frame plate again, and double-check that the CPU is aligned properly.
  • Page 27 Chapter 2: Installation 8. Gently lower the Rail Frame down onto the socket until the latches on the Rail Frame engage with the Socket housing. and it rests in place. DO NOT force it into place!
  • Page 28 H12DSU-iNR User's Manual 9. Gently lower the Force Frame down onto the Rail Frame and hold it in place until it is seated in the Socket housing. Note that the Force Frame is spring loaded and has to be held in place before it is secured. Important: Use a torque screwdriver, set it at 16.1 kgf-cm (14.0 lbf-in) with a Torx T20 screw head bit, to prevent damage to the CPU.
  • Page 29 Chapter 2: Installation 11. After the Force Frame is secured and the CPU package is in place, now you must install the heatsink to the frame. Lower the heatsink down till it rests securely over the four screw holes on CPU Package on the socket frame. 12.
  • Page 30 H12DSU-iNR User's Manual Un-installing the Processor and Heatsink 1. Remove the heatsink attached to the top of the CPU Package by reversing the installation procedure. 2. Clean the Thermal grease left by the heatsink on the CPU package lid to limit the risk of it contaminating the CPU package land pads or contacts in the socket housing.

  • Page 31: Memory Support And Installation

    Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The H12DSU-iNR supports up to 8TB of ECC DDR4 3200 MHz speed, RDIMM/LRDIMM/3DS/ NVDIMM memory in thirty-two slots. Processors and their Corresponding Memory Modules...

  • Page 32: Dimm Module Population Sequence

    H12DSU-iNR User's Manual DIMM Module Population Sequence When installing memory modules, the DIMM slots should be populated in the following order: DIMMA2, DIMMB2, DIMMC2, DIMMD2, DIMME2, DIMMF2, DIMMG2, DIMMH2, then DIMMA1, DIMMB1, DIMMC1, DIMMD1, DIMME1, DIMMF1, DIMMG1, DIMMH1. • The blue slots must be populated first.

  • Page 33: Dimm Installation

    Chapter 2: Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots, starting with DIMMA2, DIMMB2, DIMMC2, DIMMD2, DIMME2, DIMMF2, DIMMG2, DIMMH2, then DIMMA1, DIMMB1, DIMMC1, DIMMD1, DIMME1, DIMMF1, DIMMG1, DIMMH1. For best performance, please use the memory modules of the same type and speed.

  • Page 34: Rear I/O Ports

    H12DSU-iNR User's Manual 2.5 Rear I/O Ports See Figure 2-3 below for the locations and descriptions of the various I/O ports on the rear of the motherboard. H12DSU-iN REV: DESIGNED IN USA Figure 2-3. I/O Port Locations and Definitions Rear I/O Ports...
  • Page 35 Chapter 2: Installation Universal Serial Bus (USB) Ports There are two USB 3.0 ports (USB0/1) on the I/O back panel. The motherboard also provides two USB 3.0 connections via USB headers (USB3/4). The USB2 header is USB 3.0 Type A. The onboard headers can be used to provide front side USB access with a cable (not included).
  • Page 36 H12DSU-iNR User's Manual COM Port One COM port (COM1) is located on the I/O back panel. It can also serve as an Universal Asynchronous Receiver-Transmitter (UART) communication port. UID Switch/LED One UID Switch/LED is located on the I/O back panel. The UID indicators provide easy identification of a system or unit that in need or service.

  • Page 37: Front Control Panel

    JF1 contains header pins for various buttons and indicators located on a control panel at the front of the chassis. This connector is designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.
  • Page 38 H12DSU-iNR User's Manual Power Switch The Power Switch connection is located on pins 1 and 2 of JF1. Attach it to a hardware power switch on the computer case to power on/off the system. To force the system to be powered off, press the button for at least 4 seconds.
  • Page 39 Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com. UID LED Pin Definitions (JF1)
  • Page 40 H12DSU-iNR User's Manual Power LED The Power LED connection is located on pins 15 and 16 of JF1. Attach a cable to Pin 15 and Pin 16 to show system power status. Refer to the table below for pin definitions.

  • Page 41: Connectors

    Ground +12V Ground +12V Font Panel Connector (FP1) FP1 contains various buttons and indicators that are normally located on a control panel at the front of the chassis. The FP1 connector is designed specifically for use with the Supermicro chassis.

  • Page 42: Headers

    H12DSU-iNR User's Manual Headers Fan Headers There are eight fan headers on the motherboard. These are 4-pin fan headers; pins 1-3 are backward compatible with traditional 3-pin fans. The onboard fan speeds are controlled by Fan Mode in the BMC. When using Fan Mode setting, please use all 4-pin fans.
  • Page 43 It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system. Please go to the following link for more information on TPM: http://www.supermicro.com/ manuals/other/TPM.pdf. Trusted Platform Module Header...
  • Page 44 Ground Clock 3.3V_Standby SATA Ports The H12DSU-iNR has eighteen SATA 3.0 ports (SATA0-17) that are supported by the System on Chip chipset. NVM Express Connections Four NVM Express ports are located on the serverboard (two for each processor). These ports provide high-speed, low-latency PCIe 4.0 x4 connections directly from the CPU to NVMe Solid State Drives (SSD).

  • Page 45: Jumper Settings

    Chapter 2: Installation 2.8 Jumper Settings How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2.
  • Page 46 H12DSU-iNR User's Manual Watch Dog JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt (NMI) signal for the application that hangs.

  • Page 47: Led Indicators

    Chapter 2: Installation 2.9 LED Indicators LAN Port LEDs The IPMI Ethernet port has two LED indicators. The Activity LED is yellow and indicates connection and activity. The Link LED may be green, amber, or off to indicate the speed of the connection.

  • Page 48: Chapter 3 Troubleshooting

    H12DSU-iNR User's Manual Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

  • Page 49: No Video

    Chapter 3: Troubleshooting 5. The CMOS battery on your motherboard may be old. Check to verify that it still supplies ~3V DC. If it does not, replace it with a new one. No Video 1. Check that the VGA cable is connected properly, and the monitor is on. 2.

  • Page 50: What To Do If The System Is Losing The Setup Configuration

    2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility. Note: Refer to the product page on our website at http:\\www.supermicro.com for memory and CPU support and updates. 3. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.

  • Page 51: Technical Support Procedures

    Chapter 3: Troubleshooting 3. Using the minimum configuration for troubleshooting: Remove all unnecessary components (starting with add-on cards first), and use the minimum configuration (but with a CPU and a memory module installed) to identify the trouble areas. Refer to the steps listed in Section A above for proper troubleshooting procedures.

  • Page 52: Frequently Asked Questions

    3.3 Frequently Asked Questions Question: What type of memory does my motherboard support? Answer: The H12DSU-iNR motherboard supports up to 8TB of ECC DDR4 3200 MHz speed, RDIMM/LRDIMM/3DS/NVDIMM memory in thirty-two (32) slots. See Section 2.4 for details on installing memory.
  • Page 53 Chapter 3: Troubleshooting Question: For the AMD EPYC platform, we found that the Windows Server 2012/2016 OS would not install properly. It however works fine with Linux OS, any suggestions? Answer: This issue is due to Windows server OS' compatibility with the virtualization function, we suggest to disable IOMMU (Input/Output Memory Management Unit) before installing the Windows Server OS.
  • Page 54 H12DSU-iNR User's Manual Question: Why did I fail to install Windows Server 2019 on a system with more than 255 logical processors? Answer: Follow the steps to solve the problem. 1. Disable SMT in BIOS. (BIOS >> Advanced >> CPU Configuration >> SMT Control >>...
  • Page 55 Chapter 3: Troubleshooting Question: When I ran the executable file setup.exe to install the AMD SP3 I/O driver on Windows, the following message appeared: Answer: It happens in some environments. To solve this problem, click OK and save the installation package to the location you specify. The driver is then installed automatically.

  • Page 56: Returning Merchandise For Service

    H12DSU-iNR User's Manual 3.4 Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number.

  • Page 57: Battery Installation

    Chapter 3: Troubleshooting Battery Installation 1. To install an onboard battery, follow the steps 1 & 2 above and continue below: 2. Identify the battery's polarity. The positive (+) side should be facing up. 3. Insert the battery into the battery holder and push it down until you hear a click to ensure that the battery is securely locked.

  • Page 58: Chapter 4 Uefi Bios (Epyc 7002 Series)

    UEFI BIOS (EPYC 7002 Series) 4.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H12DSU-iNR motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 59: Main Setup

    Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is 01/01/2015 after RTC reset. Supermicro H12DSU-iN BIOS Version This item displays the version of the BIOS ROM used in the system.
  • Page 60 H12DSU-iNR User's Manual CPLD Version This item displays the CPLD version of the BIOS ROM used in the system. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 61: Advanced

    Chapter 4: UEFI BIOS, 7002 4.3 Advanced Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 62 H12DSU-iNR User's Manual Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are On and Off. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs.
  • Page 63 Chapter 4: UEFI BIOS, 7002 Trusted Computing  Configuration Security Device Support If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM (Trusted Platform Module) support to enhance data integrity and network security.
  • Page 64 H12DSU-iNR User's Manual Super IO Configuration The following Super IO information will display: • Super IO Chip AST2500 Serial Port 1 Configuration Serial Port Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled. Device Settings This item displays the status of a serial part specified by the user.
  • Page 65 Chapter 4: UEFI BIOS, 7002 *If the item above set to Enabled, the following items will become available for user's configuration: Console Redirection Settings Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection.
  • Page 66 H12DSU-iNR User's Manual VT-UTF8 Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled. Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server.
  • Page 67 Chapter 4: UEFI BIOS, 7002 Console Redirection Settings Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 68 H12DSU-iNR User's Manual Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.
  • Page 69 Chapter 4: UEFI BIOS, 7002  Console Redirection Settings Out-of-Band Mgmt Port The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and SOL.
  • Page 70 H12DSU-iNR User's Manual CPU Configuration  SMT Control Use this setting to specify Simultaneous Multithreading. Options include Off for 1T single thread and Auto for 2T two-thread if your system is capable of it. Core Performance Boost This setting is used to configure for Core Performance Boost. Options include Disabled and Auto.
  • Page 71 Chapter 4: UEFI BIOS, 7002 • Processor Family • Processor Model • Microcode Patch Level • L1 Instruction Cache (Size/Method) • L1 Data Cache (Size/Method) • L2 Data Cache (Size/Method) • L3 Cache per Scoket (Size/Method) NB Configuration  Determinism Control Use this setting to configure the Determinism Control.
  • Page 72 H12DSU-iNR User's Manual Memory Configuration  Memory Clock This setting allows you to select different memory clock speed. Options include Auto and speed settings from 2666Mhz, 2933MHz to 3200MHz. Memory Interleaving This setting controls fabric level memory interleaving. Note that the channel, die and socket have requirements on memory populations and it will be ignored if the memory doesn't support the selected option.
  • Page 73 Chapter 4: UEFI BIOS, 7002 SR-IOV Support If the system has SR-IOV capable PCIe devices, this setting will Enable or Disable the Single Root IO Virtualization Support for the system. BME DMA Mitigation Re-enable Bus Master Attribute disabled during Pci enumeration for PCI Bridges after SMM Locked.
  • Page 74 H12DSU-iNR User's Manual IPv6 PXE Support This setting allows you to Enable or Disable IPv6 PXE boot support. If disabled, IPv6 PXE boot support will not be available. PXE boot wait time Use either +/- or numberic keys to set the value of wait time in seconds and press <Esc>...
  • Page 75 Chapter 4: UEFI BIOS, 7002 SATA Hot Plug This setting enables or disables the on chip SATA hot plug feature. The options are Disabled, and Enabled. SATA Information This section displays information on the detected SATA devices: • SATA0 ~ SATA17 HTTP Boot Configuration HTTP Boot One Time The default setting is Dsabled.
  • Page 76 H12DSU-iNR User's Manual TLS Authentication Configuration This submenu allows the user to configure Transport Layer Security (TLS) settings. Server CA Configuration  This feature allows the user to configure the client certificate that is to be used by the server.

  • Page 77: Ipmi

    Chapter 4: UEFI BIOS, 7002 4.4 IPMI This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system.
  • Page 78 H12DSU-iNR User's Manual Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.
  • Page 79 Chapter 4: UEFI BIOS, 7002 Subnet Mask This item displays the sub-network that this computer belongs to. The value of each three- digit number separated by dots should not exceed 255. Station MAC Address This item displays the Station MAC address for this computer. Mac addresses are 6 two- digit hexadecimal numbers.

  • Page 80: Event Logs

    H12DSU-iNR User's Manual 4.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 81 Chapter 4: UEFI BIOS, 7002 When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full.

  • Page 82: Security

    H12DSU-iNR User's Manual 4.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press <Enter> to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well.
  • Page 83 Chapter 4: UEFI BIOS, 7002 Secure Boot This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Disabled and Enabled. Secure Boot Mode Use this item to select the secure boot mode.
  • Page 84 H12DSU-iNR User's Manual Restore DB defaults  Select Yes to restore all DBs to the default settings. The options are Yes and No. Platform Key (PK)  Details Select this feature to view the details of the Platform Key. Export Select Yes to export a PK from a file on an external media.
  • Page 85 Chapter 4: UEFI BIOS, 7002 Append Select Yes to add the db from the manufacturer's defaults list to the existing db. Select No to load the db from a file. The options are Yes and No. Delete Select Ok to remove the db and then the system will reset to Setup/Audit Mode. Forbidden Signatures ...
  • Page 86 H12DSU-iNR User's Manual Set New Key Select Yes to load the DBT from the manufacturer's defaults. Select No to load the DBT from a file. The options are Yes and No. Append Key Select Yes to add the DBT from the manufacturer's defaults list to the existing DBT. Select No to load the DBT from a file.

  • Page 87: Boot

    Chapter 4: UEFI BIOS, 7002 4.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and DUAL. The default setting is DUAL. Legacy to EFI Support This option Disables or Enables the system to boot to an EFI OS after the boot failed from the legacy boot order.
  • Page 88 H12DSU-iNR User's Manual  UEFI Application Boot Priorities This feature allows the user to specify which UEFI devices are boot devices. • Boot Option #1...

  • Page 89: Save & Exit

    Chapter 4: UEFI BIOS, 7002 4.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 90 H12DSU-iNR User's Manual Default Options Restore Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 91: Chapter 5 Uefi Bios (Epyc 7003 Series)

    UEFI BIOS (EPYC 7003 Series) 5.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H12DSU-iNR motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 92: Main Setup

    H12DSU-iNR User's Manual 5.2 Main Setup When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.
  • Page 93 Chapter 5: UEFI BIOS, 7003 CPLD Version This item displays the CPLD version of the BIOS ROM used in the system. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 94: Advanced

    H12DSU-iNR User's Manual 5.3 Advanced Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 95 Chapter 5: UEFI BIOS, 7003 Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are On and Off. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.
  • Page 96 H12DSU-iNR User's Manual Trusted Computing  Configuration Security Device Support If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM (Trusted Platform Module) support to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect.
  • Page 97 Chapter 5: UEFI BIOS, 7003 Super IO Configuration The following Super IO information will display: • Super IO Chip AST2500 Serial Port 1 Configuration Serial Port Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.
  • Page 98 H12DSU-iNR User's Manual *If the item above set to Enabled, the following items will become available for user's configuration: Console Redirection Settings Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support.
  • Page 99 Chapter 5: UEFI BIOS, 7003 VT-UTF8 Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled. Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server.
  • Page 100 H12DSU-iNR User's Manual Console Redirection Settings Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 101 Chapter 5: UEFI BIOS, 7003 Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.
  • Page 102 H12DSU-iNR User's Manual  Console Redirection Settings Out-of-Band Mgmt Port The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and SOL.
  • Page 103 Chapter 5: UEFI BIOS, 7003 CPU Configuration  SMT Control Use this setting to specify Simultaneous Multithreading. Options include Off for 1T single thread and Auto for 2T two-thread if your system is capable of it. Core Performance Boost This setting is used to configure for Core Performance Boost. Options include Disabled and Auto.
  • Page 104 H12DSU-iNR User's Manual • Processor Family • Processor Model • Microcode Patch Level • L1 Instruction Cache (Size/Method) • L1 Data Cache (Size/Method) • L2 Data Cache (Size/Method) • L3 Cache per Scoket (Size/Method) NB Configuration  Determinism Control Use this setting to configure the Determinism Control. Options include Auto and Manual.
  • Page 105 Chapter 5: UEFI BIOS, 7003 Memory Configuration  Memory Clock This setting allows you to select different memory clock speed. Options include Auto and speed settings from 2666Mhz, 2933MHz to 3200MHz. Memory Interleaving This setting controls fabric level memory interleaving. Note that the channel, die and socket have requirements on memory populations and it will be ignored if the memory doesn't support the selected option.
  • Page 106 H12DSU-iNR User's Manual SR-IOV Support If the system has SR-IOV capable PCIe devices, this setting will Enable or Disable the Single Root IO Virtualization Support for the system. BME DMA Mitigation Re-enable Bus Master Attribute disabled during Pci enumeration for PCI Bridges after SMM Locked.
  • Page 107 Chapter 5: UEFI BIOS, 7003 IPv4 HTTP Support This setting allows you to Enable or Disable IPv4 HTTP boot support. If disabled, IPv4 HTTP boot support will not be available. IPv6 PXE Support This setting allows you to Enable or Disable IPv6 PXE boot support. If disabled, IPv6 PXE boot support will not be available.
  • Page 108 The default setting is Enabled. WARNING: Disabling this option is violation of RFC 6125 and may expose you to Man-in-the-Middle attacks!! Supermicro is not responsible for any and all security risks incurred by you disabling this option.
  • Page 109 Chapter 5: UEFI BIOS, 7003 Network Configuration iSCSI Configuration  iSCSI Initiator Name This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following items.
  • Page 110 H12DSU-iNR User's Manual Delete Certification  Use this feature to delete certification. RAM Disk Configuration Press <Enter> to add/remove RAM disks. Disk Memory Type Speficifies type of memory to use from available memory pool in system to create a disk.

  • Page 111: Ipmi

    Chapter 5: UEFI BIOS, 7003 5.4 IPMI This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system.
  • Page 112 H12DSU-iNR User's Manual Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.
  • Page 113 Chapter 5: UEFI BIOS, 7003 Subnet Mask This item displays the sub-network that this computer belongs to. The value of each three- digit number separated by dots should not exceed 255. Station MAC Address This item displays the Station MAC address for this computer. Mac addresses are 6 two- digit hexadecimal numbers.

  • Page 114: Event Logs

    H12DSU-iNR User's Manual 5.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 115 Chapter 5: UEFI BIOS, 7003 When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full.

  • Page 116: Security

    H12DSU-iNR User's Manual 5.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press <Enter> to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well.
  • Page 117 Chapter 5: UEFI BIOS, 7003 Secure Boot This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Disabled and Enabled. Secure Boot Mode Use this item to select the secure boot mode.
  • Page 118 H12DSU-iNR User's Manual Restore DB defaults  Select Yes to restore all DBs to the default settings. The options are Yes and No. Platform Key (PK)  Details Select this feature to view the details of the Platform Key. Export Select Yes to export a PK from a file on an external media.
  • Page 119 Chapter 5: UEFI BIOS, 7003 Append Select Yes to add the db from the manufacturer's defaults list to the existing db. Select No to load the db from a file. The options are Yes and No. Delete Select Ok to remove the db and then the system will reset to Setup/Audit Mode. Forbidden Signatures ...
  • Page 120 H12DSU-iNR User's Manual Set New Key Select Yes to load the DBT from the manufacturer's defaults. Select No to load the DBT from a file. The options are Yes and No. Append Key Select Yes to add the DBT from the manufacturer's defaults list to the existing DBT. Select No to load the DBT from a file.

  • Page 121: Boot

    Chapter 5: UEFI BIOS, 7003 5.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and DUAL. The default setting is DUAL. Legacy to EFI Support This option Disables or Enables the system to boot to an EFI OS after the boot failed from the legacy boot order.
  • Page 122 H12DSU-iNR User's Manual  UEFI Application Boot Priorities This feature allows the user to specify which UEFI devices are boot devices. • Boot Option #1...

  • Page 123: Save & Exit

    Chapter 5: UEFI BIOS, 7003 5.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 124 H12DSU-iNR User's Manual Default Options Restore Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 125: Appendix A Software

    If you will be using RAID, you must configure RAID settings before installing the Windows OS and the RAID driver. Refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals. Installing the OS 1. Create a method to access the MS Windows installation ISO file. That might be a DVD, perhaps using an external USB/SATA DVD drive, or a USB flash drive, or the IPMI KVM console.
  • Page 126 H12DSU-iNR Motherboard Manual 3. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner.

  • Page 127: Driver Installation

    Appendix A: Software A.2 Driver Installation The Supermicro website that contains drivers and utilities for your system is at https://www. supermicro.com/wdl/driver/. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard.

  • Page 128: Superdoctor ® 5

    A.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or weA-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 129: Bmc

    For security, each system is assigned a unique default BMC password for the ADMIN user. This can be found on a sticker on the motherboard. The sticker also displays the BMC MAC address. If necessary, the password can be reset using the Supermicro IPMICFG tool. Figure A-5. BMC Password Label...

  • Page 130: Appendix B Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 131 USB flash drive with FAT16 or FAT32 format and rename the file to SUPER.ROM. Note: If you cannot locate the "SUPER.ROM" file in your driver disk, visit our website at www.supermicro.com to download the correct BIOS image into a USB flash device and rename it "SUPER.ROM".
  • Page 132 SUPERMICO BIOS Update: https://www.youtube.com/watch?v=S8z6iOEHGwY * If the BIOS flash recovery fails, contact our RMA Department to have the BIOS chip reprogrammed. This will require shipping the board to Supermicro for repair. Submit your RMA request at https://www.supermicro.com/support/rma Please make sure to follow all instructions when returning the motherboard.

  • Page 133: Appendix C Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 134 H12DSU-iNR User's Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Reemplazar la batería exclusivamente con el mismo tipo o el equivalente recomendado por el fabricante.

  • Page 135: Product Disposal

    Appendix C: Warning Statements C.2 Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要があります。 警告 本产品的产弃处理产根据所有国家的法律和产章产行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.
