  • Page 1 H12SSW-AN6 USER’S MANUAL Revision 1.0a...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 About This Manual This manual is written for system integrators, IT technicians and knowledgeable end users. It provides information for the installation and use of the H12SSW-AN6 motherboard. About This Motherboard Built upon the functionality and capability of the EPYC 7002/7003* processor, the H12SSW-AN6 motherboard provides superior graphics capability and system performance while consuming little power.
  • Page 4 H12SSW-AN6 User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 5: Table Of Contents

    Preface Table of Contents Chapter 1 Introduction 1.1 Quick Reference .........................11 Quick Reference Table ......................12 Motherboard Features .......................13 1.2 Processor and Chipset Overview ..................16 1.3 Special Features ........................16 Recovery from AC Power Loss ..................16 1.4 System Health Monitoring ....................17 Onboard Voltage Monitors ....................17 Fan Status Monitor with Firmware Control ...............17 Environmental Temperature Control .................17 System Resource Alert......................17...
  • Page 6 H12SSW-AN6 User's Manual 2.7 Connectors .........................39 2.8 Jumper Settings .........................43 How Jumpers Work ......................43 2.9 LED Indicators ........................45 Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures ....................48 Before Power On ......................48 No Power ..........................48 No Video ...........................49 System Boot Failure ......................49 Memory Errors ........................49 The System Can't Retain the Setup Configuration? ............49...
  • Page 7 Preface A.4 IPMI ............................91 Appendix B Standardized Warning Statements B.1 Battery Handling .........................92 B.2 Product Disposal .........................94 Appendix C UEFI BIOS Recovery C.1 Overview ..........................95 C.2 Recovering the UEFI BIOS Image ..................95 C.3 Recovering the BIOS Block with a USB Device ..............95...

  • Page 8: Chapter 1 Introduction

    • Product safety info: https://www.supermicro.com/about/policies/safety_information.cfm • If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

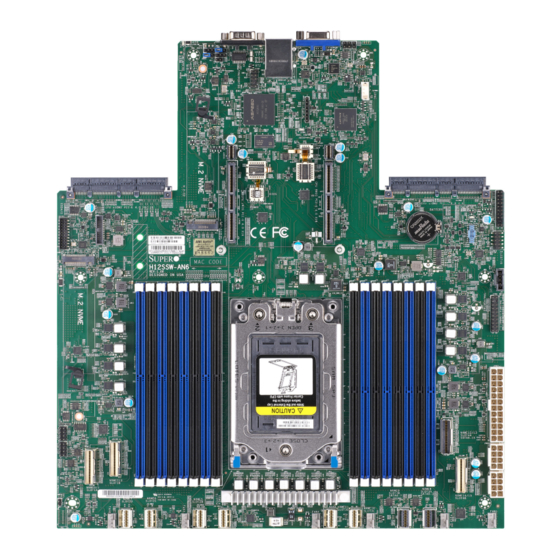

  • Page 9 Chapter 1: Introduction Figure 1-1. H12SSW-AN6 Image Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look exactly the same as the graphics shown in this manual.
  • Page 10 SATA8-15 JSLIM2 JPWR2 JSLIM7 JSLIM8 NVME2/3 SLOT1B JSLIM1 NVME0/1 NVME8 SLOT1A NVME9 SLOT3A SLOT3B SATA0-3 SATA4-7 NVME14/15 JPWR1 NVME6 SLOT4B NVME7 NVME5 SLOT2C SLOT2D SLOT2B JSLIMB3 JSLIMA4 JSLIMB6 JSLIMB4 NVME11 JSLIMA6 NVME10 SLOT3D SLOT3C FAN1 FAN4 Figure 1-2. H12SSW-AN6 Layout...

  • Page 11: Quick Reference

    CPU AIOM1 PCI-E 4.0 X8/X16 RWIO BATTERY LED4 LED2 PWR_OK JHDT1 USB7/8 IPMI CODE BAR CODE MEGERAC LICENSE M.2-C1 ERR LED5 MH15 JBT1 MAC CODE H12SSW-AN6 REV:1.00 DESIGNED IN USA PWRI2C JBT1 1V8_DUAL_P1 MH10 JTPM1 M.2-C1 TPM/PORT 80 JPWR3 MH11 JPWR3 NVME12/13 SLOT4A SATA8-15...

  • Page 12: Quick Reference Table

    H12SSW-AN6 User's Manual Quick Reference Table Jumper Description Default Setting UID SW Unit ID switch (push-button toggle switch ON/OFF) JBT1 Clear CMOS Open (Normal) JWD1 Watch Dog control Pins 1-2 (Reset) Description Status LED1 UID LED Blue: UID Activated LED7...

  • Page 13: Motherboard Features

    Chapter 1: Introduction Motherboard Features Features • Single EPYC 7002/7003 Processor, in one SP3 socket Memory • Up to 4 TB of ECC DDR4 3200 MHz speed, in sixteen slots DIMM Size • Up to 128GB size at 1.2V Chipset •...
  • Page 14 H12SSW-AN6 User's Manual Features System Health Monitoring • Onboard voltage monitoring for +1.8V, 3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory • Onboard monitoring for CPU, system, and memory temperature • CPU switching phase voltage regulator • CPU Thermal Trip support Fan Control •...
  • Page 15 Chapter 1: Introduction H12SSW-AN6 AMD SP3 Rev. 1.01 IPMI LAN RJ45 COM1 JLWIO JRWIO Rear USB 3.0 DDR4 RTL8211F CPU WAFL [0] uPD720202 AST2600 JAIOM1 JAIOM2 USB_0_HSD[0,1] BMC ROM CPU WAFL [1] CPLD BIOS ROM Front USB Front USB CPU P0 [0:7]...

  • Page 16: Processor And Chipset Overview

    • System Management Bus (SMBus) Specification Version 2.0 1.3 Special Features This section describes the health monitoring features of the H12SSW-AN6. The motherboard has an onboard System Hardware Monitor chip that supports system health monitoring. Recovery from AC Power Loss The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system.

  • Page 17: System Health Monitoring

    Chapter 1: Introduction 1.4 System Health Monitoring This section describes the health monitoring features of the H12SSW-AN6 motherboard. The motherboard has an onboard Baseboard Management Controller (BMC) chip that supports system health monitoring. Once a voltage becomes unstable, a warning is given or an error message is sent to the screen.

  • Page 18: Acpi Features

    H12SSW-AN6 User's Manual 1.5 ACPI Features ACPI stands for Advanced Configuration and Power Interface. The ACPI specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system including its hardware, operating system and application software.

  • Page 19: Chapter 2 Installation

    Chapter 2: Installation Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •...

  • Page 20: Motherboard Installation

    H12SSW-AN6 User's Manual 2.2 Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis.
  • Page 21 Chapter 2: Installation Figure 2-1. Motherboard Mounting Holes...

  • Page 22: Installing The Motherboard

    H12SSW-AN6 User's Manual Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. See the previous page for the locations. 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard with the mounting holes on the chassis.

  • Page 23: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the Processor and Heatsink 1. Unscrew the screws holding down Force Frame in the sequence of 3-2-1. The screws are numbered on the force frame next to each screw hole.
  • Page 24 H12SSW-AN6 User's Manual 2. The spring-loaded force frame will raise up after the last screw securing it (#1) is removed. Gently allow it to lift up to its stopping position. 3. Lift the rail frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the rail frame, lift it to a position so you can do the next step of removing the external cap.
  • Page 25 Chapter 2: Installation 4. Remove the external cap from the Rail Frame by pulling it upwards through the rail guides on the rail frame. External Cap PnP Cover Cap 5. The CPU package is shipped from the factory with the blue carrier frame pre-assembled. Grip the handle of the carrier frame/CPU package assembly from its shipping tray, and while gripping the handle, align the flanges of the carrier frame onto the rails of the rail frame so its pins will be at the bottom when the rail frame is lowered later.
  • Page 26 H12SSW-AN6 User's Manual Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the rail frame plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the rail frame plate again, and double-check that the CPU is aligned properly.
  • Page 27 Chapter 2: Installation 9. Gently lower the force frame down onto the rail frame and hold it in place until it is seated in the Socket housing. Note that the force frame is spring loaded and has to be held in place before it is secured. Important: Use a torque screwdriver, set it at 16.1 kgf-cm (14.0 lbf-in) with a Torx T20 screw head bit, to prevent damage to the CPU.
  • Page 28 H12SSW-AN6 User's Manual 11. After the force frame is secured and the CPU package is in place, now you must install the heatsink to the frame. Lower the heatsink down till it rests securely over the four screw holes on CPU package on the socket frame.
  • Page 29 Chapter 2: Installation Un-installing the Processor and Heatsink 1. Remove the heatsink attached to the top of the CPU package by reversing the installation procedure. 2. Clean the Thermal grease left by the heatsink on the CPU package lid to limit the risk of it contaminating the CPU package land pads or contacts in the socket housing.

  • Page 30: Memory Support And Installation

    Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The H12SSW-AN6 supports Up to 4 TB of ECC DDR4 3200 MHz speed, RDIMM/LRDIMM/3DS memory in sixteen slots. Refer to the table below for additional memory information. Populating RDIMM/RDIMM 3DS/LRDIMM 3DS DDR4 Memory Modules...

  • Page 31: Dimm Module Population

    PWR_OK JHDT1 to achieve the best memory performance, a balanced memory population is recommended. IPMI CODE BAR CODE MEGERAC LICENSE M.2-C1 ERR MH15 MAC CODE H12SSW-AN6 REV:1.00 DESIGNED IN USA JBT1 1V8_DUAL_P1 MH10 JTPM1 DIMM A1 DIMM E1 DIMM A2...
  • Page 32 H12SSW-AN6 User's Manual (with 7002 Processor) DIMM Population Guide Channel DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM 1 DIMM ü 2 DIMMs (not recommended) ü ü 4 DIMMS (*see NOTE below) ü...

  • Page 33: Dimm Installation

    Chapter 2: Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots, there is no specific sequence or order required Receptive 2. Push the release tabs outwards on both Point ends of the DIMM slot to unlock it. 3.

  • Page 34: Rear I/O Ports

    H12SSW-AN6 User's Manual 2.5 Rear I/O Ports See Figure 2-1 below for the locations and descriptions of the various I/O ports on the rear of the motherboard. JCOM1 UID-SW JRU1 JWD1 JUID1 JVRM1 JUART1 COM1 USB0/1 (3.0) JDBG1 JTPM2 IPMI_LAN...
  • Page 35 See 2.6 for the front panel UID LED header location on JF1. Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com...

  • Page 36: Front Control Panel

    JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the location of JF1. JCOM1...

  • Page 37: Front Control Panel Pin Definitions

    Chapter 2: Installation Front Control Panel Pin Definitions NMI Button The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the table below for pin definitions. NMI Button Pin Definitions (JF1) Pin# Definition NMI Switch Ground Power LED The Power LED connection is located on pins 15 and 16 of JF1.
  • Page 38 H12SSW-AN6 User's Manual UID LED The UID LED is on pins 7 and 8 of JF1. Connect the front panel UID LED to this header to indicate when the rear UID switch is turned on. Refer to the table below for pin definitions.

  • Page 39: Connectors

    2.7 Connectors Front Panel Connector (FP1) FP1 contains various buttons and indicators that are normally located on a control panel at the front of the chassis. The FP1 connector is designed specifically for use with the Supermicro chassis. Pin Definitions...
  • Page 40 NVMe Ports (NVMe 0~7, 10, 11, 14, 15) The H12SSW-AN6 has tweleve NVMe ports (2 ports per 1 Slim SAS connector x 8) on the motherboard. These ports provide high-speed, low-latency PCIe 4.0 x4 1 port per 1 Slim SAS x4 connector.
  • Page 41 Chapter 2: Installation USB Ports (USB0/1, USB7/8) There are a total of two USB ports supported on the motherboard. Two are located on the front panel, and two are located on the back panel. Front Panel USB 7/8 (2.0) Rear I/O Panel USB 0/1 (3.0) Pin Definitions Pin Definitions Pin#...
  • Page 42 H12SSW-AN6 User's Manual Main Power Supply Connector (JPWR3) The primary power supply connector (JPWR3) is an ATX power connector that the power supply plugs into directly. ATX Power 24-pin Connector Pin Definitions Pin# Definition Pin# Definition +3.3V +3.3V +3.3V -12V...

  • Page 43: Jumper Settings

    Chapter 2: Installation 2.8 Jumper Settings How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin #1 is identified with a thicker border line on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2.
  • Page 44 H12SSW-AN6 User's Manual Watch Dog (JWD1) JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs.

  • Page 45: Led Indicators

    Chapter 2: Installation 2.9 LED Indicators Onboard LAN Port LEDs The motherboard's Ethernet ports has one LED indicators. The Activity LED is green and indicates connection and activity. The Link LED may be green, orange/amber, or off to indicate the speed of the connection. Refer to the tables below for more information. Link LED, Connection Link Speed Indicator LED Color...
  • Page 46 H12SSW-AN6 User's Manual UID LED Indicator (LED1) The rear LED1 is located next to the UID switch. The front UID LED is located on the front panel. When you press the UID switch, both rear LED1 and front UID LED indicators will turn on.
  • Page 47 Chapter 2: Installation M.2 Active LEDs (LED6 and LED3) (Optional) The M.2 Interface Detection LED indicates that an M.2 interface is detected, active and working correctly on either M.2-C1 (LED6) or M.2-C2 (LED3). Note: M.2 SATA devices are not supported, but these LEDs turns on (green light) when they are installed.

  • Page 48: Chapter 3 Troubleshooting

    H12SSW-AN6 User's Manual Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

  • Page 49: No Video

    Chapter 3: Troubleshooting No Video 1. If the power is on but you have no video, remove all the add-on cards and cables. 2. Set JPG1 to [1-2] and check if you follow the guidelines to install the memory module. See DIMM Module Population in chapter 2.

  • Page 50: When The System Becomes Unstable

    H12SSW-AN6 User's Manual 2. The battery on your motherboard may be old. Check to verify that it still supplies ~3VDC. If it does not, replace it with a new one. 3. If the above steps do not fix the setup configuration problem, contact your vendor for repairs.

  • Page 51: Technical Support Procedures

    Chapter 3: Troubleshooting 4. Identifying bad components by isolating them: If necessary, remove a component in question from the chassis, and test it in isolation to make sure that it works properly. Replace a bad component with a good one. 5.

  • Page 52: Frequently Asked Questions

    3.3 Frequently Asked Questions Question: What type of memory does my motherboard support? Answer: The H12SSW-AN6 motherboard supports up to 4TB of ECC DDR4 2400/2666 MHz speed, RDIMM/LRDIMM/3DS/NVDIMM memory in sixteen slots. See Section 2.4 for details on installing memory.

  • Page 53: Returning Merchandise For Service

    Shipping and handling charges will be applied for all orders that must be mailed when service is complete. For faster service, RMA authorizations may be requested online (http://www.supermicro.com/ support/rma/). This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

  • Page 54: Battery Removal

    H12SSW-AN6 User's Manual Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it.

  • Page 55: Chapter 4 Bios

    BIOS 4.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H12SSW-AN6 motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 56: Main Setup

    H12SSW-AN6 User's Manual 4.2 Main Setup When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.
  • Page 57 Chapter 4: BIOS Build Date This item displays the date when the version of the BIOS ROM used in the system was built. CPLD Version This item displays the CPLD version of the BIOS ROM used in the system. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 58: Advanced

    H12SSW-AN6 User's Manual 4.3 Advanced Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 59 Chapter 4: BIOS Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are On and Off. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.
  • Page 60 H12SSW-AN6 User's Manual Trusted Computing Configuration Security Device Support Enables or disables BIOS support for security device. OS will not show Security Device. TCG EFI protocol and INT1A interface will not be available. The options are Disabled and Enabled. PSP Firmware Versions This section displays the Platform Security Processor (PSP) firmware versions.
  • Page 61 Chapter 4: BIOS Super IO Configuration The following Super IO information will display: • Super IO Chip AST2600 Serial Port 1 Configuration Serial Port Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled. Device Settings This item displays the status of a serial part specified by the user.
  • Page 62 H12SSW-AN6 User's Manual Serial Port Console Redirection COM1 Console Redirection Select Enabled to enable console redirection support for a serial port specified by the user. The options are Enabled and Disabled. *If the item above set to Enabled, the following items will become available for user's configuration: Console Redirection Settings...
  • Page 63 Chapter 4: BIOS Flow Control Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.
  • Page 64 H12SSW-AN6 User's Manual Bits per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).
  • Page 65 Chapter 4: BIOS Putty KeyPad This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400. Legacy Console Redirection Legacy Console Redirection Settings Legacy Serial Redirection Port For this setting, select a COM port to display redirection of Legacy OS and Legacy OPROM...
  • Page 66 H12SSW-AN6 User's Manual UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI. Bits per Second This item sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer.
  • Page 67 Chapter 4: BIOS Core Control Sets the number of cores to be used. Once this option has been used to remove any CCDs, a POWER CYCLE is required in order for future selections to take effect. Options include Auto, ONE (1+0), TWO (2+0), THREE (3+0), FOUR (4+0), FIVE (5+0), SIX (6+0), and SEVEN (7+0). L1 Stream HW Prefetcher / L2 Stream HW Prefetcher This setting is used to enable or disable the L1/L2 Stream Hardware Prefetcher.
  • Page 68 H12SSW-AN6 User's Manual NB Configuration Determinism Control Use this setting to configure the Determinism Slider. Options include Manual and Auto. cTDP Control Use this setting to configure the cTDP Control. Options include Auto and Manual. IOMMU Use this setting to enable or disable IOMMU. Options include Disabled, Enabled, and Auto.
  • Page 69 Chapter 4: BIOS BankGroupSwap This setting controls the Bank Group Swap. Options include Enabled, Disabled and Auto DRAM Scrub Time This setting provides a value that is the number of hours to scrub memory. Options include Disabled, 1 hour, 4 hours, 8 hours, 16 hours, 24 hours, 48 hours, and Auto. TSME Use this setting to enable or disable TSME.
  • Page 70 H12SSW-AN6 User's Manual PCIe Ten Bit Tag Support Use this setting to enable PCIe ten bit tags for supported devices. The options are Disabled, Enabled and Auto. PCIe Spread Spectrum Use this setting to Enable or Disable PCIe Spread Spectrum for your system.
  • Page 71 Chapter 4: BIOS M.2-C1 OPROM Use this setting to enable or disable M.2-C1 OPROM option. The options are Disabled and EFI. M.2-C2 OPROM Use this setting to enable or disable M.2-C2 OPROM option. The options are Disabled and EFI. Onboard Video Option ROM This setting selects which onboard video firmware type to be selected.
  • Page 72 H12SSW-AN6 User's Manual Network Configuration Network Stack This setting allows you to Enable or Disable the UEFI Network Stack. IPv4 PXE Support This setting allows you to Enable or Disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available.
  • Page 73 Chapter 4: BIOS SATA Information Use this setting to view SATA devices information. KMIP Server Configuration KMIP Server IP address Enter IP4 address in dotted-decimal notation KMIP TCP Port number Enter KMIP TCP Port number 100 ... 9999. Default is 5696. TimeZone Enter current time zone.
  • Page 74 H12SSW-AN6 User's Manual HTTB Boot Configuration HTTP Boot Configuration HTTP Boot Policy Sets the HTTP boot policy to Apply to all LANs, Apply to each LAN, and Boot Priority #1 instantly. Priority of HTTP Boot Instance of Priority 1 Default to 1.
  • Page 75 Chapter 4: BIOS Server CA Configuration Enroll Certification Enroll Certification Using File Use this feature to enroll certification from a file. Certification GUID Use this feature to input the certification GUID. Commit Changes and Exit Use this feature to save all changes and exit TLS settings. Discard Changes and Exit Use this feature to discard all changes and exit TLS settings.

  • Page 76: Ipmi

    H12SSW-AN6 User's Manual 4.4 IPMI This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system.
  • Page 77 Chapter 4: BIOS Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.
  • Page 78 H12SSW-AN6 User's Manual Station IP Address This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form. Subnet Mask This item displays the sub-network that this computer belongs to. The value of each three- digit number separated by dots should not exceed 255.

  • Page 79: Event Logs

    Chapter 4: BIOS 4.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 80 H12SSW-AN6 User's Manual When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

  • Page 81: Security

    Chapter 4: BIOS 4.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press Enter to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well. User Password Press Enter to create a new, or change an existing User password.
  • Page 82 H12SSW-AN6 User's Manual Secure Boot This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Enabled and Disabled. Secure Boot Mode Use this item to select the secure boot mode. The options are Standard and Custom.
  • Page 83 Chapter 4: BIOS Secure Boot Variable This feature allows you to decide if all secure boot variables should be saved. Platform Key (PK) This feature allows you to configure the settings of the platform keys. Set New Key Select Yes to load the new platform keys (PK) from the manufacturer's defaults. Select No to load the platform keys from a file.

  • Page 84: Boot

    H12SSW-AN6 User's Manual 4.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and Dual. The default setting is DUAL.
  • Page 85 Chapter 4: BIOS UEFI Application Boot Priorities This feature allows the user to specify which UEFI devices are boot devices. • Boot Option #1...

  • Page 86: Save & Exit

    H12SSW-AN6 User's Manual 4.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 87 Chapter 4: BIOS Default Options Restore Optimized Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 88: Appendix A Software

    1. Create a method to access the Microsoft Windows installation ISO file. That can be a USB flash or media drive, or the BMC KVM console. 2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 89 Appendix A: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure A-2.

  • Page 90: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash or media drive.

  • Page 91: Superdoctor 5

    A.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 92: Appendix B Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 93 Appendix B: Warning Statements Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.

  • Page 94: Product Disposal

    H12SSW-AN6 User's Manual B.2 Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 95: Appendix C Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 96 H12SSW-AN6 User's Manual 1. Using a different system, copy the standard BIOS binary image file into the root directory of a USB flash drive with FAT16 or FAT32 format and rename the file to SUPER.ROM. Note: If you cannot locate the "SUPER.ROM" file in your driver disk, visit our website at www.supermicro.com...
  • Page 97 • If the BIOS flash recovery fails, contact our RMA Department to have the BIOS chip reprogrammed. This will require shipping the board to Supermicro for repair. Submit your RMA request at https://www.supermicro.com/support/rma Please make sure to follow all instructions when returning the motherboard.
