  • Page 1 H12SSG-ANP6 USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 About This Manual This manual is written for system integrators, IT technicians and knowledgeable end users. It provides information for the installation and use of the H12SSG-ANP6 motherboard. About This Motherboard Built upon the functionality and capability of the AMD Ryzen™ Threadripper™ PRO 3000/5000 processor, the H12SSG-ANP6 motherboard provides high performance for multi-threaded workloads while consuming little power.
  • Page 4 H12SSG-ANP6 User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support)

  • Page 5: Table Of Contents

    Preface Table of Contents Chapter 1 Introduction 1.1 Quick Reference .........................10 Quick Reference Table ......................11 Motherboard Features .......................12 Motherboard Block Diagram .....................14 1.2 Processor Overview ......................15 1.3 Special Features ........................15 Recovery from AC Power Loss ..................15 1.4 System Health Monitoring ....................15 Onboard Voltage Monitors ....................15 Fan Status Monitor with Firmware Control ...............16 Environmental Temperature Control .................16...
  • Page 6 H12SSG-ANP6 User's Manual 2.7 Jumper Settings .........................37 How Jumpers Work ......................37 2.8 LED Indicators ........................39 Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures ....................41 Before Power On ......................41 No Power ..........................41 No Video ...........................42 System Boot Failure ......................42 Memory Errors ........................42 The System Can't Retain the Setup Configuration ............42 When the System Becomes Unstable ................43...
  • Page 7 5.3 Advanced ..........................85 5.4 IPMI ..........................102 5.5 Event Logs ........................105 5.6 Security ..........................107 5.7 Boot ..........................110 5.8 Save & Exit ........................113 Appendix A Software A.1 Microsoft Windows OS Installation ...................115 A.2 Driver Installation ......................117 A.3 SuperDoctor 5 .........................118 ® A.4 IPMI ..........................118 Appendix B Standardized Warning Statements B.1 Battery Handling .......................119 B.2 Product Disposal .......................121...

  • Page 8: Chapter 1 Introduction

    • Product safety info: https://www.supermicro.com/about/policies/safety_information.cfm • If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

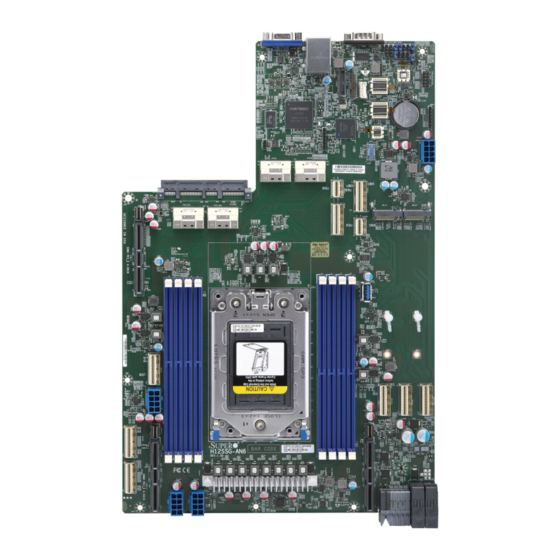

  • Page 9 Chapter 1: Introduction Figure 1-1. H12SSG-ANP6 Image...

  • Page 10: Quick Reference

    2280 USB13 MH17 MH16 22110 22110 MH19 JPCIE7 JPWR3 JSXB3-1 JPCIE9 BAR CODE BAR CODE MAC CODE MAC CODE H12SSG-AN6 REV:1.00 DIMME1 DIMMF1 DIMMG1 DIMMH1 DIMMD1 DIMMC1 DIMMB1 DIMMA1 JPCIE8 JMP2 JMP1 JMP3 JPWR2 JPWR1 JMP3 Figure 1-2. H12SSG-ANP6 Layout...

  • Page 11: Quick Reference Table

    Chapter 1: Introduction Quick Reference Table Jumper Description Default Setting JBT1 Clear CMOS Open (Normal) JWD1 Watch Dog control Pins 1-2 (Reset) Description Status M.2-B1 Active LED On: Activity on M.2-B1 device M.2-A1 Active LED On: Activity on M.2-A1 device LED1 UID LED Solid Blue: UID Activated...

  • Page 12: Motherboard Features

    H12SSG-ANP6 User's Manual Motherboard Features Features • Single AMD Ryzen™ Threadripper™ PRO 3000/5000 Series, in one SP3 socket Memory • Up to 2TB registered ECC DDR4 up to 3200MHz in eight DIMM slots DIMM Size • Up to 256GB size at 1.2V Chipset •...
  • Page 13 Chapter 1: Introduction Features • Onboard voltage monitoring for +1.8V, 3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory • Onboard monitoring for CPU, system, and memory temperature • CPU switching phase voltage regulator • CPU Thermal Trip support Fan Control •...

  • Page 14: Motherboard Block Diagram

    H12SSG-ANP6 User's Manual Motherboard Block Diagram 01 Block Diagram------- H12SSG-AN6 AMD SP3 Rome Rev. 1.00 02 SMBus Diagram------- 03 Power Rail Diagram-- 04 Clock Tree Diagram-- 05 Reset Diagram------- 06 P0-MEM_CH_A_B------- 07 P0-MEM_CH_C_D------- 08 P0-MEM_CH_E_F------- 09 P0-MEM_CH_G_H------- JAIOM1 10 P0-DIMM-CH-A--------...

  • Page 15: Processor Overview

    BMC supports remote management, virtualization, and the security package for enterprise platforms. 1.3 Special Features This section describes the health monitoring features of the H12SSG-ANP6. The motherboard has an onboard System Hardware Monitor chip that supports system health monitoring. Recovery from AC Power Loss The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system.

  • Page 16: Fan Status Monitor With Firmware Control

    H12SSG-ANP6 User's Manual adjust the voltage thresholds to define the sensitivity of the voltage monitor. Real time readings of these voltage levels are all displayed in BMC. Fan Status Monitor with Firmware Control Users can check the RPM status of the cooling fans through the IPMI Web interface. The chassis fans are controlled by Thermal Management.

  • Page 17: Power Supply

    Chapter 1: Introduction 1.6 Power Supply As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates. In areas where noisy power transmission is present, you may choose to install a line filter to shield the computer from noise.

  • Page 18: Chapter 2 Installation

    H12SSG-ANP6 User's Manual Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

  • Page 19: Motherboard Installation

    Chapter 2: Installation 2.2 Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis.
  • Page 20 H12SSG-ANP6 User's Manual Figure 2-1. Motherboard Mounting Holes...

  • Page 21: Installing The Motherboard

    Chapter 2: Installation Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. See the previous page for the locations. 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard with the mounting holes on the chassis.

  • Page 22: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the Processor and Heatsink 1. Unscrew the screws holding down Force Frame in the sequence of 3-2-1. The screws are numbered on the force frame next to each screw hole.
  • Page 23 Chapter 2: Installation 2. The spring-loaded force frame will raise up after the last screw securing it (#1) is removed. Gently allow it to lift up to its stopping position. 3. Lift the rail frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the rail frame, lift it to a position so you can do the next step of removing the external cap.
  • Page 24 H12SSG-ANP6 User's Manual 4. Remove the external cap from the Rail Frame by pulling it upwards through the rail guides on the rail frame. External Cap PnP Cover Cap 5. The CPU package is shipped from the factory with the blue carrier frame pre-assembled.
  • Page 25 Chapter 2: Installation Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the rail frame plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the rail frame plate again, and double-check that the CPU is aligned properly.
  • Page 26 H12SSG-ANP6 User's Manual 9. Gently lower the force frame down onto the rail frame and hold it in place until it is seated in the Socket housing. Note that the force frame is spring loaded and has to be held in place before it is secured. Important: Use a torque screwdriver, set it at 16.1 kgf-cm (14.0 lbf-in) with a Torx T20 screw head bit, to prevent damage to the CPU.
  • Page 27 Chapter 2: Installation 11. After the force frame is secured and the CPU package is in place, now you must install the heatsink to the frame. Lower the heatsink down till it rests securely over the four screw holes on CPU package on the socket frame. 12.

  • Page 28: Memory Support And Installation

    Memory Support The H12SSG-ANP6 supports up to 4TB of ECC DDR4 3200 MHz speed, SDRAM memory in eight slots. Refer to the table below for additional memory information. Notes: Check the Supermicro website for possible updates to memory support.
  • Page 29 Chapter 2: Installation Populating RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS DDR4 Memory Modules Maximum DIMM Capacity (GB) Maximum Type DIMM Population Frequency (MHz) 1 Channel 8 Channels 1R (1 Rank) 32GB 256GB 3200 RDIMM 2R or 2DR (2 Ranks) 64GB 512GB 3200 LRDIMM dual die 4DR (4 Ranks) 128GB 3200...

  • Page 30: Dimm Module Population

    JCPLD1 H12SSG-ANP6 User's Manual JPWR4 JPCIE6 JPCIE5 DIMM Module Population There is no specific order or sequence required when installing memory modules. However do keep the following in mind: AIOM1 • Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the...

  • Page 31: Dimm Installation

    Chapter 2: Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots, there is no specific sequence or order required Receptive 2. Push the release tabs outwards on both Point ends of the DIMM slot to unlock it. 3.

  • Page 32: Rear I/O Ports

    H12SSG-ANP6 User's Manual 2.5 Rear I/O Ports See Figure 2-1 below for the locations and descriptions of the various I/O ports on the rear of the motherboard. Figure 2-2. I/O Port Locations and Definitions Rear I/O Ports Description Description COM Port USB Ports (USB3.1)
  • Page 33 See 2.6 for the front panel UID LED header location on JF1. Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com...

  • Page 34: Connectors

    H12SSG-ANP6 User's Manual 2.6 Connectors M.2 Slots (JM2_A1, JM2_B1) The M.2 slots are for Solid State Devices (SSDs) that conform to the PCIe M.2 specifications (formerly known as NGFF). These M.2 slots supports M-Key PCIe 4.0 storage cards with form factors of 2242, 2260, 2280, and 22110.
  • Page 35 USB3_TP AIOM Slot The Supermicro Advanced I/O Module (AIOM) PCIe 4.0 x16 slot (AIOM1) can be utilized to offer additional LAN ports, VPU, storage devices, etc. on the motherboard. Please visit the Supermicro website for all available module options. Also, please note that it is mandatory to unplug power cords prior to removing or installing an AIOM module card.
  • Page 36 H12SSG-ANP6 User's Manual GPU 12V 8-pin Power Connectors (JPWR1 - JPWR4) JPWR1, JPWR2, JPWR3, and JPWR4 are all 8-pin 12V DC power inputs for GPUs that have been installed in the system's PCIe slots. Refer to the table below for pin definitions.

  • Page 37: Jumper Settings

    Chapter 2: Installation 2.7 Jumper Settings How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin #1 is identified with a thicker border line on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2.
  • Page 38 H12SSG-ANP6 User's Manual Watch Dog (JWD1) JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs.

  • Page 39: Led Indicators

    Chapter 2: Installation 2.8 LED Indicators IPMI LAN Port LEDs The IPMI LAN port has two LED indicators. The Activity LED is green and indicates connection and activity. The Link LED may be green, orange/amber, or off to indicate the speed of the connection.
  • Page 40 H12SSG-ANP6 User's Manual Power LED The Power LED is designated as LED2 on the motherboard. When this LED is lit, it means that power is present on the motherboard. In suspend mode, this LED will blink on and off. Be sure to turn off the system and unplug the power cord(s) before removing or installing components.

  • Page 41: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

  • Page 42: No Video

    H12SSG-ANP6 User's Manual No Video 1. If the power is on but you have no video, remove all the add-on cards and cables. 2. Set JPG1 to [1-2] and check if you follow the guidelines to install the memory module.

  • Page 43: When The System Becomes Unstable

    2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility. Note: Refer to the product page on our website at http:\\www.supermicro.com for memory and CPU support and updates. 3. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.

  • Page 44: Technical Support Procedures

    H12SSG-ANP6 User's Manual 4. Identifying bad components by isolating them: If necessary, remove a component in question from the chassis, and test it in isolation to make sure that it works properly. Replace a bad component with a good one.

  • Page 45: Frequently Asked Questions

    3.3 Frequently Asked Questions Question: What type of memory does my motherboard support? Answer: The H12SSG-ANP6 motherboard supports up to 2TB registered ECC DDR4 up to 3200MHz memory in eight slots. See Section 2.4 for details on installing memory. Question: How do I update my BIOS? Answer: It is recommended that you do not upgrade your BIOS if you are not experiencing any problems with your system.

  • Page 46: Returning Merchandise For Service

    H12SSG-ANP6 User's Manual 3.4 Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number.

  • Page 47: Proper Battery Disposal

    Chapter 3: Troubleshooting Proper Battery Disposal Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

  • Page 48: Chapter 4 Bios (Threadripper Pro 3000)

    BIOS (Threadripper PRO 3000) 4.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H12SSG-ANP6 motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 49: Main Setup

    Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is 01/01/2015 after RTC reset. Supermicro H12SSG-ANP6 BIOS Version This item displays the version of the BIOS ROM used in the system.
  • Page 50 H12SSG-ANP6 User's Manual CPLD Version This item displays the CPLD version of the BIOS ROM used in the system. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 51: Advanced

    Chapter 4: BIOS 4.3 Advanced Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 52 H12SSG-ANP6 User's Manual Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are On and Off. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs.
  • Page 53 Chapter 4: BIOS Security Device Support Enables or disables BIOS support for secuirty device. OS will not show Security Device. TCG EFI protocol and INT1A interface will not be available. The options are Disabled and Enabled. NO Security Device Found PSP Firmware Versions This section displays the Platform Security Processor (PSP) firmware versions.
  • Page 54 H12SSG-ANP6 User's Manual Serial Port 1 Configuration Serial Port Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled. Device Settings This item displays the status of a serial part specified by the user. Change Settings This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user.
  • Page 55 Chapter 4: BIOS Console Redirection Settings Console Redirection Select Enabled to enable SOL console redirection support for a serial port specified by the user. The options are Enabled and Disabled. *If the item above set to Enabled, the following items will become available for user's configuration: Console Redirection Settings Terminal Type...
  • Page 56 H12SSG-ANP6 User's Manual Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.
  • Page 57 Chapter 4: BIOS *If the item above set to Enabled, the following items will become available for user's configuration: CPU Configuration SMT Control Use this setting to disable symmetric multithreading. Options include Disabled and Auto. Core Performance Boost This setting is used to configure for Core Performance Boost. Options include Auto and Disabled.
  • Page 58 H12SSG-ANP6 User's Manual CPU1 Information These sections are for informational purposes. They will display some details about the detected CPUs on the motherboard, such as: • CPU Version • Number of Cores Running • Processor Family • Processor Model •...
  • Page 59 Chapter 4: BIOS Memory Configuration Memory Clock This setting allows you to select different memory clock speed. Options include Auto, 2667 MHz, 2933 MHz, and 3200 MHz. Memory interleaving This setting controls fabric level memory interleaving. Note that the channel, die and socket have requirements on memory populations and it will be ignored if the memory doesn't support the selected option.
  • Page 60 H12SSG-ANP6 User's Manual PCI Bus Driver Version PCI Devices Common Settings: Above 4G Decoding This setting Enables or Disables 64-bit capable devices ability to be decoded in above 4G address space (only if the system supports 64-bit PCI decoding). SR-IOV Support If the system has SR-IOV capable PCI-E devices, this setting will Enable or Disable the Single Root IO Virtualization Support for the system.
  • Page 61 Chapter 4: BIOS JM2_A1 OPROM Use this setting to enable or disable the JM2_A1 OPROM option. The options are Disabled and EFI. AIOM OPROM Use this setting to enable or disable the AIOM OPROM option. The options are Disabled and EFI. JM2_B1 OPROM Use this setting to enable or disable the JM2_B1 OPROM option.
  • Page 62 H12SSG-ANP6 User's Manual Port 60/64 Emulation Enables I/O port 60h/64h emulation support. This should be enabled for complete USB keyboard legacy support for non-USB aware OS's. Options are Enabled and Disabled. Network Configuration Network Stack This setting allows you to Enable or Disable the UEFI Network Stack.
  • Page 63 Chapter 4: BIOS MAC:3CECEF4B0AED - IPv6 Network Configuration Use this setting to view IPv6 network configuration. MAC:3CECEF4B0AEE - IPv4 Network Configuration Use this setting to view IPv4 network configuration. MAC:3CECEF4B0AEE - IPv6 Network Configuration Use this setting to view IPv6 network configuration. MAC:3CECEF4B0AEF - IPv4 Network Configuration Use this setting to view IPv4 network configuration.
  • Page 64 H12SSG-ANP6 User's Manual Instance of Priority 1 Default to 1. Select IPv4 of IPv6 Choose to set the targeted LAN port to boot from IPv4 or IPv6. Boot Description Must be filled out, otherwise boot option for the URI will not be created. Length of description cannot exceed 75 characters.
  • Page 65 Chapter 4: BIOS Link Status Factory MAC Address Alternate MAC Address Intel(R) I350 Gigabit Network Connection - 3C:EC:EF:B4:0A:ED Port Configuration Menu NIC Configuration Link Speed Select the link speed and duplex for current port. The options are AutoNeg, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, and 100 Mbps Full.
  • Page 66 H12SSG-ANP6 User's Manual NIC Configuration Link Speed Select the link speed and duplex for current port. The options are AutoNeg, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, and 100 Mbps Full. Wake on LAN This feature wakes up the system with a magic packet. The options are Disabled and Enabled.
  • Page 67 Chapter 4: BIOS Set to blink LEDs for the specifies duration (up to 15 seconds). Port Configuration Information UEFI Driver Adapter PBA Chip Type PCI Device ID PCI Bus:Device:Function: Link Status Factory MAC Address Alternate MAC Address TLS Authenticate Configuration This submenu allows the user to configure Transport Layer Security (TLS) settings.
  • Page 68 H12SSG-ANP6 User's Manual Intel 10GbE Driver 5.8.06 x64 This provides the health status for the drivers and controllers.

  • Page 69: Ipmi

    Chapter 4: BIOS 4.4 IPMI This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system.
  • Page 70 H12SSG-ANP6 User's Manual Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.
  • Page 71 Chapter 4: BIOS This item displays the Station MAC address for this computer. This should be in decimal and in dotted quad form. Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

  • Page 72: Event Logs

    H12SSG-ANP6 User's Manual 4.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 73 Chapter 4: BIOS When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately. SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events.

  • Page 74: Security

    H12SSG-ANP6 User's Manual 4.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press Enter to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well.
  • Page 75 Chapter 4: BIOS Secure Boot This section contains options and menus for securing your boot mode and for key management. Secure Boot This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Enabled and Disabled.
  • Page 76 H12SSG-ANP6 User's Manual The options are Yes and No. Secure Boot Variable This feature allows you to decide if all secure boot variables should be saved. Platform Key (PK) This feature allows you to configure the settings of the platform keys.

  • Page 77: Boot

    Chapter 4: BIOS 4.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and Dual. The default setting is DUAL. Legacy to EFI Support This option Enables or Disables the system to boot to an EFI OS after the boot failed from the legacy boot order.
  • Page 78 H12SSG-ANP6 User's Manual Use this feature to add a boot option to the boot order. Boot Option #3 Use this feature to add a boot option to the boot order. Boot Option #4 Use this feature to add a boot option to the boot order.
  • Page 79 Chapter 4: BIOS UEFI Application Boot Priorities This feature allows the user to specify which UEFI devices are boot devices. • Boot Option #1...

  • Page 80: Save & Exit

    H12SSG-ANP6 User's Manual 4.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 81 Chapter 4: BIOS Default Options Restore Optimized Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 82: Chapter 5 Bios (Threadripper Pro 5000)

    BIOS (Threadripper PRO 5000) 5.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H12SSG-ANP6 motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 83: Main Setup

    Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is 01/01/2015 after RTC reset. Supermicro H12SSG-ANP6 BIOS Version This item displays the version of the BIOS ROM used in the system.
  • Page 84 H12SSG-ANP6 User's Manual CPLD Version This item displays the CPLD version of the BIOS ROM used in the system. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 85: Advanced

    Chapter 5: BIOS 5.3 Advanced Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 86 H12SSG-ANP6 User's Manual Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are On and Off. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs.
  • Page 87 Chapter 5: BIOS Security Device Support Enables or disables BIOS support for secuirty device. OS will not show Security Device. TCG EFI protocol and INT1A interface will not be available. The options are Disabled and Enabled. NO Security Device Found PSP Firmware Versions This section displays the Platform Security Processor (PSP) firmware versions.
  • Page 88 H12SSG-ANP6 User's Manual Serial Port 1 Configuration Serial Port Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled. Device Settings This item displays the status of a serial part specified by the user. Change Settings This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user.
  • Page 89 Chapter 5: BIOS Console Redirection Settings Console Redirection Select Enabled to enable SOL console redirection support for a serial port specified by the user. The options are Enabled and Disabled. *If the item above set to Enabled, the following items will become available for user's configuration: Console Redirection Settings Terminal Type...
  • Page 90 H12SSG-ANP6 User's Manual Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.
  • Page 91 Chapter 5: BIOS *If the item above set to Enabled, the following items will become available for user's configuration: CPU Configuration SMT Control Use this setting to disable symmetric multithreading. Options include Disabled and Auto. Core Performance Boost This setting is used to configure for Core Performance Boost. Options include Auto and Disabled.
  • Page 92 H12SSG-ANP6 User's Manual CPU1 Information These sections are for informational purposes. They will display some details about the detected CPUs on the motherboard, such as: • CPU Version • Number of Cores Running • Processor Family • Processor Model •...
  • Page 93 Chapter 5: BIOS Options include Disabled, Enabled, and Auto. Preferred IO Options include Manual and Auto. LCLK Frequency Control Root Complex 0x00 LCLK Frequency Set the Root Complex LCLK frequency. Options include Auto and 593MHz. Root Complex 0x40 LCLK Frequency Set the Root Complex LCLK frequency.
  • Page 94 H12SSG-ANP6 User's Manual BankGroupSwap This setting controls the Bank Group Swap. Options include Enabled, Disabled and Auto DRAM Scrub Time This setting provides a value that is the number of hours to scrub memory. Options include Disabled, 1 hour, 4 hours, 8 hours, 16 hours, 24 hours, 48 hours, and Auto.
  • Page 95 Chapter 5: BIOS Use this setting to enable PCIe ten bit tags for supported devices. The options are Disabled, Enabled and Auto. PCIe Spread Spectrum Use this setting to Enable or Disable PCIe Spread Spectrum for your system. Relaxed Ordering Use this setting to Enable or Disable PCI Express Device Relaxed Ordering.
  • Page 96 H12SSG-ANP6 User's Manual RSC-GB-66G4 Slot1 PCI-E 4.0 x16 OPROM Use this setting to enable or disable PCI/PCIX/PCIe slot 6. The options are Disabled and EFI. RSC-GB-66G4 Slot2 PCI-E 4.0 x16 OPROM Use this setting to enable or disable PCI/PCIX/PCIe slot 6. The options are Disabled and EFI.
  • Page 97 Chapter 5: BIOS This setting allows you to Enable or Disable IPv4 HTTP boot support. If disabled, IPv4 HTTP boot support will not be available. IPv6 PXE Support This setting allows you to Enable or Disable IPv6 PXE boot support. If disabled, IPv6 PXE boot support will not be available.
  • Page 98 H12SSG-ANP6 User's Manual SATA Information Use this setting to view SATA devices information. HTTP Boot Configuration HTTP Boot Configuration HTTP Boot Policy Sets the HTTP boot policy to Appply to all LANs, Apply to each LAN, and Boot Priority #1 instantly.
  • Page 99 Chapter 5: BIOS NVMe device lock policy. Options include Normal Unlock, Reset All Devices, Delete Key Id List, Do Nothing. Client UserName Enter Client Username, cannot exceed 31 characters. ClientPassword Enter Client Password, cannot exceed 31 characters. KMS TLS Certificate | Size CA Certificate | 0 Enroll factory defaults or load the KMS TLS certificates from the file.
  • Page 100 H12SSG-ANP6 User's Manual UEFI Driver Adapter PBA Chip Type PCI Device ID PCI Bus:Device:Function: Link Status Factory MAC Address Alternate MAC Address Intel(R) I350 Gigabit Network Connection - 3C:EC:EF:F3:01:F7 Port Configuration Menu NIC Configuration Link Speed Select the link speed and duplex for current port. The options are AutoNeg, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, and 100 Mbps Full.
  • Page 101 Chapter 5: BIOS Alternate MAC Address TLS Authenticate Configuration This submenu allows the user to configure Transport Layer Security (TLS) settings. Server CA Configuration Enroll Certification Enroll Certification Using File Use this feature to enroll certification from a file. Certification GUID Use this feature to input the certification GUID.

  • Page 102: Ipmi

    H12SSG-ANP6 User's Manual 5.4 IPMI This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system.
  • Page 103 Chapter 5: BIOS Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.
  • Page 104 H12SSG-ANP6 User's Manual This item displays the Station MAC address for this computer. This should be in decimal and in dotted quad form. Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

  • Page 105: Event Logs

    Chapter 5: BIOS 5.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 106 H12SSG-ANP6 User's Manual When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

  • Page 107: Security

    Chapter 5: BIOS 5.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press Enter to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well. User Password Press Enter to create a new, or change an existing User password.
  • Page 108 H12SSG-ANP6 User's Manual Secure Boot This section contains options and menus for securing your boot mode and for key management. Secure Boot This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Enabled and Disabled.
  • Page 109 Chapter 5: BIOS The options are Yes and No. Secure Boot Variable This feature allows you to decide if all secure boot variables should be saved. Platform Key (PK) This feature allows you to configure the settings of the platform keys. Set New Key Select Yes to load the new platform keys (PK) from the manufacturer's defaults.

  • Page 110: Boot

    H12SSG-ANP6 User's Manual 5.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and Dual. The default setting is DUAL.
  • Page 111 Chapter 5: BIOS Use this feature to add a boot option to the boot order. Boot Option #3 Use this feature to add a boot option to the boot order. Boot Option #4 Use this feature to add a boot option to the boot order. Boot Option #5 Use this feature to add a boot option to the boot order.
  • Page 112 H12SSG-ANP6 User's Manual UEFI Application Boot Priorities This feature allows the user to specify which UEFI devices are boot devices. • Boot Option #1...

  • Page 113: Save & Exit

    Chapter 5: BIOS 5.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 114 H12SSG-ANP6 User's Manual Default Options Restore Optimized Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 115: Appendix A Software

    IPMI KVM console. 2. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 116 H12SSG-ANP6 User's Manual 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner.

  • Page 117: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash or media drive.

  • Page 118: Superdoctor ® 5

    A.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 119: Appendix B Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 120 H12SSG-ANP6 User's Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Reemplazar la batería exclusivamente con el mismo tipo o el equivalente recomendado por el fabricante.

  • Page 121: Product Disposal

    Appendix B: Warning Statements B.2 Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 122: Appendix C Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 123 USB flash or media drive with FAT16 or FAT32 format and rename the file to SUPER.ROM. Note: If you cannot locate the "SUPER.ROM" file in your driver disk, visit our website at www.supermicro.com to download the correct BIOS image into a USB flash device and rename it "SUPER.ROM".
  • Page 124 SUPERMICO BIOS Update: https://www.youtube.com/watch?v=S8z6iOEHGwY * If the BIOS flash recovery fails, contact our RMA Department to have the BIOS chip reprogrammed. This will require shipping the board to Supermicro for repair. Submit your RMA request at https://www.supermicro.com/support/rma Please make sure to follow all instructions when returning the motherboard.
