10.4 Demagnetization

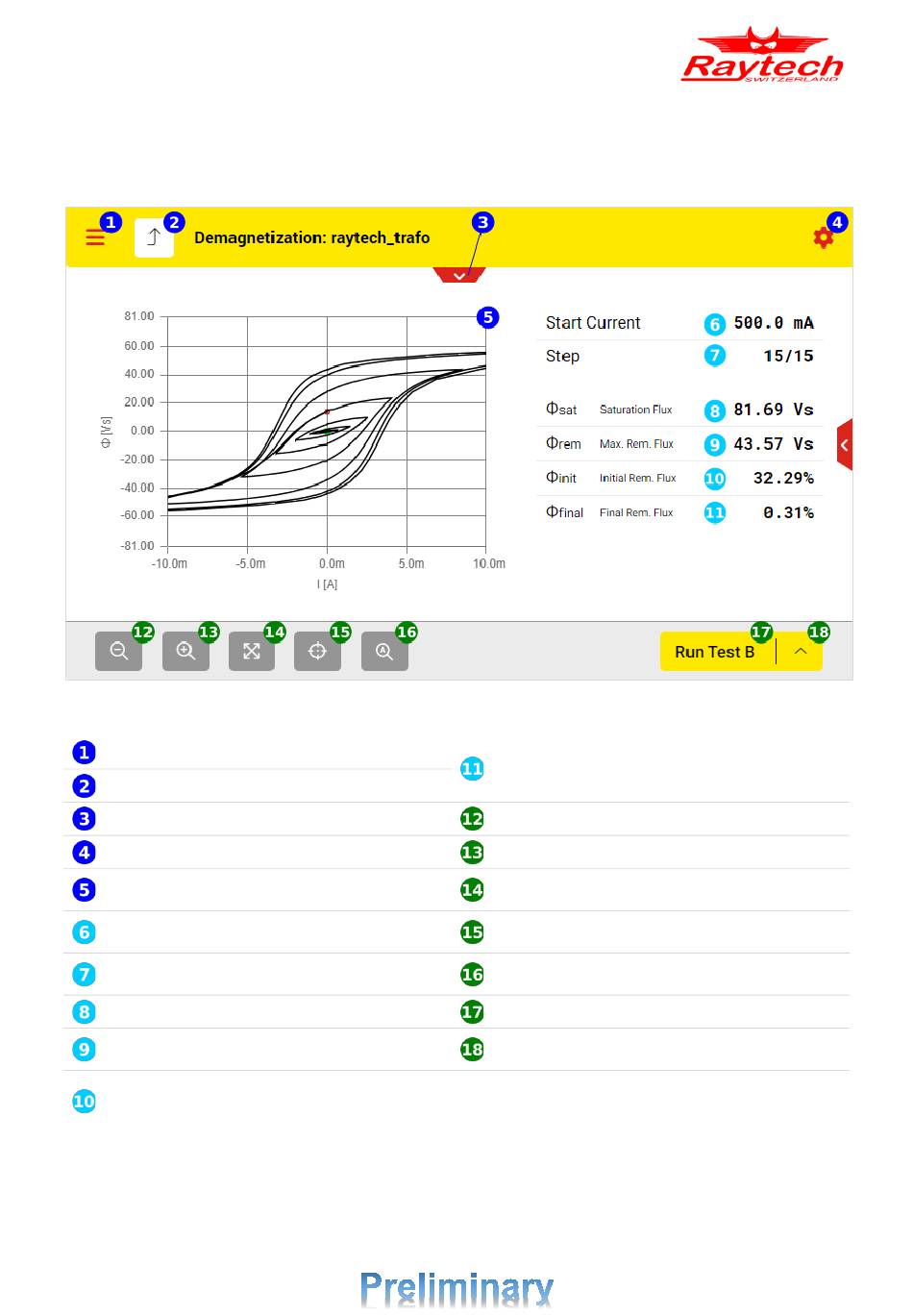

Figure 59 shows the demagnetization view and Figure 60 shows the demagnetization view during
the test and following each one, the important parts are explained.
Open the main menu
Back to the test plan page
Open test object quick access
Test settings
The demagnetization curve (Zoomable
with two fingers)
The adjusted start current that injects
into the primary winding
Number of cycles already performed
from all cycles
The measured saturation flux
The measured maximum remanence flux
The measured initial remanence flux in
% (as the percentage of the measured
maximum remanence flux)
90297-0.22 Instruction Manual mini-ATOS
Figure 59: Demagnetization view
The measured final remanence flux in %
(as the percentage of the measured
maximum remanence flux)
Zoom out
Zoom in
Maximize the graph view
Centre the graph view
Automatic adaptive graph view
The button to run the test
Test mode to select which phase to
perform the demagnetization
