10.3.2 Winding Resistance Interval Result View
By tapping the Results button in the measurement view, the result view will be opened. Result view
includes graphs and table. Figure 57 shows the Primary winding resistance graph view. From the
drop-down list on top right, it is possible to select also other graphs.

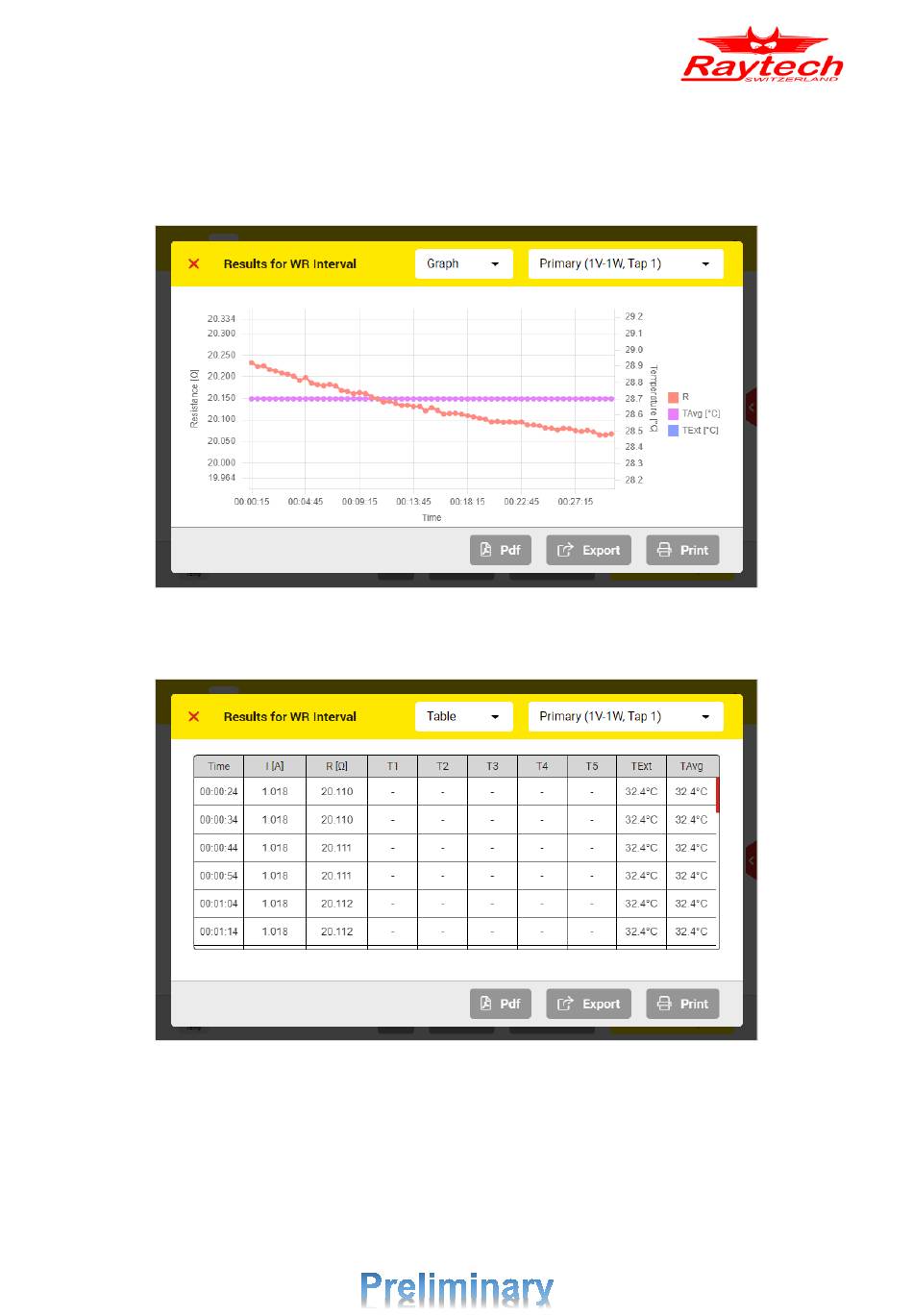

Figure 57: Winding resistance interval graph results view
Figure 58 shows also the Primary table results.
Figure 58: Winding resistance interval table results view
90297-0.22 Instruction Manual mini-ATOS
