Figure 49 shows the winding resistance temperature settings.

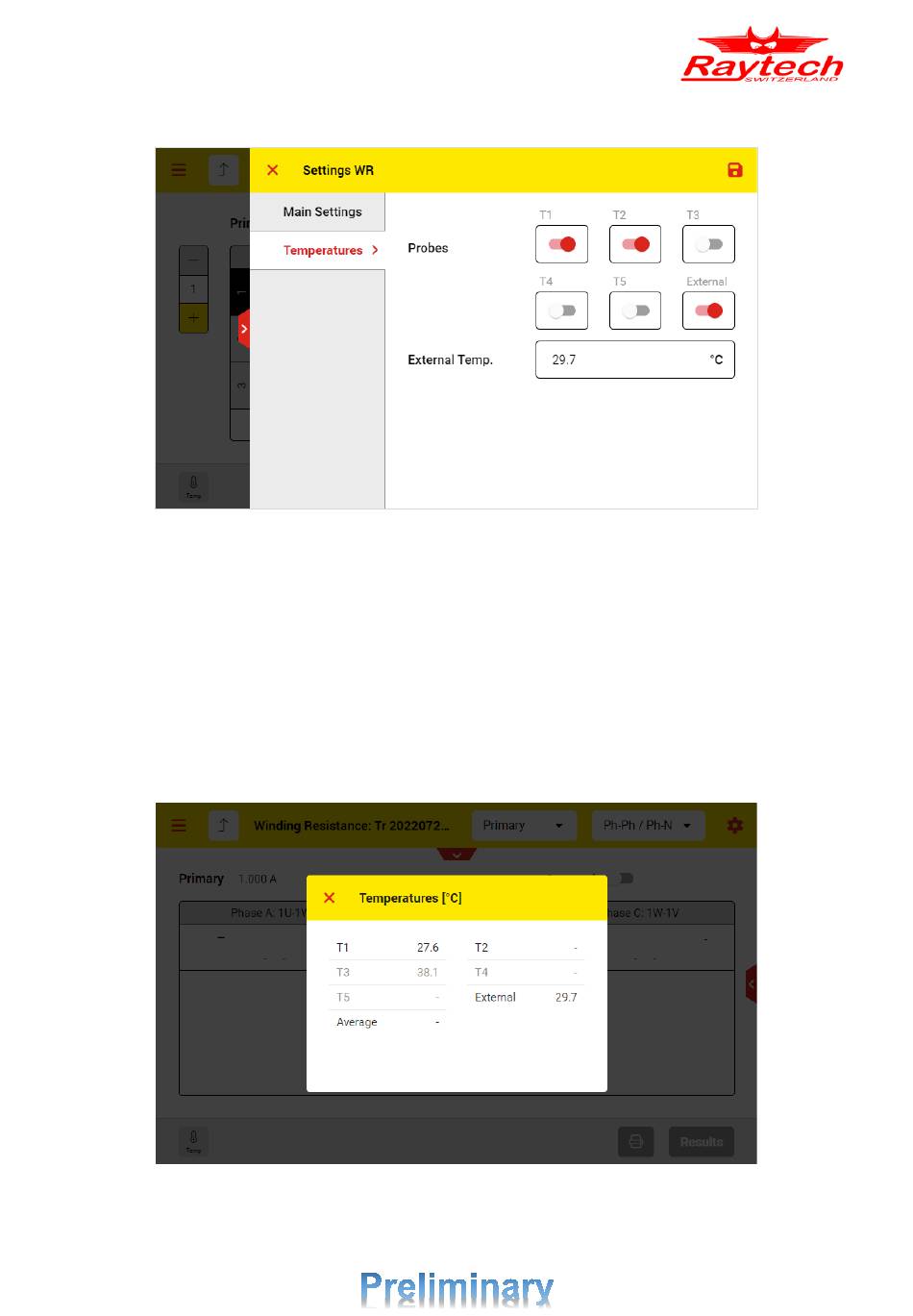

Figure 49: Winding resistance temperatures settings
In temperature settings, it is possible to enable each of the 5 temperature channels to record.
When there is an external temperature probe, the External switch should be enabled. The reading
value must be also entered manually.
The mini-ATOS use the average of all temperature values for the temperature correction.
In the actual temperature window (Figure 50) which you can open from the measuring screen, you
can see the actual temperature values. Here T1 is plugged-in and also activated in the setting. T2
is activated but not plugged-in. In this case, the mini-ATOS shows an error message after starting
the measurement. And T3 is not activated but plugged in. Please note that the average value is
missing because of T2.
