The winding resistance measurement view during the test is shown in Figure 46 and following it,
important parts are explained.
The warning symbol shows that it is not safe to touch the cables and test clamps
The highlighted cell shows which phase and tap are currently under the test
The output current bars show what is the actual value of output current for each channel
and which terminals are used to inject the currents.
By tapping the continuous button
continuous mode and the test will not stop automatically. The instrument keeps performing
the test on the phase under the test until the user action
The stop button can be used to stop the test. Please note that it takes time to discharge
and stop the test
WARNING!
After measurement stop, it takes time to discharge the test object!
Wait until the device mode changes to safe mode before any other
action!
2
When the ambient temperature is above 40°C, Continuous mode winding resistance measurement,
specially with maximum output power, must be limited to 30 minutes and before the next measurement a
cooldown time of 30 minutes is required.
90297-0.22 Instruction Manual mini-ATOS

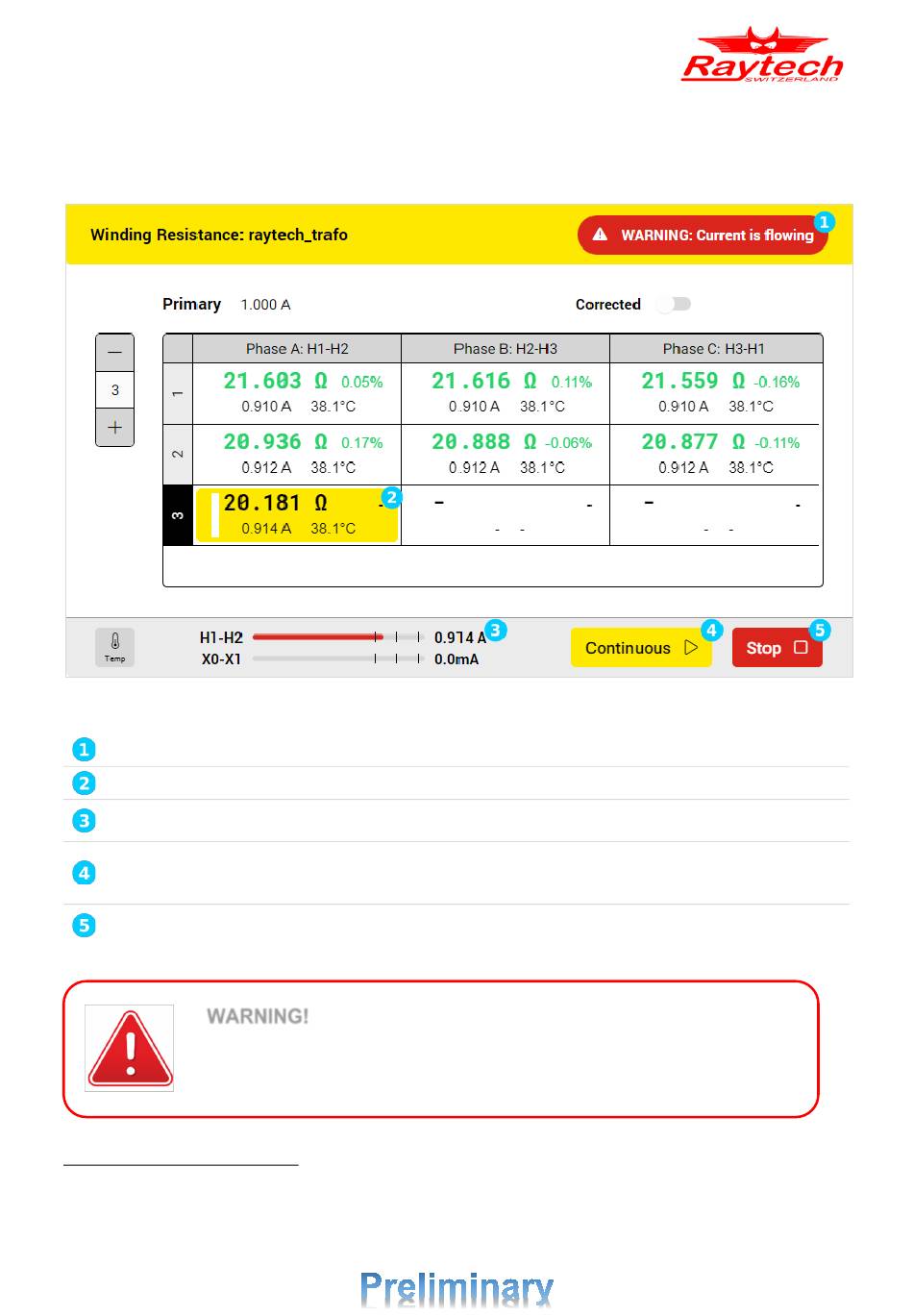

Figure 46: Winding resistance measurement view during the test
2
, the test mode changes from single-measurement to
Page 55 of 92
