10.1.3 Turns Ratio Results View
By tapping the Results button in the turns ratio measurement view, the result view will be opened.

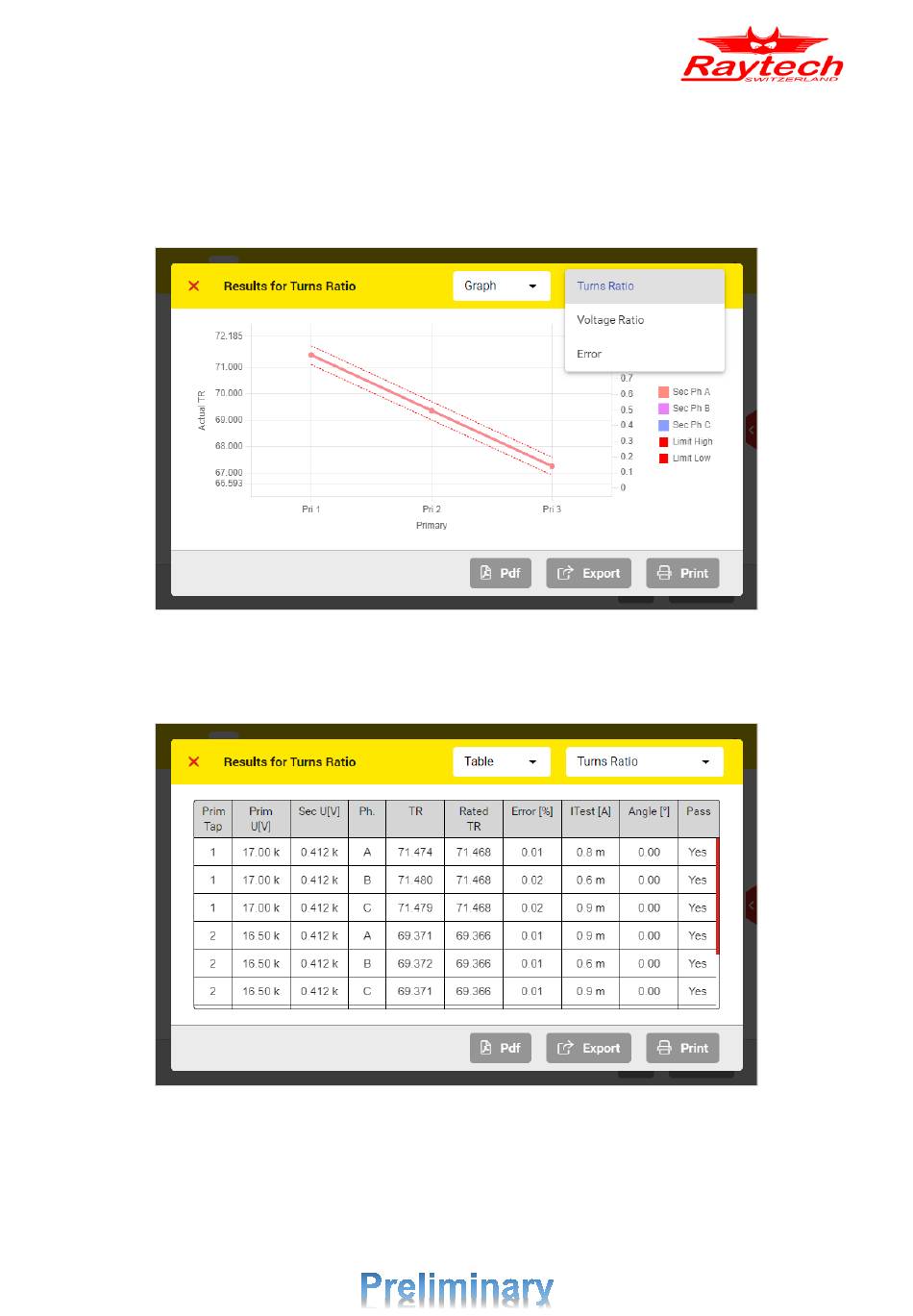

Result view includes graphs and table. Figure 43 shows the turns ratio graph view. From the drop-
down list on top right, it is possible to select various graphs. These are turns ratio, voltage ratio and
error graph.
Figure 43: Turn ratio graph results view
Figure 44 shows also the turns ratio table results. By tapping the TR or the Rated TR column
header, it is possible to switch between turns ratio and voltage ratio values.
Figure 44: Turns ratio table results view
90297-0.22 Instruction Manual mini-ATOS
Page 53 of 92
