Speakerphone set
and Display Speakerphone set
User guide
79-500-0006/F
Issue 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Speakerphone set and is the answer not in the manual?

Questions and answers

Related Manuals for Telrad Speakerphone set

Summary of Contents for Telrad Speakerphone set

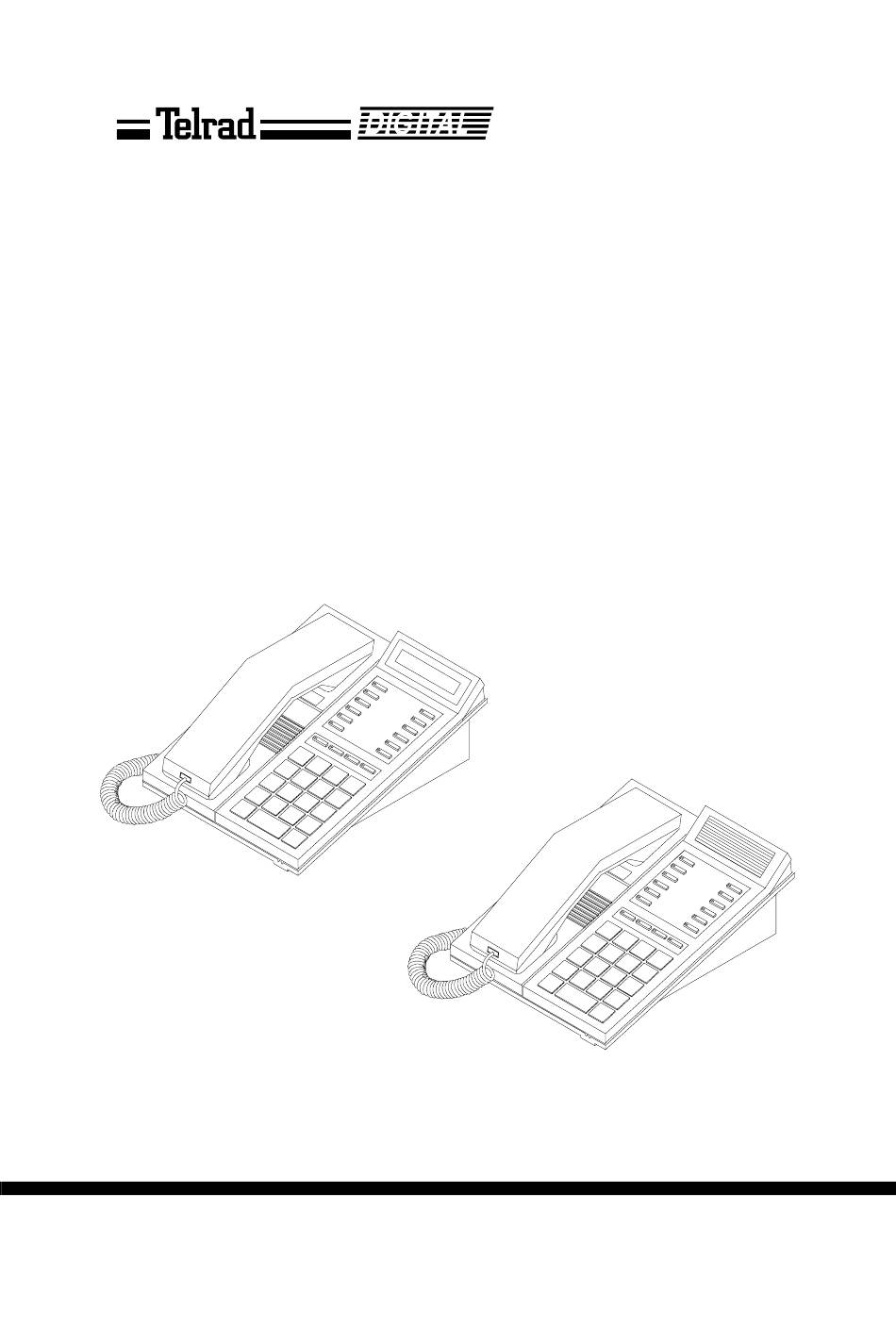

  • Page 1 Speakerphone set and Display Speakerphone set User guide 79-500-0006/F Issue 1...
  • Page 2 79-500-0006/F, Issue 1 Speakerphone set and Diplay Speakerphone set User guide Telrad Telecommunications Inc., Woodbury, New York...
  • Page 3 79-500-0006/F, Issue 1...
  • Page 4 NOTICE This publication refers to Telrad's Speakerphone set and Display Speakerphone set connected to Telrad's DIGITAL KEY BX system, Release SBU6, or Telrad's DIGITAL 400 system, Release DBU6, as of March 1998. Telrad reserves the right to modify the equipment and the software described herein without prior notice.

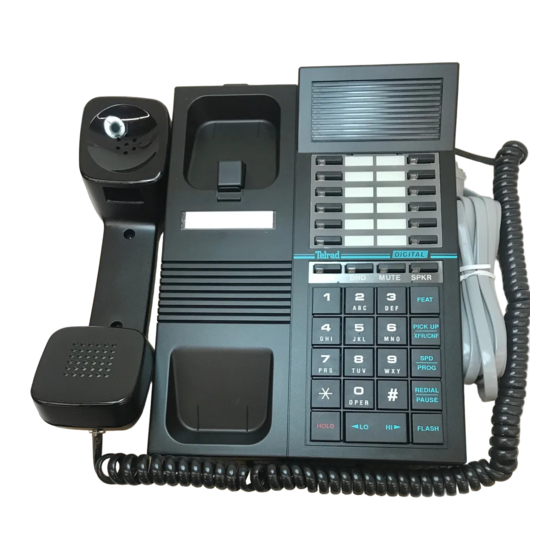

  • Page 5 Figure 1 Display Speakerphone set faceplate...

  • Page 6: About Your Digital Telephone

    ABOUT YOUR DIGITAL TELEPHONE The Speakerphone set and the Display Speakerphone set are equipped with onhook dialing, full speakerphone and hot dialpad capability, which enables you to make a call or operate any feature by pressing the dialpad buttons. You may also receive and disconnect calls, program features and perform all operations without lifting the handset.
  • Page 7 NOTE The [PICK UP/XFR/CNF] button is referred to as [PICK UP], [XFR] or [CNF], depending on the operation being described. [SPD/PROG] This button is used for speed dialing and for programming various features. Speakerphone set and Display Speakerphone set...
  • Page 8 [MSG], [DND], [MUTE] and [SPKR]. [MSG] This button is used to send messages to other extensions and to reply to messages left at your extension. [DND] This button activates and deactivates Do Not Disturb. Speakerphone set and Display Speakerphone set...
  • Page 9 NOTE Not all telephone sets are programmed with DN buttons. The instructions in this manual often con- tain references to DN indicators and displays of DN Speakerphone set and Display Speakerphone set...

  • Page 10: Switching From Handset To Handsfree Operation

    If so, see your System Administrator for the correct codes. SWITCHING FROM HANDSET TO HANDSFREE OPERATION During a call conducted via the handset: 1. Press [SPKR]. 2. Replace the handset and talk via the telephone set microphone. Speakerphone set and Display Speakerphone set...

  • Page 11: Distinctive Ringing

    When you hear the ring that you want: 3. Press [#]. 4. Lift and replace the handset. Your telephone set reinitializes and all telephone rings (internal, external, recall, etc.) sound with the distinctive ring selected. Speakerphone set and Display Speakerphone set...

  • Page 12: Allowing Other People To Hear Your Conversation (Speaker Monitor)

    1. Press [FEAT]. 2. Press [SPKR]. The [SPKR] button indicator turns on. Both you and the other party are heard via the speaker. Speakerphone set and Display Speakerphone set...

  • Page 13: Hot Dialpad

    HOT DIALPAD The hot dialpad enables you to dial and activate features without lifting the handset or pressing [SPKR] first. NOTE The instructions in this guide assume that you have hot dialpad capability. Speakerphone set and Display Speakerphone set...

  • Page 14: Internal Calls

    4. Press [SPKR] or lift the handset. You hear the called extension ringing. To cancel Callback 1. Dial the cancel code ([#]). 2. Press [FEAT]. 3. Dial the CALLBACK/QUEUE access code ([2][2]). 4. Hang up. Speakerphone set and Display Speakerphone set...

  • Page 15: Barge Into A Conversation

    (MEET ME PAGE) You can call a page initiator during a page call: 1. Lift the handset. 2. Press [FEAT]. 3. Dial the MEET ME PAGE access code ([6][6]). 4. Dial the PAGE zone access code. Speakerphone set and Display Speakerphone set...

  • Page 16: Answering Calls

    If you prefer, you may lift the handset instead. CALL WAITING You may hear either a ring or a beep, indicating a second call, while already engaged in a conversation. You can answer the call without disconnecting the first call. Speakerphone set and Display Speakerphone set...
  • Page 17 This means that you cannot answer another arriving internal call without disconnecting the first internal call. In this case, you must hang up first. You can then answer the second call when it rings. Speakerphone set and Display Speakerphone set...

  • Page 18: Outside Calls

    1. Obtain an outside line. 2. Press [REDIAL]. To save a frequently dialed outside number (SAVE/REPEAT) After dialing the desired number, but before hanging up: 1. Press [FEAT] 2. Dial the SAVE/REPEAT access code. Speakerphone set and Display Speakerphone set...

  • Page 19: Automatic Redial

    2. Dial the CALLBACK/QUEUE access code ([2][2]). When an outside line becomes available, the system rings your extension. Then: 3. Press [SPKR] or lift the handset. 4. Listen for outside dial tone and dial the desired number. Speakerphone set and Display Speakerphone set...

  • Page 20: Circumvent Extension Restrictions

    3. Dial your ECC authorization code or a Global COS code. The [TC] indicator (if defined) lights. The Travel COS feature is active for a predefined period. 4. Access an outside line and place a call. Speakerphone set and Display Speakerphone set...
