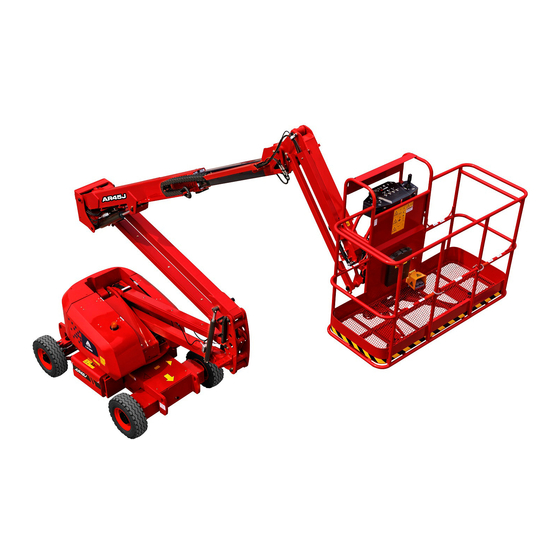

Articulated boom mobile elevating work platform
Hide thumbs Also See for AR45J:
Table of Contents

Advertisement

Quick Links

Download this manual

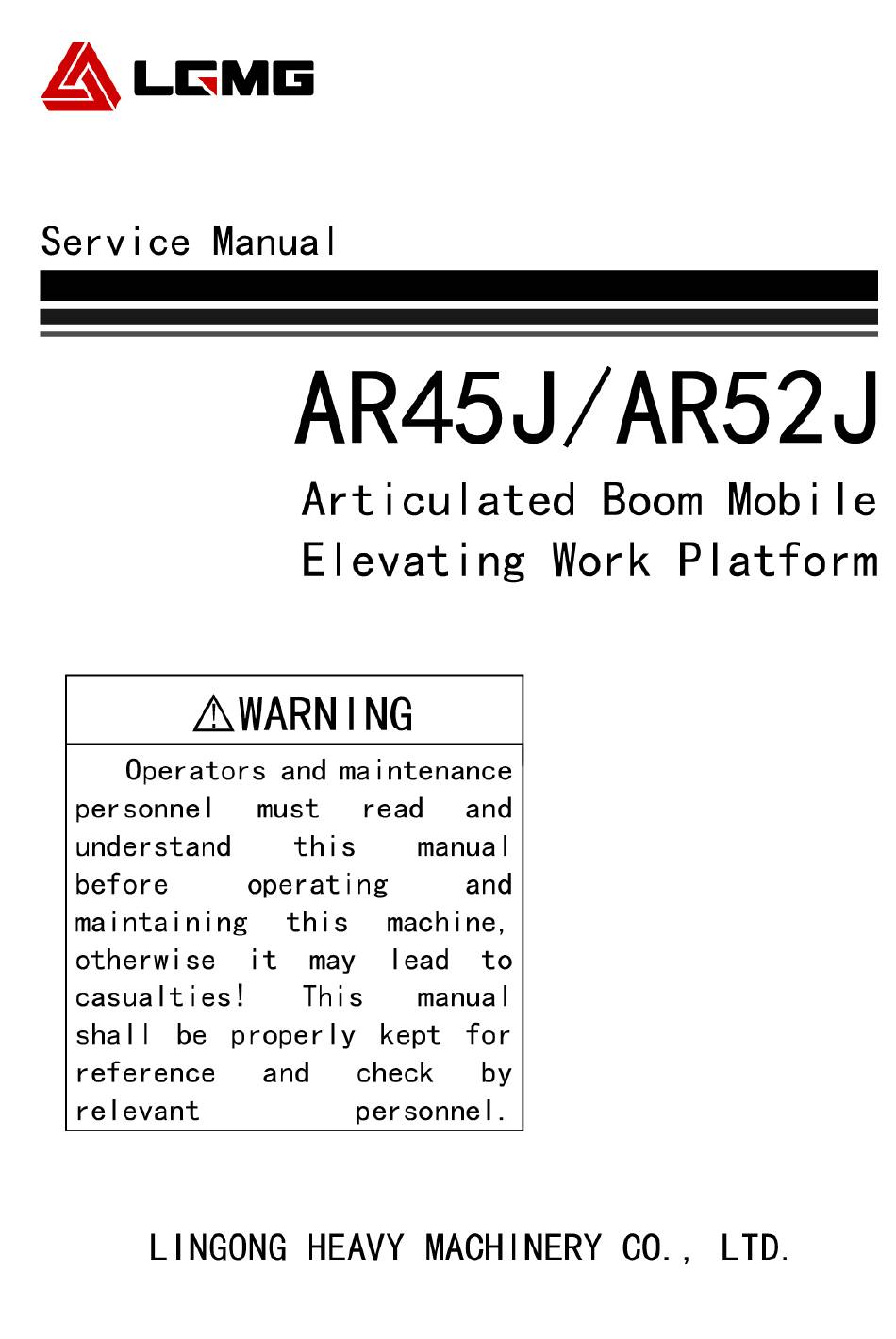

Service manual
AR45J、AR52J
Articulated Boom Mobile
Elevating Work Platform
△
WARNING
!
Before operation and maintenance, the
drivers and maintenance personnel are
required to read this manual thoroughly.
Otherwise, fatal accident may occur. This
manual shall be kept properly for future
reference by the personnel concerned.
LINGONG HEAVY MACHINERY CO.，LTD.
