ELECTRICAL INSTALLATION
Your ECOsmarte Pool System comes with paired wires for easy installa-
tion. If you remove the Electrode Chamber or re-install the System at
another location then consult this electronic guide. The Electronic Control
Box requires 110 volts A/C and will transform the current to low voltage
DC current. The output depends upon which setting you chose, low or
high. If additional wire is needed, standard 2 wire telephone cord can be
used (make sure you purchase butt-end connectors).
INSTALLATION METHOD #1
Mount the Electronic Control Box on a wall or fence near the pump and

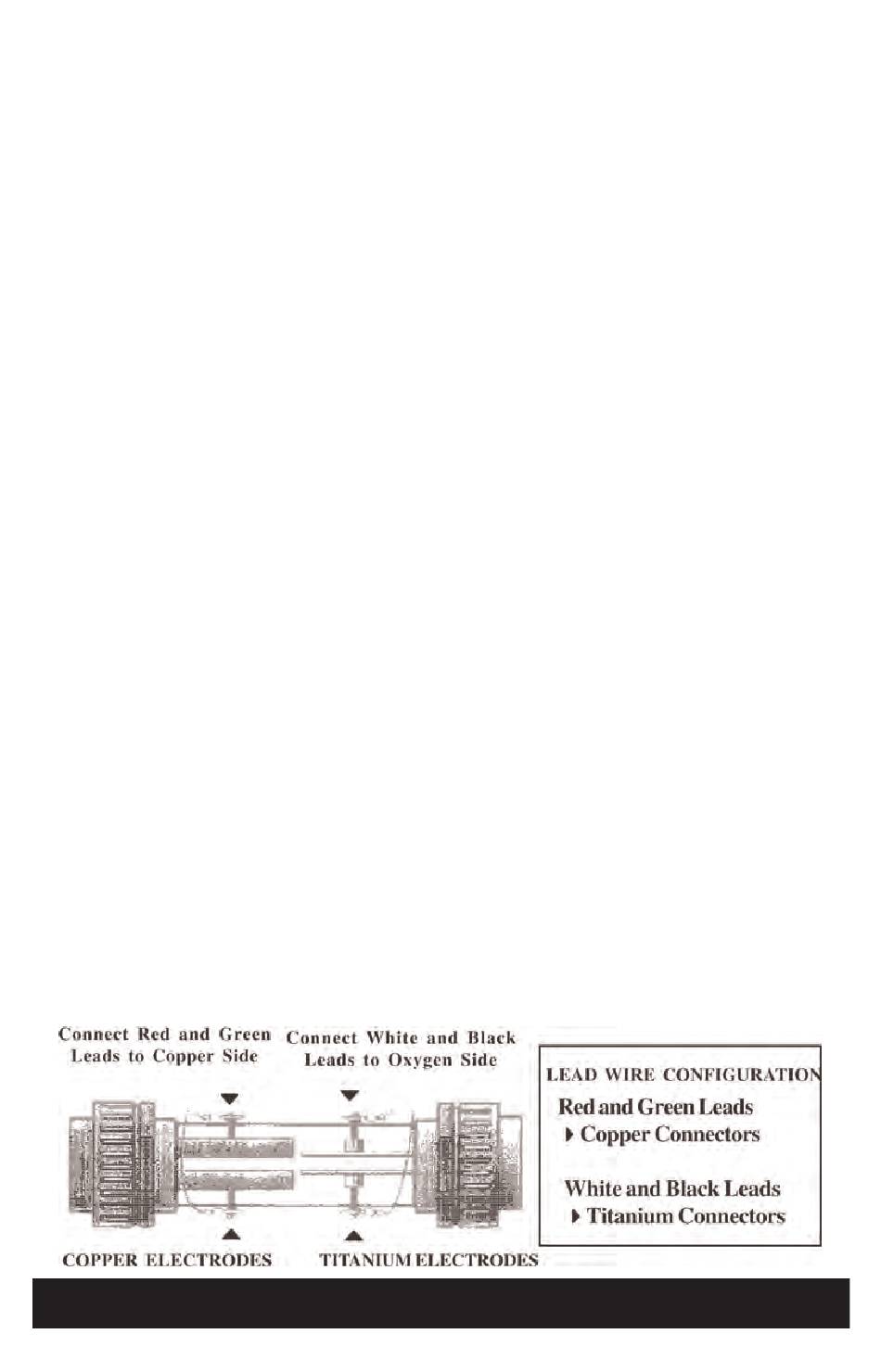

filter system. Connect the output leads to the Electrode Chamber (white
and black to the titanium, red and green to the copper; see diagram
below). Plug the electrical cord into a 110 volt A/C outlet. Although this
method is the simplest installation, it will require someone to turn the
Electronic Box on and off when the pump is turned on and off, so that the
Electronic Control Box is never on without the water recirculating. An out-
door timer (synchronized to the pump timer) may be installed between
the Electronic Control Box plug and the electrical outlet if desired to solve
this problem and ensure proper operation of the System. ECOsmarte has
110V outdoor timers available as do most pool stores and Home
Improvement Centers.
INSTALLATION METHOD #2
If you have an existing pump timer (220V), then the Electronic Control
Box can plug into an outdoor timer (110V) which is set in tandem with
your pump timer. Set the ECOsmarte box 15 minutes less time than the
pump. This method of installation will ensure proper operation and timing
of the Electronic Control Box with the pump cycle. If the ECOsmarte
Electronic Control Box is wired according to method #2 then someone
will still need to switch the control setting on the Box to ionize when cop-
per measurements indicate a need for copper ions. Follow local codes on
all electrical wiring. (Three wire 220V systems may need upgrade to four
wire to meet code.)
SEE IMPORTANT SAFETY ISSUES ON PAGE 28
