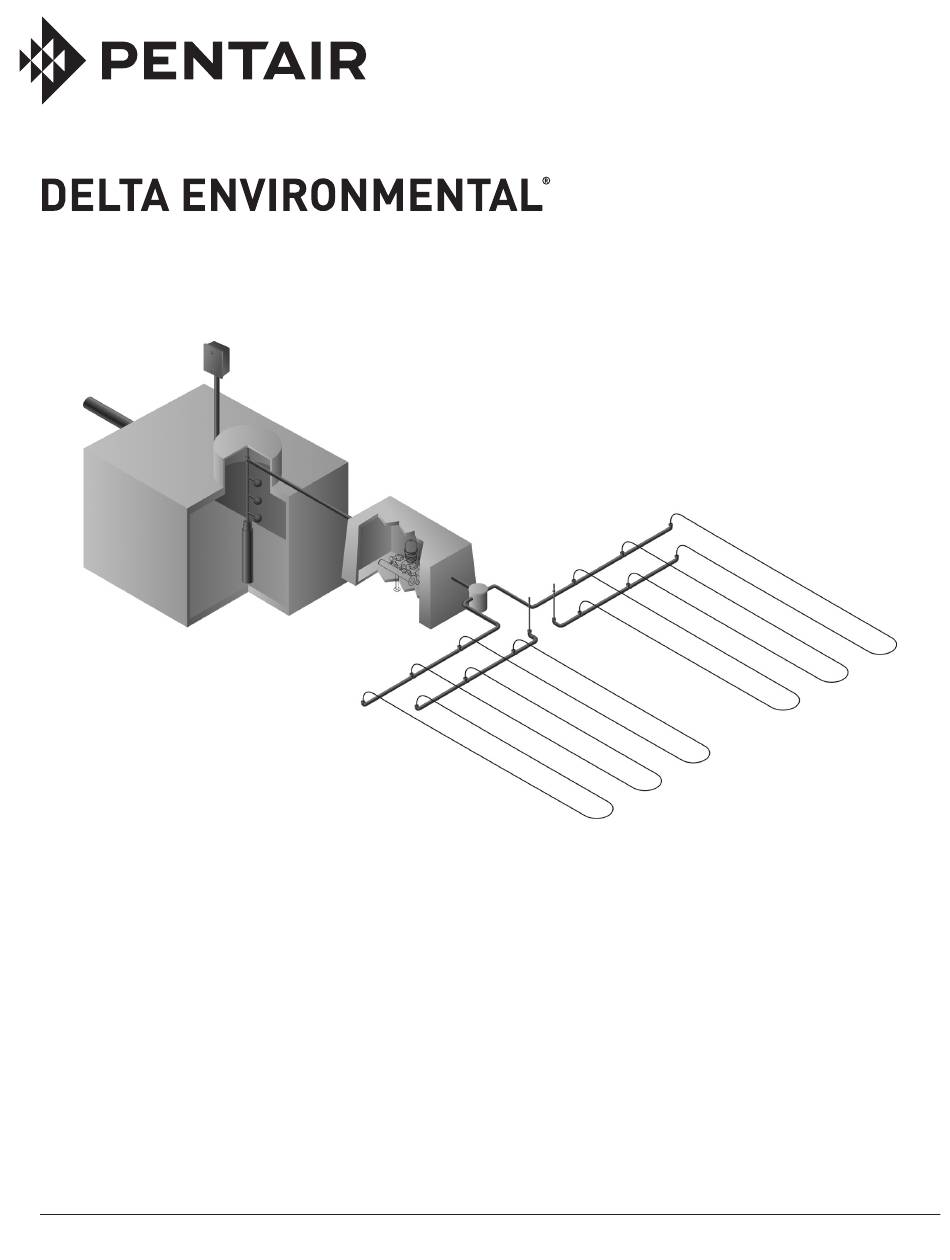

- Page 1 CARE AND OPERATION MANUAL NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Part # K4514 | © 2012 Pentair Pump Group, Ltd. | 11/15/12...
- Page 2 DISTRIBUTOR AND HOMEOWNER NOTES The Delta Environmental ECODRIP Filter/Drip System is designed to filter effluent water discharged from an aerobic treatment plant that is listed by the National Sanitation Foundation (NSF) in accordance with NSF/ANSI Standards 40 or 245, Class 1 effluent requirements. All of the Delta Environmental aerobic treatment plants are listed by NSF in accordance with ANSI/NSF Standard 40 at a minimum, Class 1 and make a perfect combination when used with the ECODRIP Filter/Drip System and drip line designed for Class 1 ffluent water.
- Page 3 CARE AND OPERATION INSTRUCTIONS One revolution of the water meter is 10 gallons. If no flow has been observed, call your local dealer for service. The ECODRIP System has been designed and built to provide CAUTION: EXCESSIVE MANUAL OVERRIDE MAY CAUSE WATER long term, reliable and efficient service.
- Page 4 The control panel contains a programmable logic controller (PLC) An absorption field installed on slopes should be carefully that periodically turns the pump, located inside the dose tank, on designed to take into consideration elevation changes and emitter and off. The pump moves water from the dose tank to the filter line placement due to gravitational pressures.
- Page 5 DRIP SYSTEM DESIGN Project : _________________________________ Date: ____________________________________ Owner: __________________________________ Phone: ___________________________________ Location: ________________________________ County: __________________________________ Soil type: ________________________________ Soil Texture: _______________________________ Soil Group: _______________________________ Depth for Optimum Use: ______________________ Soil Loading Rate: __________________________ Projected Daily Flow: _________________________ Disposal Area Size __________ GPD ÷ __________ Loading Rate = _________ Sq. Ft. Total Drip Line (2' Lateral Space) _________ Sq Ft ÷...
- Page 6 SIZE OF THE ABSORPTION FIELD to the emitter supply manifold should be as indicated on drawing to reduce the friction loss to a minimum and keep the velocity above 2 feet per second. Each zone must not The total size of the absorption area depends on the daily have more than indicated on Table 1.
- Page 7 FILTER SYSTEM SPECIFICATIONS MODEL 8115-1/2HP WITH GEOFLOW CLASSIC MODEL 8230-1HP WITH GEOFLOW CLASSIC ® ® Operating Perameters Operating Perameters Motor/pump size 1/2 HP (standard) Motor/pump size 1 HP (standard) Pressure at outlet of regulator 20-PSI nominal Pressure at outlet of regulator 20-PSI nominal Maximum particle size 100 microns...
-
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS standard receptacle can be replaced with a GFCI receptacle. GFCI breakers and receptacles can be obtained from most stores that sell electrical supplies. 11. The wire from the filter system to the control panel if direct Prepare an excavation with an opening approximately one buried MUST BE TYPE UF rated for underground service. - Page 9 22. Maximum lateral length, for standard zones are as indicated leave slack at supply and return manifold. Connect drip in Table 1, consult Delta Environmental for alternative zones. lines to sub-main and flush manifolds. Flush again. Run the system before covering and check for leaks. 23.
- Page 10 CAPACITY OF ROUND TANKS Per Foot of Depth Diameter Gallons Area Sq. Ft. Diameter Gallons Area Sq. Ft. 23.50 3.14 211.51 28.27 2' 6" 36.72 4.909 6' 6" 248.23 35.18 52.88 7.069 287.88 38.48 3' 6" 71.97 9.621 7' 6" 330.48 44.18 94.00...
-
Page 11: General Description Of Operation
GENERAL DESCRIPTION OF DESCRIPTION OF CONTROL FLOATS OPERATION Float FS1 is a wide angle float that when up, permits the pump to run and when down, keeps the pump from running Upon power up at panel there is a 2 minute time delay before and pumping dry. - Page 12 ELECTRICAL COMPONENT INFORMATION & DRAWINGS Other drip systems and panels are available that have multiple circuit feeds, utilize solenoid field dosing valves and have dual filters. Contact Delta Environmental. Upon power up the clock screen may not be displayed. The clock Setting the PLC screen is considered the “main”...
-
Page 13: Plc Parameters
PLC PARAMETERS Block Description Factory Setting PLC Nomenclature T = Run time 12 minutes 12:00 m TL = Off time 2 hours 02:00 h Off time during override period 1 hour 01:00 h FIlter flush time after pump turns on 1 minute 01:00 m Filter drain time after pump turns off... -
Page 32: Limited Warranty
LIMITED WARRANTY Delta Environmental warrants the parts in each treatment system for a limited two year period. All warranty questions shall be resolved through Delta Environmental. The warranty on the treatment device is that the device is free from defects in material and workmanship from the date of installation treating household wastewater. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply.
