Chapter 2 – Installation and Cabling
Attaching the MultiConnect WF to a Fixed
Location
The MultiConnect WF is design to be used on the desktop or to be panel-mounted. To attach the bracket
for panel-mounting, following these steps:
1.

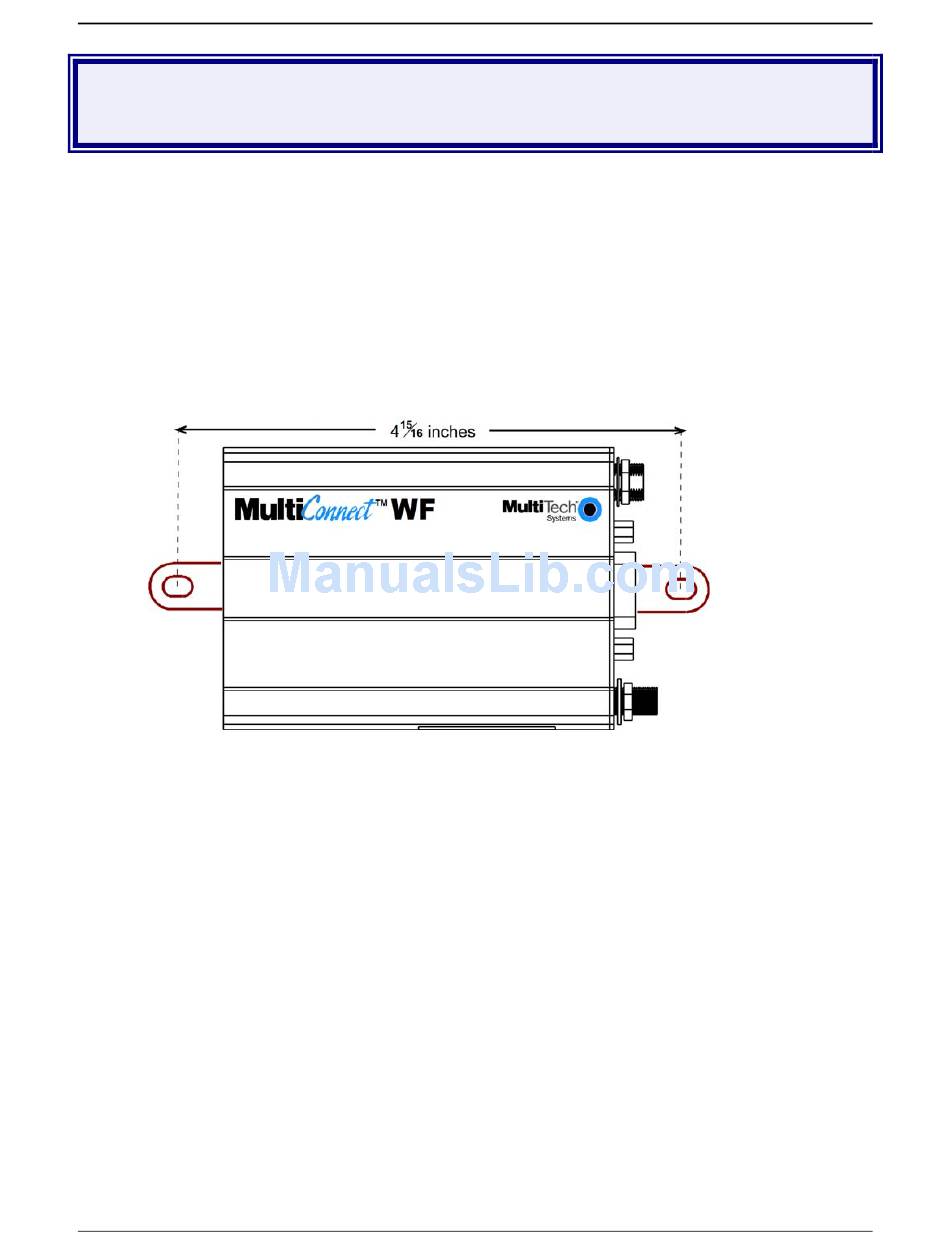

Typically, it is mounted against a flat surface with two mounting screws. Drill the mounting holes
at the desired location. The mounting holes must be separated by 4 -15/16 inches center-to-
center.
2.
To attach the mounting bracket, slide it into the corresponding slot on the back of the
MultiConnect chassis.
3.
Attach the adapter to the surface with two screws.
Multi-Tech Systems, Inc. MultiConnect WF User Guide (S000447A)
