Chapter 2 – Installation and Cabling
Attaching the MultiConnect Adapter to a Fixed
Location
The Serial-to-Bluetooth Adapter is design to be used on the desktop or to be panel-mounted. To attach
the bracket for panel-mounting, following these steps:
1.

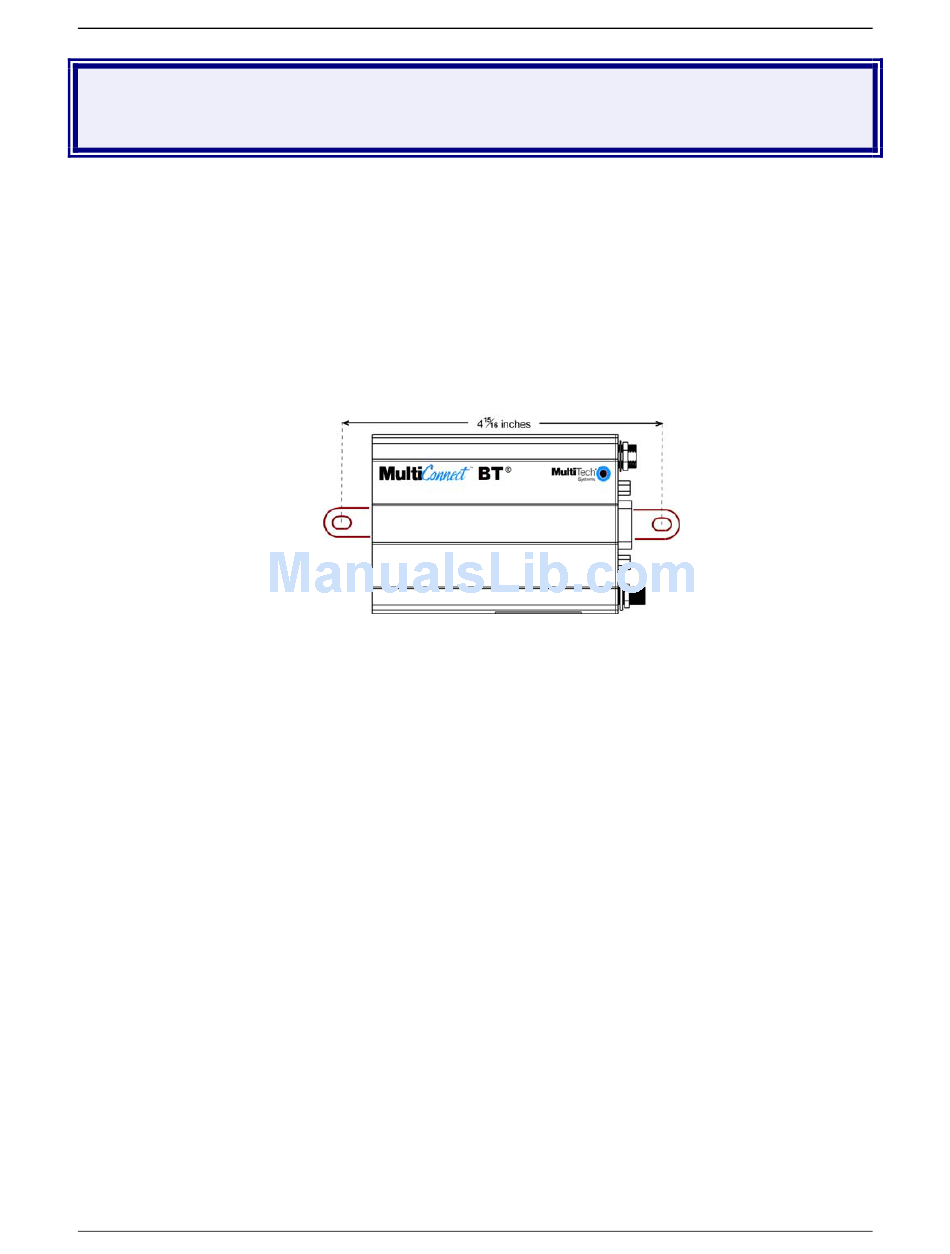

Typically, the adapter is mounted against a flat surface with two mounting screws. Drill the
mounting holes at the desired location. The mounting holes must be separated by 4 -15/16
inches center-to-center.
2.
To attach the mounting bracket, slide it into the corresponding slot on the back of the
MultiConnect chassis.
3.
Attach the adapter to the surface with two screws.
Multi-Tech Systems, Inc. Serial-to-Bluetooth Adapter User Guide (S000370B)
