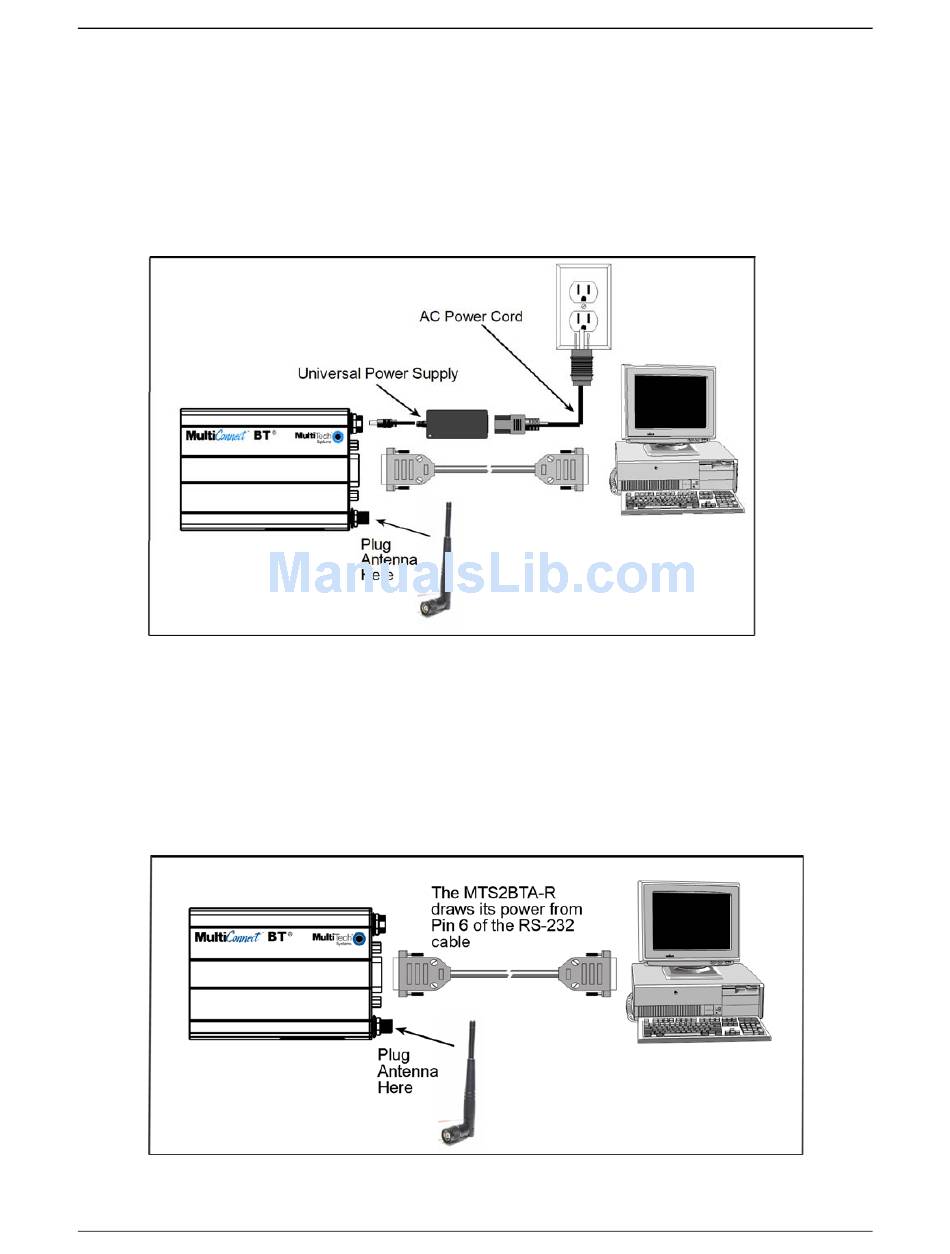

Making the Connections
Directions for the MTS2BTA (Externally Powered)
Turn off your PC. Place the adapter in a convenient location. Connect it to your PC's serial port
and plug in the power.
Directions for the MTS2BTA-R (Powered through Pin 6
of an RS-232 Cable)
Turn off your PC. Place the adapter in a convenient location. Then connect it to your PC's serial
port. The MTS2BT-R draws its power from the RS-232 cable's Pin 6.
Multi-Tech Systems, Inc. Serial-to-Bluetooth Adapter User Guide (S000370B)
Chapter 2 – Installation and Cabling
10
