Parameters - GE ecomagination Profibus DP AF-650 GP Instruction Manual

• K-40 [Hand] Button on Keypad. If the Hand button on the adjustable frequency drive is activated, control of the drive via the PROFIBUS interface is
disabled.
• After an initial power-up, the adjustable frequency drive will automatically detect whether a network option is installed in slot A, and set O-02 Control
Word Source to [Option A]. If an option is added or changed in or removed from an already commissioned drive, it will not change O-02 Control Word
Source but enter trip mode, and the drive will display an error.
• O-10 Control Word Profile. Choose between the GE Drive Profile and the PROFIdrive profile
• O-50 Coasting Select to O-56 Preset Reference Select. Selection of how to gate PROFIBUS control commands with digital input command of the
control module.
NOTE
When O-01 Control Site is set to [2] Control word only, then the settings in O-50 Coasting Select to O-56 Preset Reference Select will be overruled, and all act
on bus control.
• O-03 Control Word Time-out Time to O-05 End-of-Time-out Function. The reaction in the event of a network time out is set via these parameters
• PB-18 Node Address
• O-07 Diagnosis Trigger

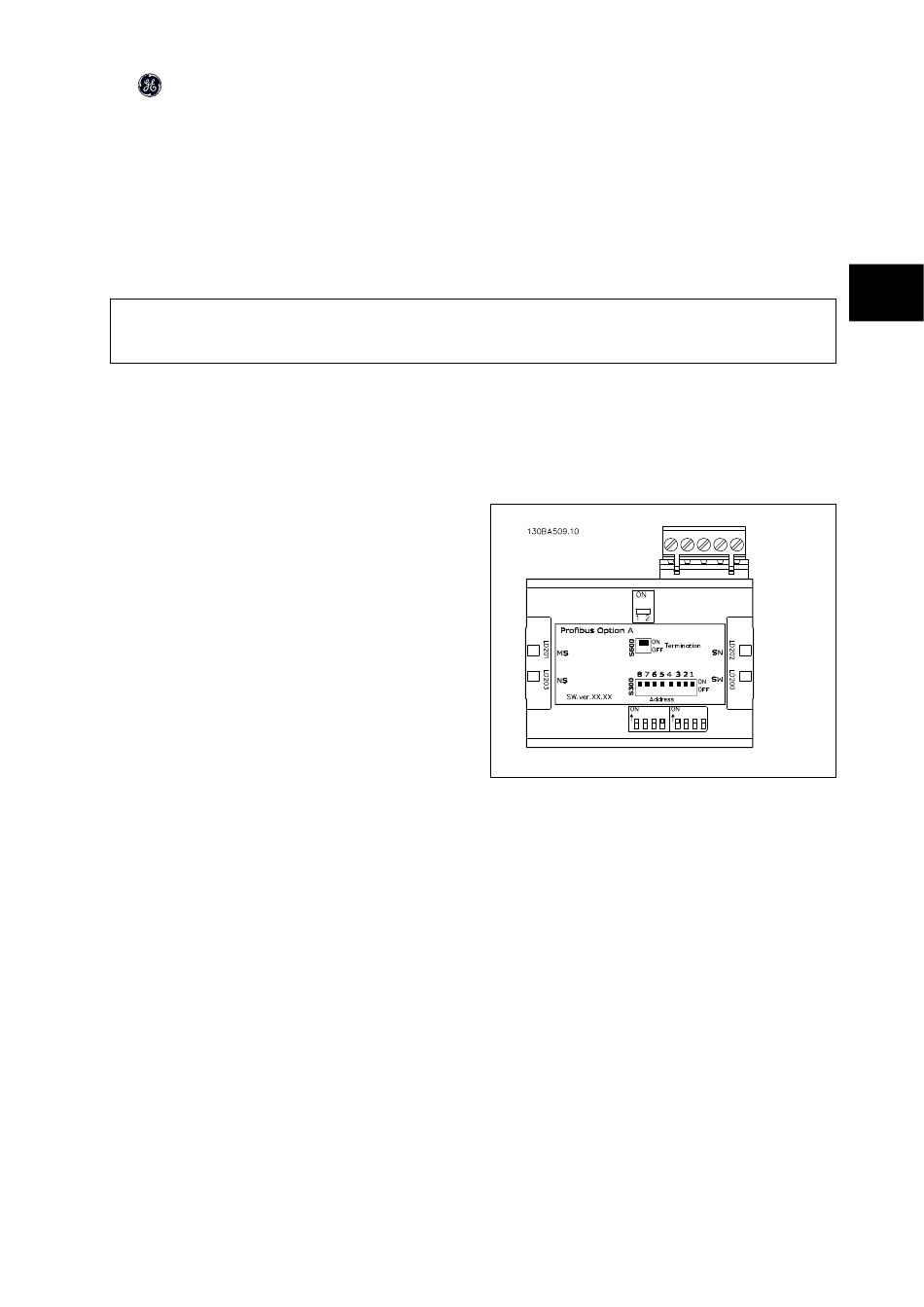

3.3.2 LEDs
The two bi-color LEDs in the PROFIBUS module indicate the status of PROFI-
BUS communication
The LED marked NS indicates the network status, i.e., the cyclical communi-
cation to the PROFIBUS master. When this light shows constant green, then
data exchange between the master and the adjustable frequency drive is
active.
The LED marked MS indicates the module status, i.e., acyclical DP V1 com-
munication from either a PROFIBUS master class 1 (PLC) or a master class 2
(DCT-10). When this light shows constant green, then DP V1 communication
from master classes 1 and 2 is active.
For details of the full range of communications status indicated by the
LEDs, please refer to the Troubleshooting chapter.
