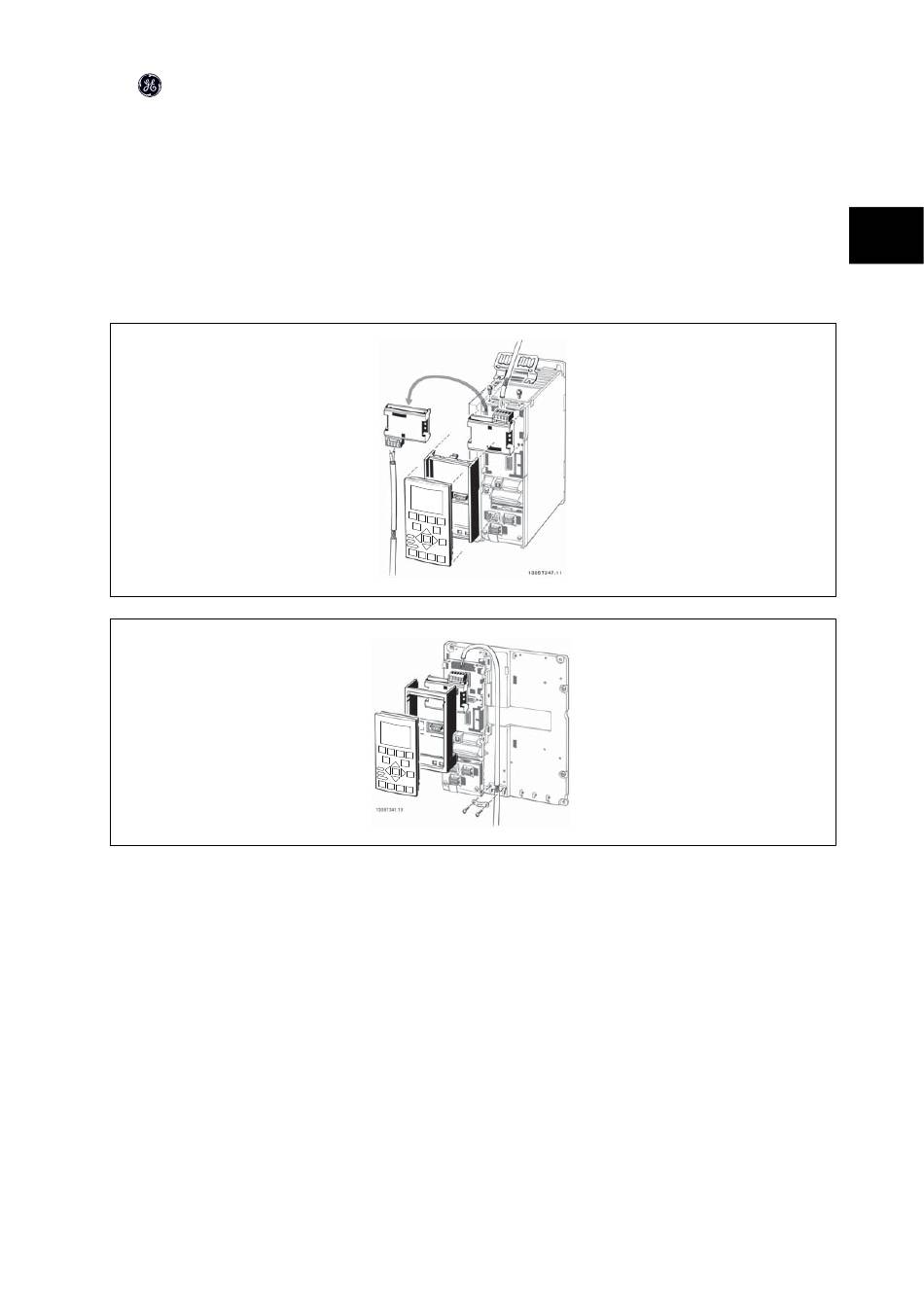

2.2 How to Install the Profibus DP Communications Module in Drive
To install the module in the drive you will need:
- The Profibus DP Communications Module (OPCPDP)
- Network option adaptor frame for the AF-6 Series drives.. This frame is deeper than the standard frame, to allow space for the network option be-
neath
- Cable holders
Instructions:
- Remove the keypad from the adjustable frequency drive
- Remove the frame located beneath and discard
- Push the module into place. Two positions are possible, with cable terminal facing either up or down. The cable up position is often most suitable
when several adjustable frequency drives are installed side by side in a rack, as this position permits shorter cable lengths
- Push the network option adaptor frame into place
- Replace the keypad. - Attach cable
- Fasten the cable in place using cable holders
- The AF-6 Series Drives top surfaces have pre-bored threaded holes for attaching the cable holders to the unit
