Features of DCT 10 Drive Control Tool software:
• Project-oriented PC tool, one tool for all AF-6 Series Drives
1
• Links to all Windows applications possible
• Supports Siemens CPs 5511 (PCMCIA) and 5611 (PCI card), for PROFIBUS DP V1 Master Class 2 connection
• Support of standard interfaces: COMx, USB, RS232 (FLUX)
• Siemens PG / Field PGs already have the necessary hardware
• View is highly configurable

1.6 Technical Overview

1.6.1 Network Topology

Single master
- PLC communicates with messages of constant length
- Fits time-critical requirements
- Cyclical transmission via PPO types
- Extended diagnostics
1-4
AF-650 GP/AF-600 FP Profibus DP Instruction Manual

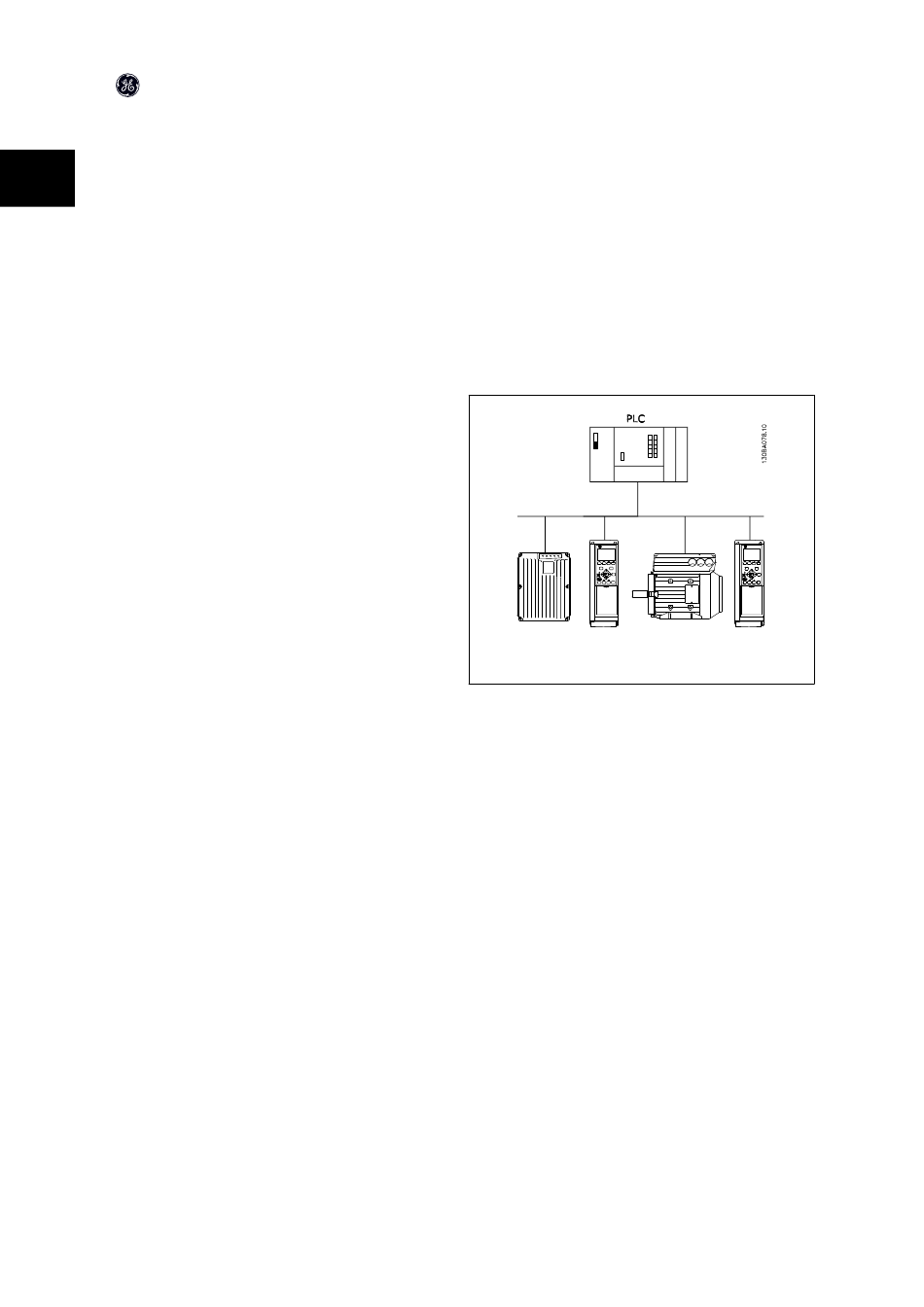

1.1: PROFIBUS DP V0
