Multitech CommPlete 4000 Quick Start Manual page 17

12. Click Continue.
13. When the Installing Multi-Tech WINMCSI dialog box appears, click Install.

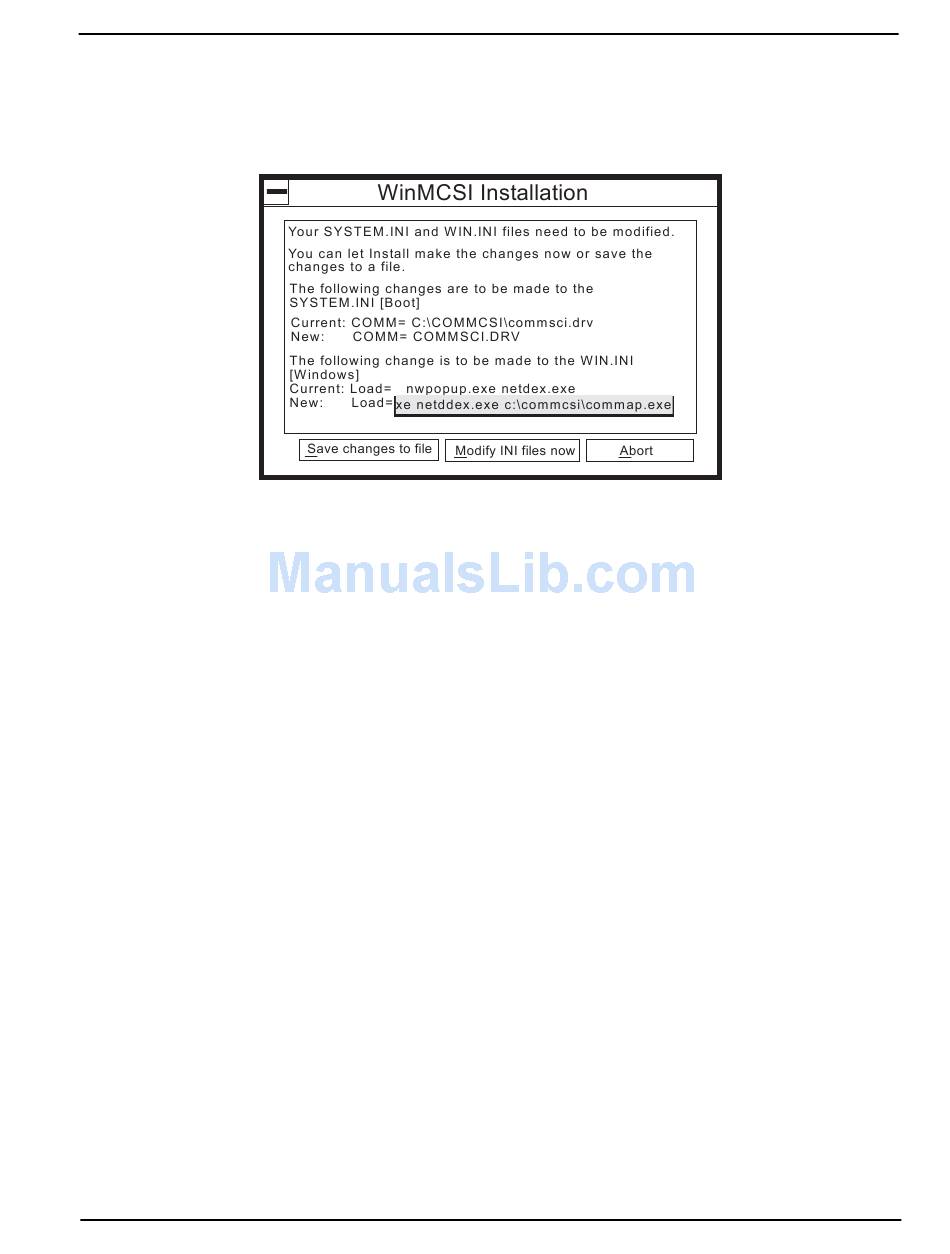

14. When installation is complete, the WINMCSI Installation dialog box appears.
15. Click Modify INI Files Now to have WINMCSI make changes to your SYSTEM.INI and
WIN.INI files.
Click Save Changes to File to have WINMCSI make a copy of the changes to be made and
store them in a file. You must make the changes yourself before you can run WINMCSI.
A screen appears later that tells you your installation is complete, and where your WIN.INI and
SYSTEM.INI files are backed up. If IP was selected in the WINMCSI Install Configuration
dialog box, the screen also asks if you want to set up the IP server list. Answer appropriately.
16. The following message appears:
Answer appropriately.
17. The following message appears:
Click Yes if you want to map your COM Ports now, and go to step 18.
Click No if you want to map your COM Ports when you start WINMCSI, then go to step 19.
18. The COM Port to MCSI Mapping window appears.
•
If you want the first available line, click Map, then click Close, and go to the next
section.
•
If you want a specific line, select a COM port in the Local Port list, then select the line
to which you want to map the COM port. The status message Mapped to MCSI
should appear above the Local Port list.
•
Click Unmap if you want to unmap a line.
•
Click Search to search for lines on a server.
•
Click Close when finished.
19. The following message appears:
20. A message appears that tells you where your old SYSTEM.INI and WIN.INI files have been
backed up. It also tells you to restart Windows. Click Restart Windows.
CommPlete 4000 Communications Server Quick Start Guide
with the default IP router matched with the local IP address of the RASExpress server.
Do you want to login to Multi-Tech Asynchronous Communication
server when WINDOWS comes up?
Do you want to Map now?
Note: If a serial mouse is connected to COM1, you must select a different local port.
WINMCSI Successfully installed. Click OK.
WINMCSI Workstation Redirector
17
