  • Page 2 All manuals and user guides at all-guides.com Quick Start Guide Model ISI5634PCI/4/8 P/N 82092804, Revision E Record of Revisions Revision Description Updated for digital signature, and info on MTS patents, (6/1/01) Win 200/Me, and Novell Netware, and regulatory matters. Add V.92 Protocol information. (5/23/02) Minor editorial comments incorporated.
  • Page 3 All manuals and user guides at all-guides.com Contents Chapter 1—Introduction and Description ......5 Chapter 2—Hardware Installation ........11 Chapter 3 — Driver Installation ...........17...
  • Page 4 All manuals and user guides at all-guides.com Chapter 4—Warranty, Service, and Tech Support .....63...
  • Page 5 All manuals and user guides at all-guides.com Chapter 1—Introduction and Description...

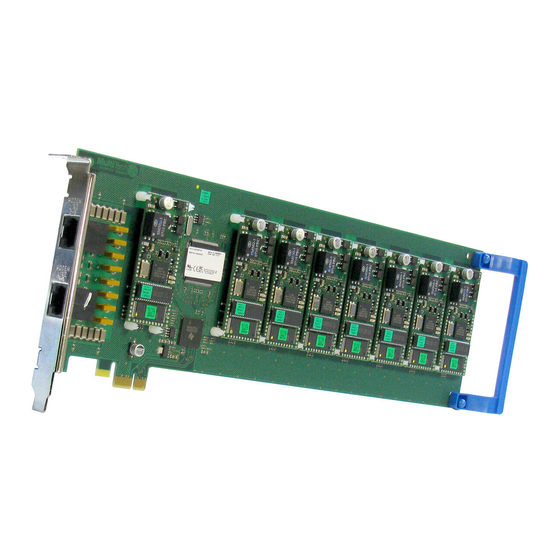

  • Page 6 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Introduction ISI5634PCI Modems...
  • Page 7 All manuals and user guides at all-guides.com Chapter 1—Introduction and Description IntelligentSerialInterface...
  • Page 8 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide How to Use This Manual ISI5634PCI Applications What Is in Your Modem Package?
  • Page 9 All manuals and user guides at all-guides.com Chapter 1—Introduction and Description...
  • Page 10 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Technical Specifications Computer Requirements Physical/Electrical/Environmental...
  • Page 11 All manuals and user guides at all-guides.com Chapter 2—Hardware Installation...
  • Page 12 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Introduction Safety Warnings Telecom Hardware Installation Procedures Installing the ISI5634PCI card WITHOUT the auxiliary module:...
  • Page 13 All manuals and user guides at all-guides.com Chapter 2—Hardware Installation...
  • Page 14 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Installing the ISI5634PCI card WITH the auxiliary module:...
  • Page 15 All manuals and user guides at all-guides.com Chapter 2—Hardware Installation...
  • Page 16 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide...
  • Page 17 All manuals and user guides at all-guides.com Chapter 3 — Driver Installation...
  • Page 18 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Introduction E:\servcard\drivers\win2000\ Windows 2000: Driver Installation...
  • Page 19 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Windows 2000...
  • Page 20 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide...
  • Page 21 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Windows 2000...
  • Page 22 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Windows 2000: Installing Modems to COM Ports...
  • Page 23 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Windows 2000...
  • Page 24 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide...
  • Page 25 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Windows 2000 Windows 2000: Removing ISI5634PCI Driver...
  • Page 26 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Windows 2000: Installing ISI Management Software (server OSs only)
  • Page 27 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Windows NT Windows NT: Driver Installation...
  • Page 28 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide...
  • Page 29 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Windows NT Windows NT: Installing Modems to COM Ports...
  • Page 30 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide...
  • Page 31 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Windows NT...
  • Page 32 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Windows NT: Removing ISI5634PCI Driver...
  • Page 33 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Windows 95/98/Me Windows 95/98/Me: Driver Installation...
  • Page 34 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide...
  • Page 35 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Windows 95/98/Me Windows 95/98/Me: Installing Modems to COM Ports...
  • Page 36 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide...
  • Page 37 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Windows 95/98/Me Windows 95/98/Me: Removing ISI5634PCI Driver...
  • Page 38 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide NetWare Driver Installation COPY E:\SERVCARD\DRIVERS\NOVELL\AIOSIX.NLM F:\SYSTEM COPY A:\NOVELL\AIOISIX.NLM F:\SYSTEM LOAD AIOISIX...
  • Page 39 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Novell Configuring Ports for NetWare Connect Removing the Driver (Novell)
  • Page 40 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide SCO Open Server 5 Driver Installation # mount -r /dev/cd0 /mnt # cd /mnt # cd servcard/drivers/sco50x #cp sco50x.tar / # cd To format a floppy disk for SCO5: To untar the driver file and copy files onto floppy disk: # mkdir /isi...
  • Page 41 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - SCO Open Server 5 # cp sco50x.tar /isi # cd /isi # tar xvf sco50x.tar # cd /isi/unifiedinstimg301 #scosh # scosh...
  • Page 42 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide To install driver from floppy disk...
  • Page 43 MultiTech’s serial cards, pseudo devices have to be created in your /dev directory. These devices are system-wide resources. Enter the number of pseudo-devices to be created for the use of Multi_View utility (1 - 256).
  • Page 44 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide This script also creates the devices in your system to communicate with the ports of ISICOM. The default prefix for the tty ports is ttyl. The default prefix for the printer is prnl.
  • Page 45 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - SCO Open Server 5 You have chosen the following setup The tty prefix is ttyl. The printer prefix is prnl. Number of Multi_View pseudo devices [ user-specified number ]. Press <Enter>...
  • Page 46 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide init 6 usr/lib/uucp/Devices ttylbx ttyl2A ACU ttylbX - 9600 dialer name b, X dialer-name enable ttylbx...
  • Page 47 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - SCO Open Server 5 ttyl1a ttyl1A disable ttyl1a enable ttyl1A...
  • Page 48 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Linux Driver for ISI5634PCI-4/8 LINUX: Pre-Installation Issues LINUX: Copying the driver from the media LINUX: Copying and untarring the driver from CD-ROM mount -r /dev/cdrom cd /mnt/cdrom...
  • Page 49 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Linux tar vxf /tmp LINUX: Copying and untarring the driver from a floppy Steps for copying the driver from a floppy: mount -t ext2 /dev/fd0 /mnt/floppy mkdir /isi cd /isi cp /mnt/floppy/kernel_2.2.x/* /isi tar xvf isilinux.tar...
  • Page 50 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide LINUX: Driver installation and loading cd /isi /Install cat/proc/ioports cat /proc/interrupts insmod isicom io=card1, ... card4 irq=card1, ... card4...
  • Page 51 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Linux LINUX: Setting the baud rate stty 38400 < /dev/ttyM1a stty < /dev/ ttyM1a LINUX: Verifying the ports /dev/ttyM1a minicom 1a LINUX: TTY Devices Created by the Drivers: ttyMxy cumxy ttyM ttyMxy...
  • Page 52 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide - /dev/ttyM1a TO /dev/ttyM1d - /dev/ttyM2a TO /dev/ttyM2d - /dev/ttyM3a TO /dev/ttyM3d - /dev/ttyM4a TO /dev/ttyM4d - /dev/ttyM1a /dev/ttyM1h - /dev/ttyM2a TO /dev/ttyM2h - /dev/ttyM3a TO /dev/ttyM3h - /dev/ttyM4a TO /dev/ttyM4h Devices mapped for modem cards (ISI5634PCI-4 and ISI5634PCI-8 cards): - /dev/ttyM1a...
  • Page 53 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Linux LINUX -- PPP setup: Miscellaneous: ttyMxy cumxy ttyM cat /proc/ioports cat /proc/interrupts insmod insmod isicom ISIBase1=0x210 Irq1=5 ISIBase2=0x200 Irq2=10 rmmod isicom...
  • Page 54 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Removing the ISI Driver (Linux) cd /usr/local rm -r ISICOM rm isictl rm ttyM1 rm ttyM2 rm ttyM3 rm ttyM4...
  • Page 55 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - RedHat Linux RedHat Linux 6.2/7.0 RPM Drivers for ISI5634PCI-4/8 Server Cards LINUX-RPM: Pre-Installation Issues LINUX-RPM: Copying the driver from the media LINUX-RPM: Copying the driver from CD-ROM mount -r /dev/cdrom /mnt/cdrom cd /mnt/cdrom LINUX-RPM: Copying the driver from a floppy...
  • Page 56 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide mcopy a:isicom-1.1-3.src.rpm <destination folder> mcopy a:isicom-1.2-3.src.rpm <destination folder> Steps for copying the driver from a floppy: mount -t ext2 /dev/fd0 /mnt/floppy mkdir /isi cd /isi mv isicom.o isicom.original...
  • Page 57 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - RedHat Linux rpm -i /isi/isicom-1.1-3.src.rpm rpm -ba /usr/src/redhat/SPECS/isicom- smp.spec rpm -ihv /usr/src/redhat/RPMS/i386/isicom- 1.1-3.i386.rpm init 6 rpm -i /isi/isicom-1.2-3.src.rpm rpm -ba /usr/src/redhat/SPECS/isicom- rh7.spec rpm -ihv --force /usr/src/redhat/RPMS/ i386/isicom-1.2-3.i386.rpm init 6 LINUX-RPM: Verifying the ports minicom -s...
  • Page 58 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide LINUX-RPM: TTY Devices Created by the Drivers /dev ttyMxy ttyM ttyMxy - /dev/ttyM1a /dev/ttyM1p - /dev/ttyM2a /dev/ttyM2p - /dev/ttyM3a /dev/ttyM3p - /dev/ttyM4a /dev/ttyM4p - /dev/ttyM1a /dev/ttyM1d - /dev/ttyM2a /dev/ttyM2d - /dev/ttyM3a /dev/ttyM3d - /dev/ttyM4a...
  • Page 59 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - RedHat Linux LINUX-RPM -- Dial-in configuration: M2c:12345:respawn:/sbin/mgetty ttyM2c /dev/ ttyM2c init q M2c:12345:off:/sbin/mgetty ttyM2c LINUX-RPM -- PPP setup: Removing the ISI Driver (Linux-RPM) rpm -e isicom rpm -e filename...
  • Page 60 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Comm Software Using AT Commands...
  • Page 61 All manuals and user guides at all-guides.com Chapter 3—Driver Installation - Comm Software...
  • Page 62 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide...
  • Page 63 All manuals and user guides at all-guides.com Chapter 4—Warranty, Service, and Tech Support...
  • Page 64 All manuals and user guides at all-guides.com ISI5634PCI/4/8 Quick Start Guide Limited Warranty...
  • Page 65 All manuals and user guides at all-guides.com Chapter 4—Warranty, Service, and Tech Support...
  • Page 66 All manuals and user guides at all-guides.com 82092804...
